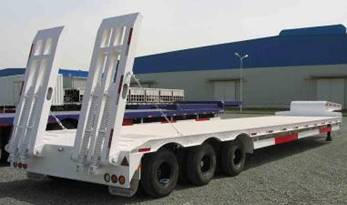

3 Axles Lowbed Semi Trailer

Sinotruk 3 axles lowbed semi trailer for heavy duty & special transports. Removable gooseneck and length-optimised loading platform and the low loading height can meet your needs.

Quantity:
  • Sinotruk
                                               3 Axles Lowbed Semi Trailer
Tare  Weight11500kg
Overall  Length11700mm
Overall  Width2480mm
Payload50000kg
Work deck length8000mm
Work deck Height1100mm
SPECIFICATIONS


I Beam & Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc

processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm.


Axle

3 axles
BPW/ FUWA/HJ/L1 Brand 12 ton
SuspensionHeavy duty mechanical slung suspension
Floor3mm checker plate
Leaf Spring8 piece Leaf spring
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim8.25-22.5 wheel rim  13 pieces
Tire 11R22.5 tire with one spare tire , 13 pieces
RampMechanical ramp with spring
Spare TireOne set of spare tire including a carrier
Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber;

45L air tanks

PaintingComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts beam, axle, landing gear or within 100000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
