HOWO 4X2 Flatbed Recovery Wrecker Truck
You are here: Home » Products » Special Truck » Wrecker truck » HOWO 4X2 Flatbed Recovery Wrecker Truck
Share to:

HOWO 4X2 Flatbed Recovery Wrecker Truck

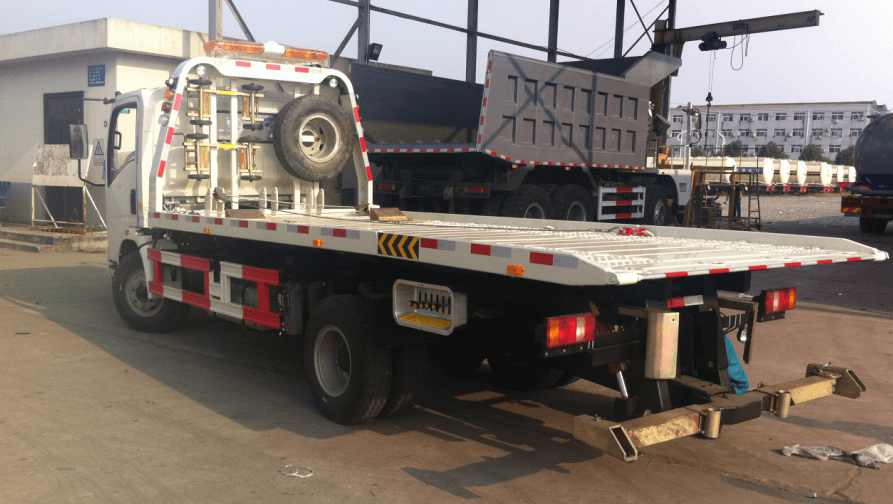

HOWO 4X2 flatbed recovery light wrecker truck can carry one broken truck on the platform and hauling one broken car in the rear. The load capacity of the flat mechanism is 3 tons.

Quantity:
  • Sinotruk howo

                                                    HOWO 4X2 Flatbed Recovery Wrecker Truck

Cabin

Driving type 4x2  LHD

2080 cabin with two seats, for 3 passengers, with air condition,

Without small bed. 70°tillable to the front



Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

7500×2400×2700

Wheel base  (mm)

3800

Wheel track  (front/rear) (mm)

1600/1535

Approach/Departure angle(°)

18/18

Weight in KGS

Tare Weight

4000

Payload

6000

Front axles loading capacity

1x2500

Rear axles loading capacity

1x7500

Max. driving speed(km/h)

                                                                              90




Engine

Brand

YUNNEI, Chinese brand

Type

4 cylinder in line, Turbocharged and Inter

cooled

Model

4102

Horse Power  (HP)

116

Emission standard

Euro Ⅱ

Gearbox

WLY6T46 gearbox, 6-speed Forwards gear & 1 reverse gear, manual

Tire

7.50R16 steel radial tire, 7 pcs including one spare tire

Others

With power steering, clutch booster




Lifting System

Max lifting weight: 1800kg
Full extension of the max lifting weight: 1330kg
Rear lifting distance: 2540mm
Effective length of the arm: 1640mm
Telescopic arm stroke: 1340mm
Lower inclination angle:  7°
Upper inclination angle: -9.5°
Maximum distance from the full retracting cross arm upper surface to the ground: 550mm

Platform

Inner length: 5550mm
Inner width: 2220
Minimum Tilt angle: 8°
Platform working stroke:  2700 mm
Platform height from the ground: 1070mm

Maximum load capacity of the flat mechanism: 3000 kg






Winch

Quantity: 1 pcs
Rated traction: 40kN
Wire rope diameter: φ11mm
Wire rope length:25m
Winch diameter: φ110mm

Wire rope min line speed: 5 m/min


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
