HOWO 4X2 Truck with XCMG 3.2T Crane
You are here: Home » Products » Special Truck » Crane truck » HOWO 4X2 Truck with XCMG 3.2T Crane
Share to:

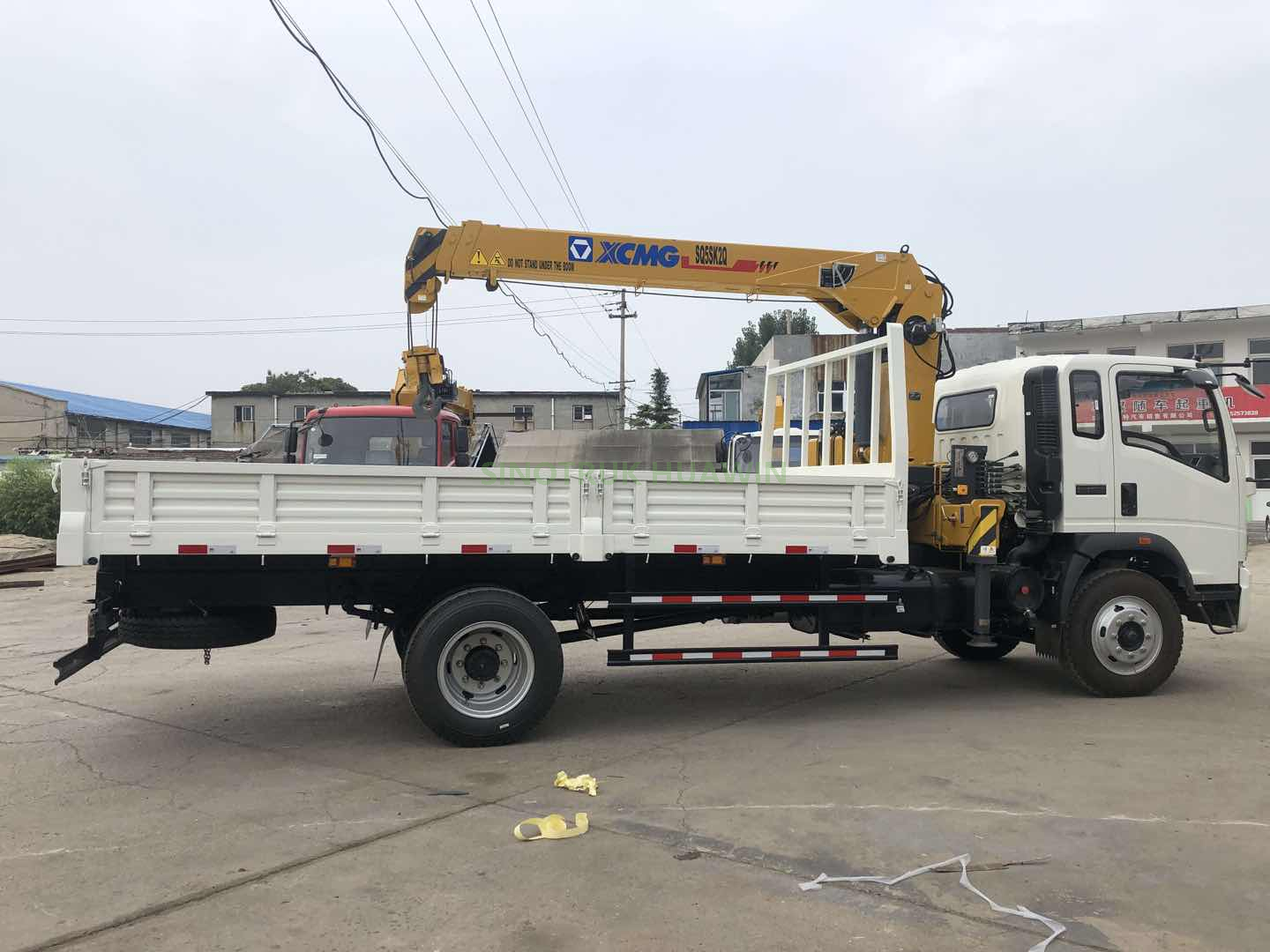

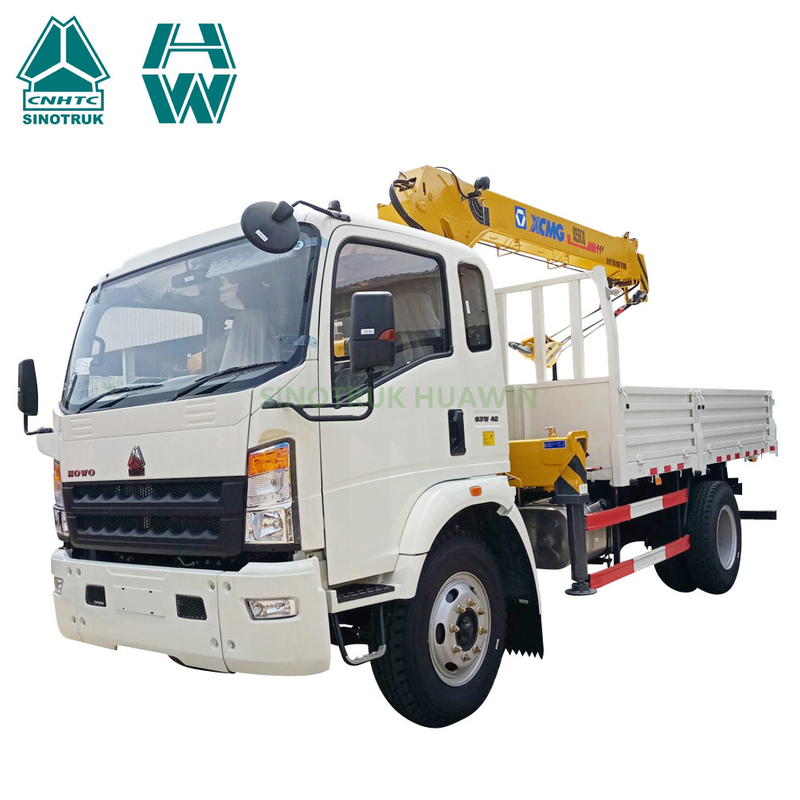

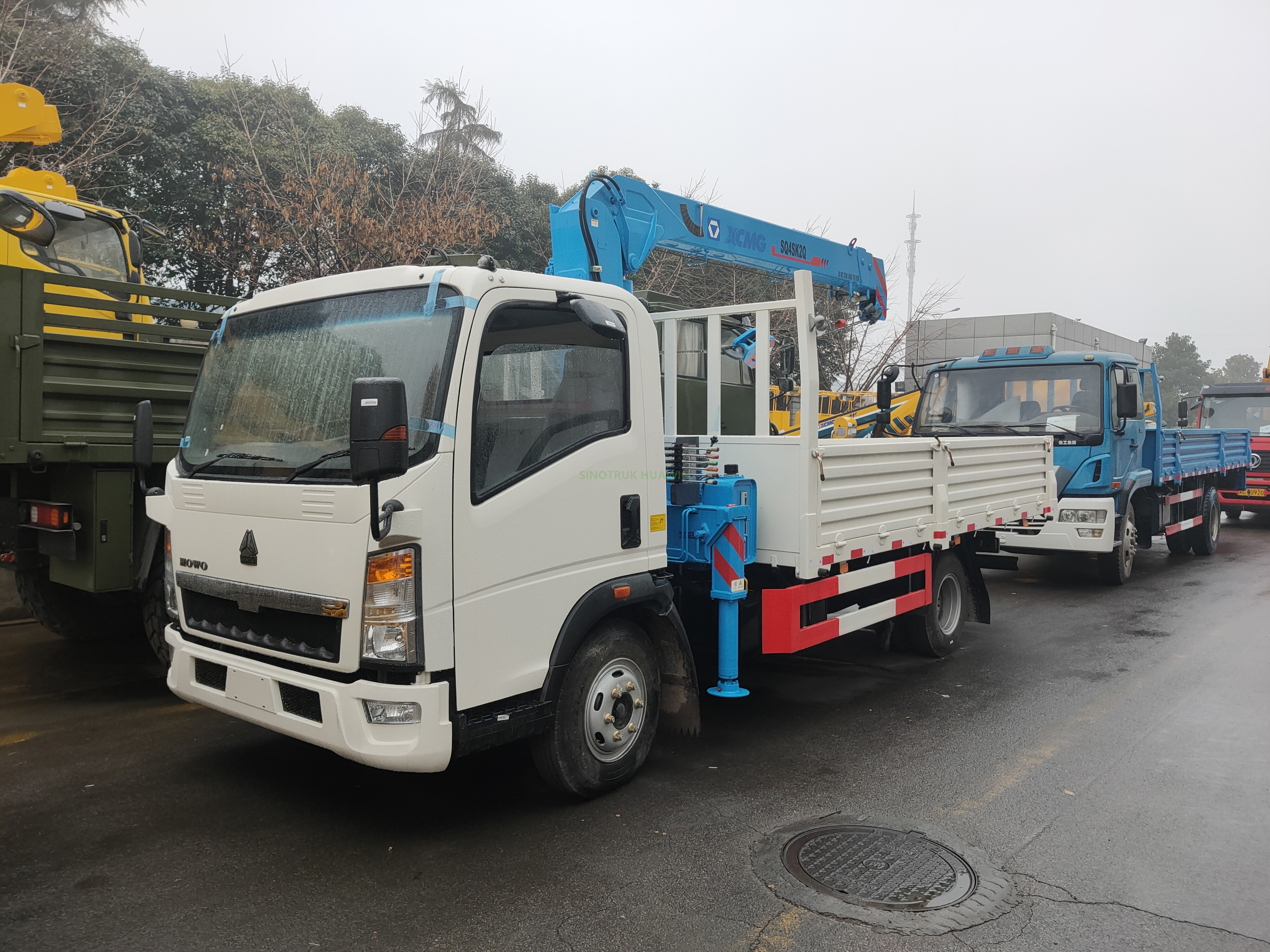

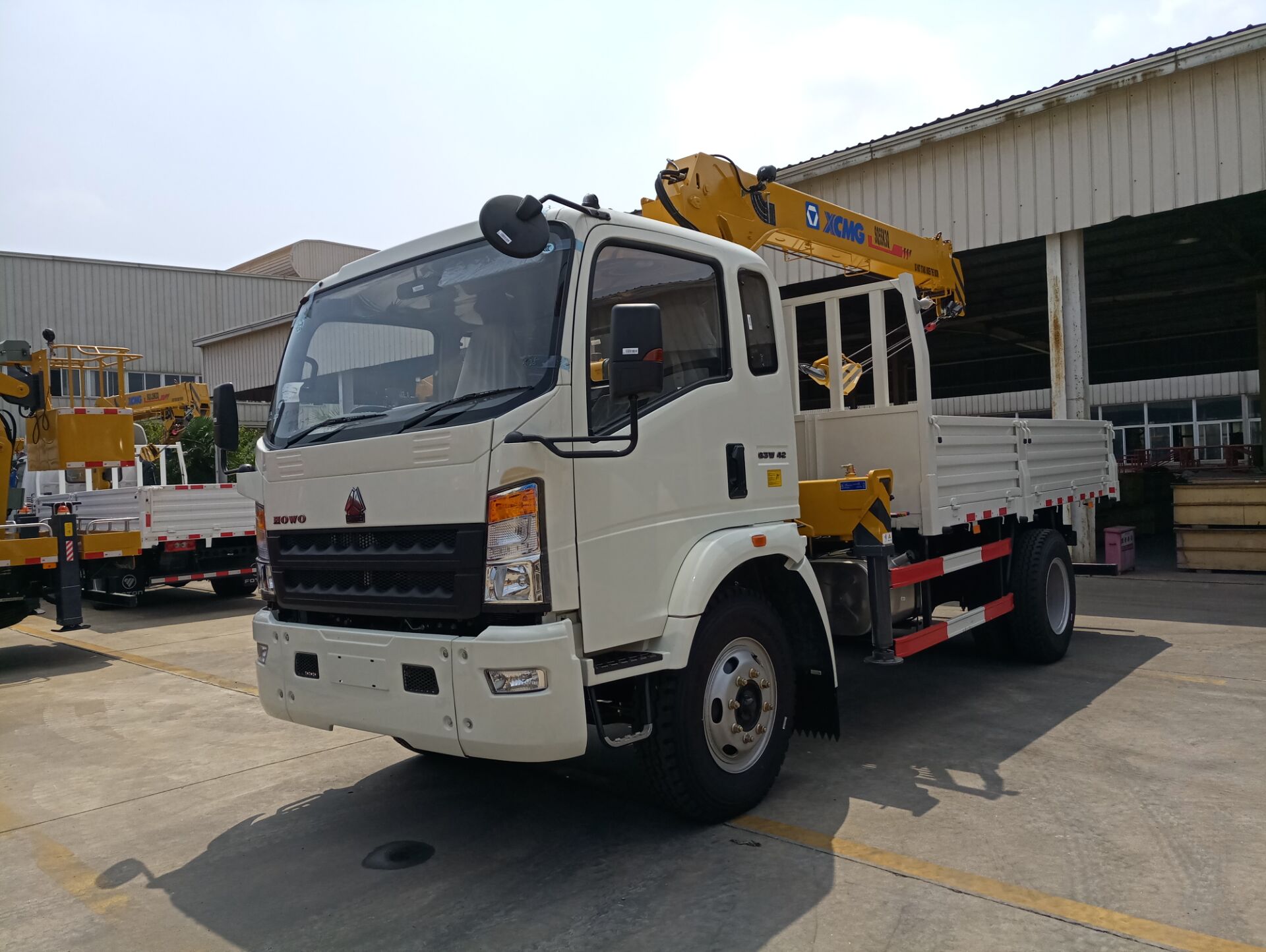

HOWO 4X2 Truck with XCMG 3.2T Crane

SINOTRUK HOWO 4X2 telescopic boom truck with XCMG 3.2T Crane are simply the best utility truck cranes you can buy. Built to perform under the toughest conditions and designed for durability and long service life.

Quantity:
  • SINOTRUK

                                               HOWO 4x2 Truck with XCMG 3.2T Crane

Cabin

Driving type 4x2      RHD


2080 standard cab, with two seats, and air condition, one sleeper, without air deflector.

70°hydraulically tillable to the front

as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H) mm

8500x2500x3350

Carriage Size (L x W x H) mm

4900x2300x600

Wheel base  (mm)

4500

Wheel track  (front/rear) (mm)

1589/1599

Weight in KGS

Tare Weight

6000

payload

8000

Front axles loading capacity

1x4500

Rear axles loading capacity

1x9500

Max. driving speed(km/h)

90

Engine

Brand

YUCHAI

Model

4110Y

Type

4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

140

Emission standard

Euro , Diesel

Gearbox

WLY6T51, 6 Forwards gear & 1 reverse gear, Manual

Tire

8.25R20 steel radial tire 7 pcs including one spare tire

Crane specifications

Brand : XCMG

Model: SQ3.2SK2Q

Type: straight

Max lift capacity: 3200 kg

Max working radius 7.56 m, Max lifting height 9m


Specifications of the Crane

Model

SQ3.2SK2Q

Max Lifting Capacity(kg)

3200

Max Lifting Moment(T.M)

6.8

Recommend Power(kw)

14

Max Oil Flow of Hydraulic System(L/MIN)

25

Lifting Capacity(kg/m)

3200/2.1

1800/3.36

900/5.46

500/7.56

Rotation Angle






Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
