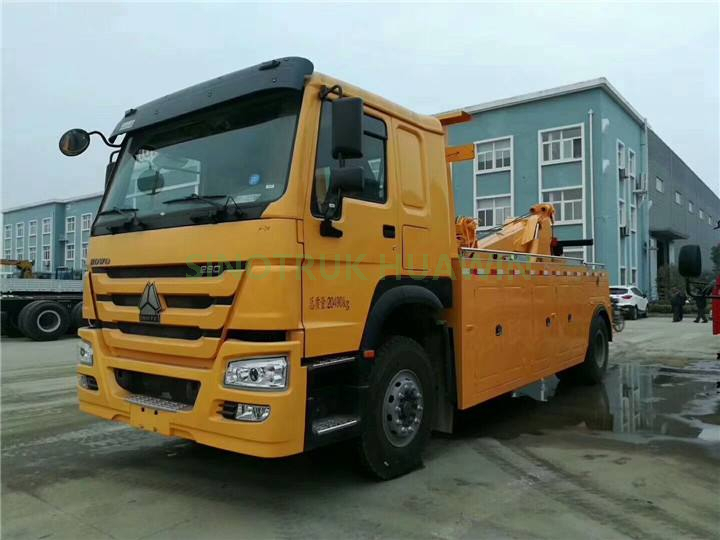

HOWO 4X2 Wrecker Truck

HOWO 4X2 290HP wrecker truck can carry one broken truck on the platform and hauling one broken car in the rear. The load capacity of the flat mechanism is 12 tons.

Quantity:
  • Sinotruk howo

                                                    HOWO 4X2 Wrecker Truck


Cabin

Driving type 4x2      LHD

HW76 Cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

9220×2500×3320

Wheel base  (mm)

5600

Wheel track  (front/rear) (mm)

2022/1830

Weight in KGS

Tare Weight

16600

Front axles loading capacity

1x7000

Rear axles loading capacity

1x16000

Max. driving speed(km/h)

90

Engine

Brand

SINOTRUK

Model

WD615.87

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

290 HP

Emission standard

Euro

Gearbox

HW15710,10-speed forward and 2 reverse gear

Steering

ZF8098 power steering, hydraulic steering with power assistance

Clutch

Reinforced diaphragm clutch, diameter 430mm

Fuel tank (L)

300

Tire

12R22.5 tubeless tyre 7 pcs including one spare tire

Specialized Device

Boom Structure

Rated lifting weight

kg

5745

Max. Lifting weight of original place

kg

8000

Max. Lifting weight of full extension boom

kg

4000

Rated towing weight

kg

19000

Effective length of boom

m

3560

Extension traveling of boom

m

1700

Folding angle of boom

°

90

Under lift Structure

Max. Rated hanging weight

kg

8000

The height from hook to the ground

mm

5690

Max. Extension traveling of lifting boom

mm

2800

Rotation angle

°

34

Rated pulling power of winch

kg

2×6000

Length of steel cable

m

40

Min. Speed of steel cable

m/min

7



Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
