ZZ1317N3867
SINOTRUK HOWO

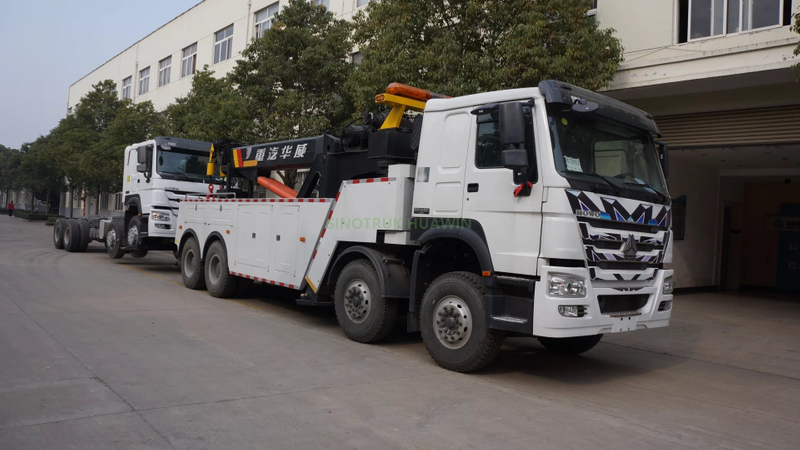

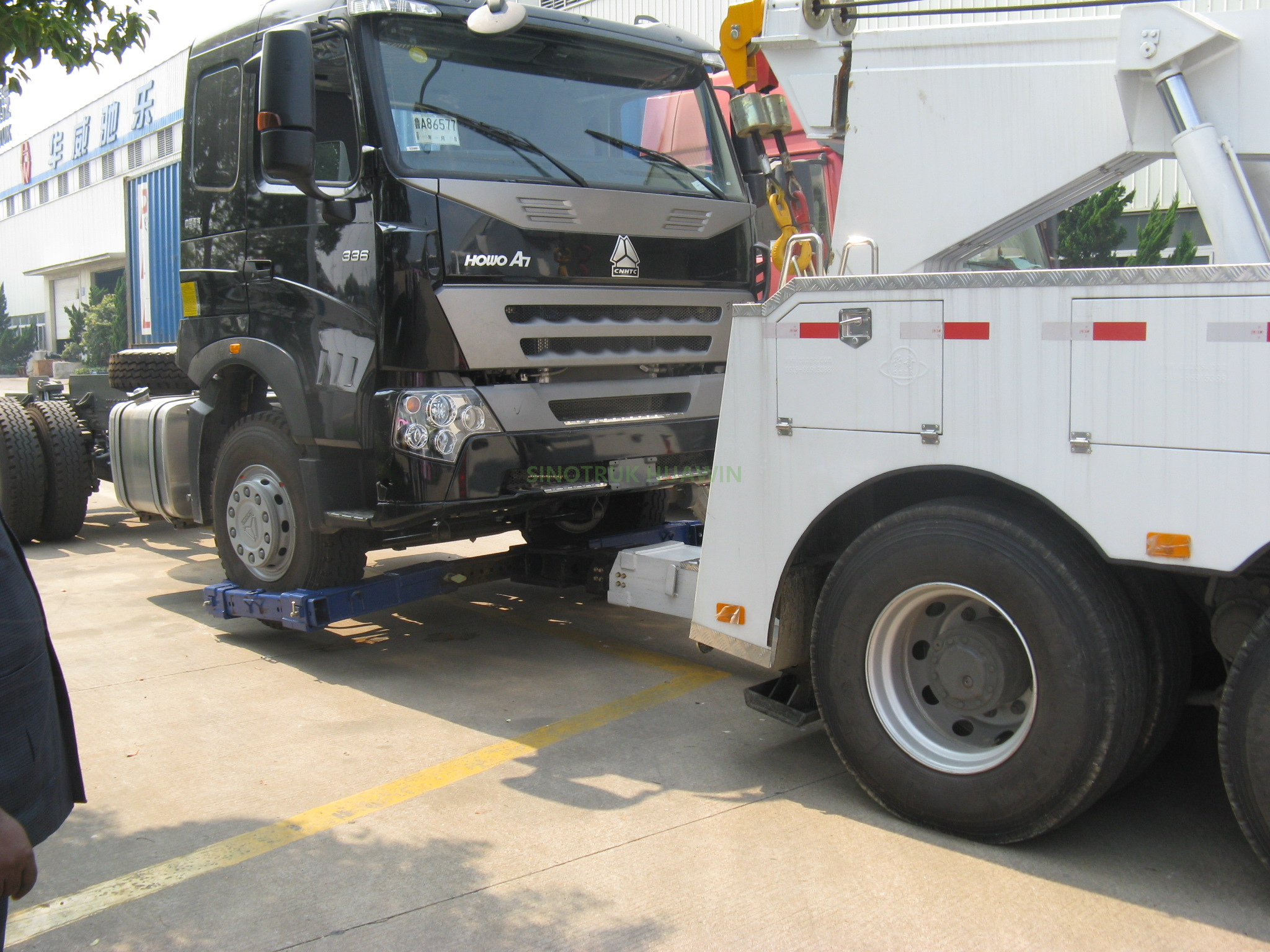

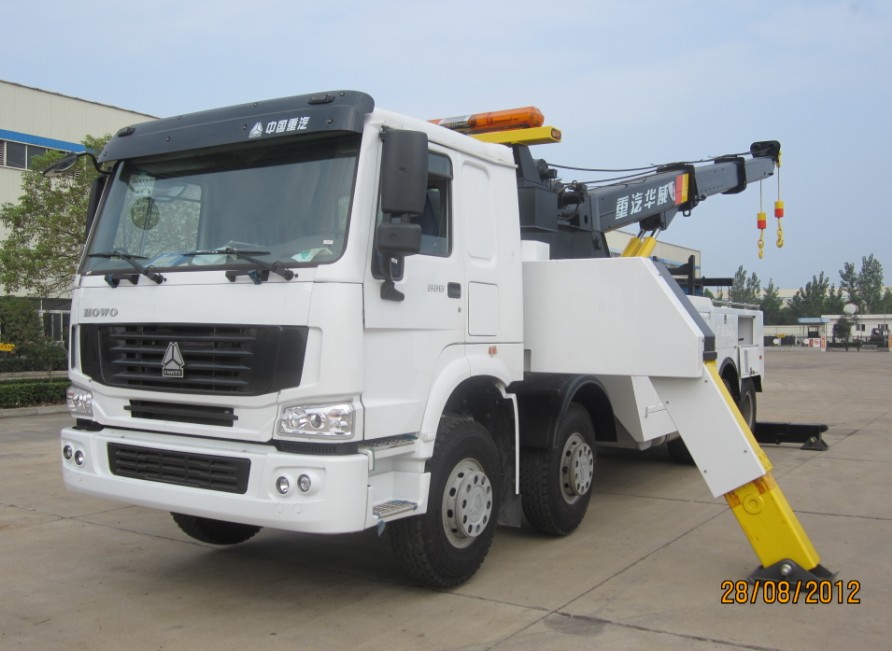

HOWO 8×4 Wrecker truck（360 Degree Rotation）
Cabin | Driving type 8x4 |
|
HW76 Cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref. Right hand driven. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | |
Wheel base (mm) | 1800+4600+1350 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight(KGS) | 15000 |
Front axles loading capacity(KGS) | 2x7000 | |
Rear axles loading capacity(KGS) | 2x16000 | |
Max. driving speed（km/h） | 95 | |
Engine | Brand | SINOTRUK |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710,10-speed forward and 2 reverse gear | |
Steering | ZF8098 power steering, hydraulic steering with power assistance | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 13 pcs including one spare tire | |
Specialized Device
Hoisting Organ | Rated under-hoisting capacity(kg) | 15000 |
Max under-pulling capacity(kg) | 40000 | |
Max Under-hoist length (mm) | 1630 | |
Under hoisting work angle | -10~85° | |
Max lifting capacity(kg) | 30000 | |
Max lifting high(mm) | 12000 | |
Lifting organ | Lift-hoist telescope length(mm) | 3000+3000 |
Winch | Pulling capacity 15000kgs, 2pcs | |
Length of steel | 50M | |
Crane work angle | 360℃ horizontal direction, 5~60° vertical direction | |
Landing leg | Distance between front legs(mm) | 6100 |
Distance between rear legs(mm) | 4200 |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
