ZZ2317N4377
SINOTRUK HOWO

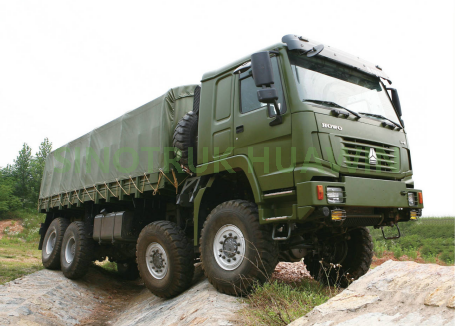

HOWO 8X8 All-wheel Drive Cargo Truck with 371 HP
Cabin | Driving type 8x8 LHD |
|
HOWO 76 cab, with air condition and one bed. 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 11600×2500×3150 |
Carriage Size (L x W x H) mm | 8900x2400x800 | |
Wheel base (mm) | 1950+4900+1400 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Weight in KGS | Tare Weight | 14000 |
payload | 35000 | |
Front axles loading capacity | 2x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 80 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 371 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710,10 Forwards gear & 2 reverse gear | |
Steering | ZF8118 power steering, hydraulic steering with power assistance | |
Tire | 12.00-20 tyre, 13 pieces including one spare | |
Transfer Case | 2000 | |
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
Fuel tank | 400 L | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
