SINOTRUK 2 Axles Car Carrier Semi Trailer
You are here: Home » Products » Semi Trailer » Car carrier semi trailer » SINOTRUK 2 Axles Car Carrier Semi Trailer
Share to:

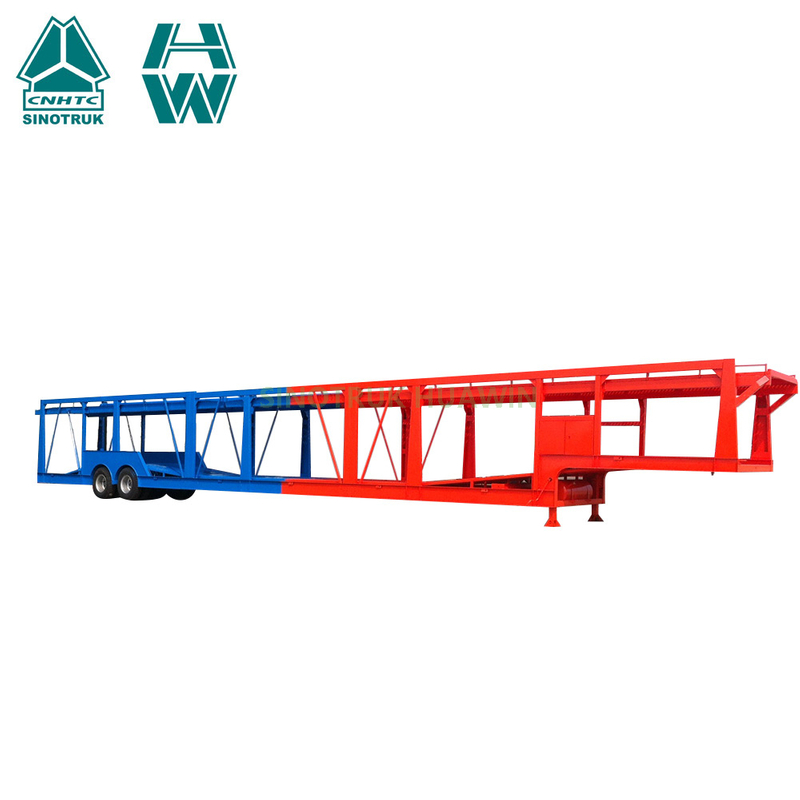

SINOTRUK 2 Axles Car Carrier Semi Trailer

Sinotruk utility 2 axles car carrier semi trailer with heavy duty and extra durability designed I beam is your best choice for long and short distance logistics.2 axles car carrier semi trailer special used in transporting cars, with high loading capacity, light self-weight, it's a high cost effective product.

Quantity:
  • Sinotruk

2 Axel Car Carrier Semi Trailer

DIMENSIONS

Overall  Length

18400mm

Overall  Width

2600mm

Overall  Height

3800mm

Payload

8 cars

Photo is for reference, final product can be made according to exact requirements


SPECIFICATIONS

Main Construction

Overall skeletal structure, Hydraulic lifting double-deck, Telescope rear ladder

I Beam &Chassis

Overall loading chassis; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

Axle

2 axles

BPW/ FUWA/HJ/L1 Brand 12 ton

Suspension

German design mechanical suspension

Hydraulic

4 sets Hydraulic Cylinder

Leaf Spring

8-piece leaf spring.

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

8.25-22.5 steel wheel rim, 9 pieces

Tire

11R22.5 with one spare tire, 9 pieces

Spare Tire

One sets of spare tire

Braking System

WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box



Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts beam, axle, landing gear or within 100000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
