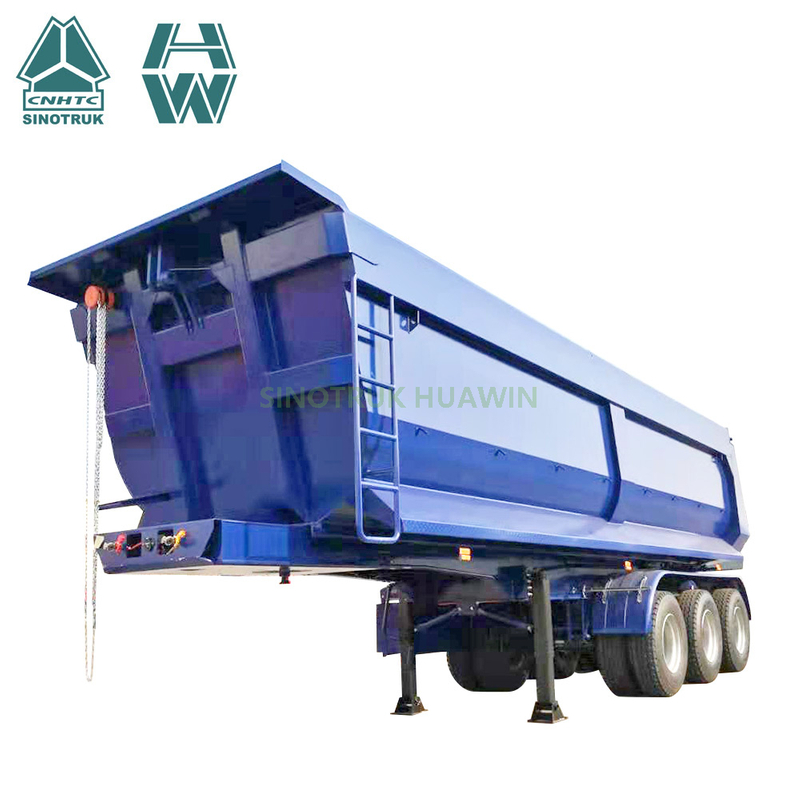

SINOTRUK 3 Axles Tipper Semi Trailer-U Shape

Sinotruk U shape 3 axles tipper semi trailer is pulled goods volume can reach 25 cbm, the weight can reach 45 tons, greatly improving the work efficiency. Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.

Quantity:
  • SINOTRUK
                                                   Sinotruk U shape 3 axles tipper semi trailer for sale
DIMENSIONS
Tare  Weight8000-12000kgs
Payload35000-45000kgs
Overall  Length7800-10500mm
Overall  Width2420-2465mm
DUMPER BODY
Volume18m³,25 m3
Side Wall6mm thickness
Front Wall and floor8mm thickness
SPECIFICATION


Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q610B, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 10mm and 8mm ; Bottom Flange 18mm,width 140mm.


Axle

3 axles
BPW/ FUWA/HJ/L1 Brand 12 tons
Hydraulic SystemOne set of HYVA cylinder
SuspensionGerman design mechanical suspension
Leaf Spring13-piece leaf spring. 11x100
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.0R22.5 wheel rim, 13 pieces

Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts beam, axle, landing gear or within 50000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
