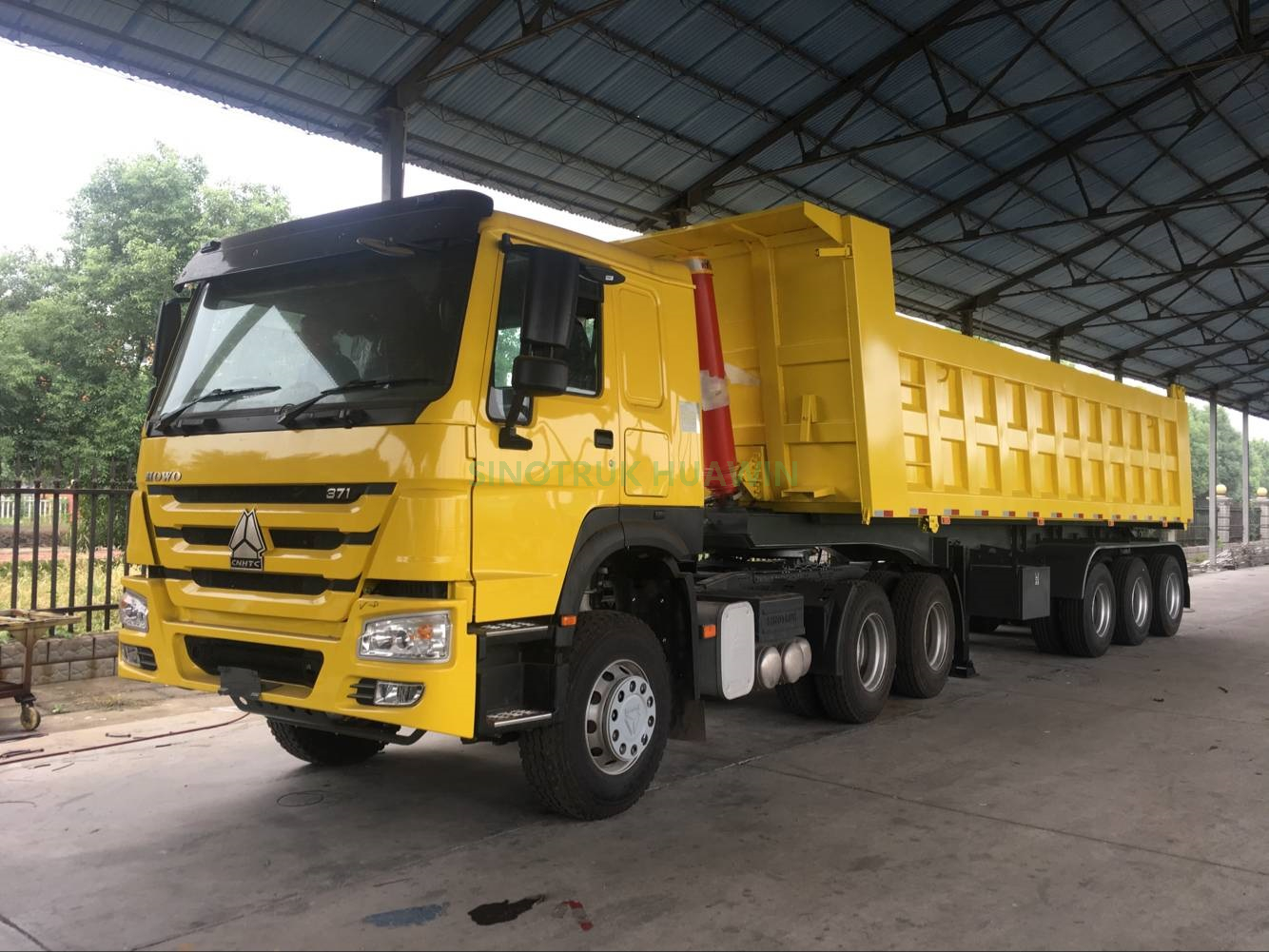

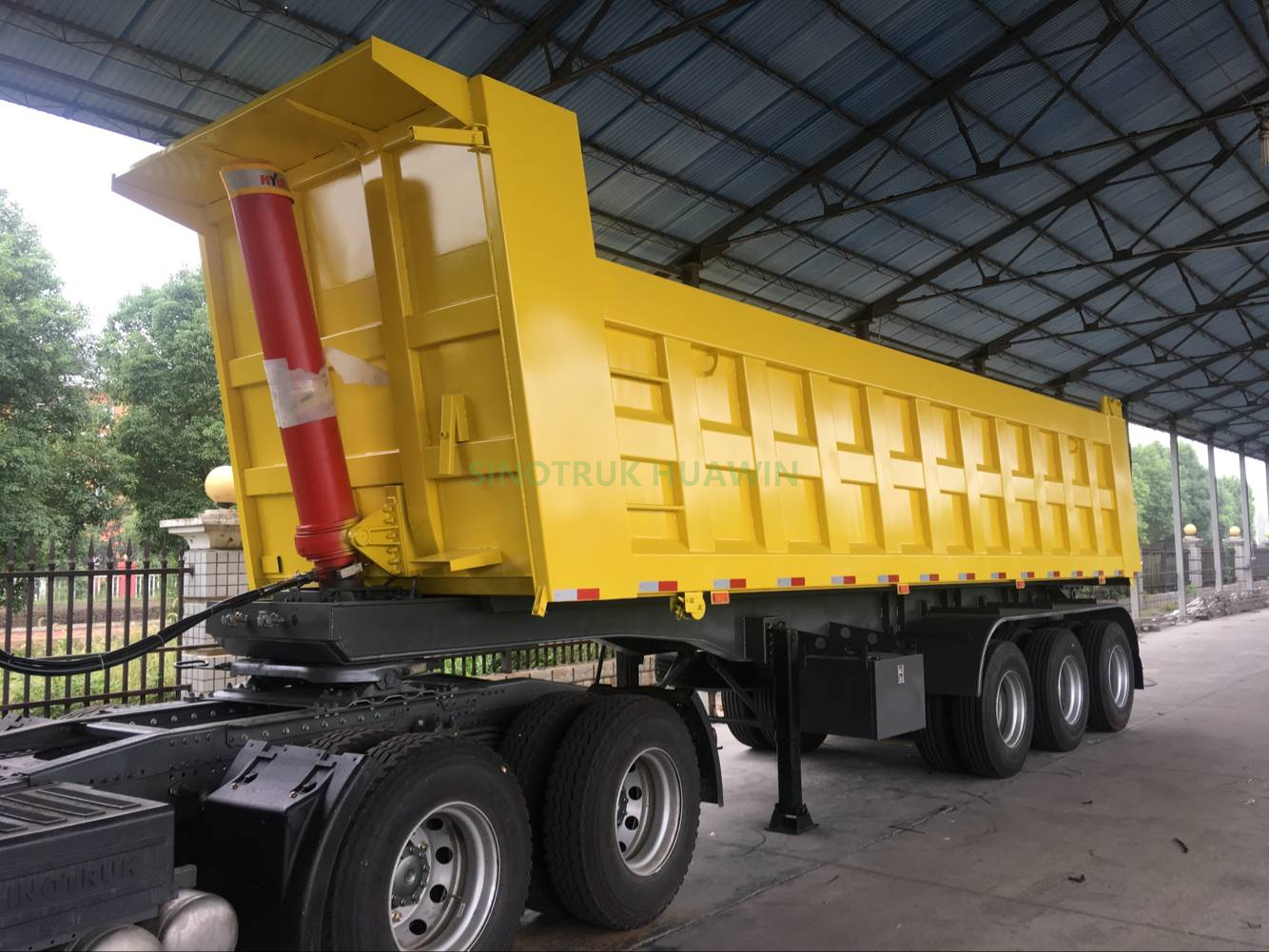

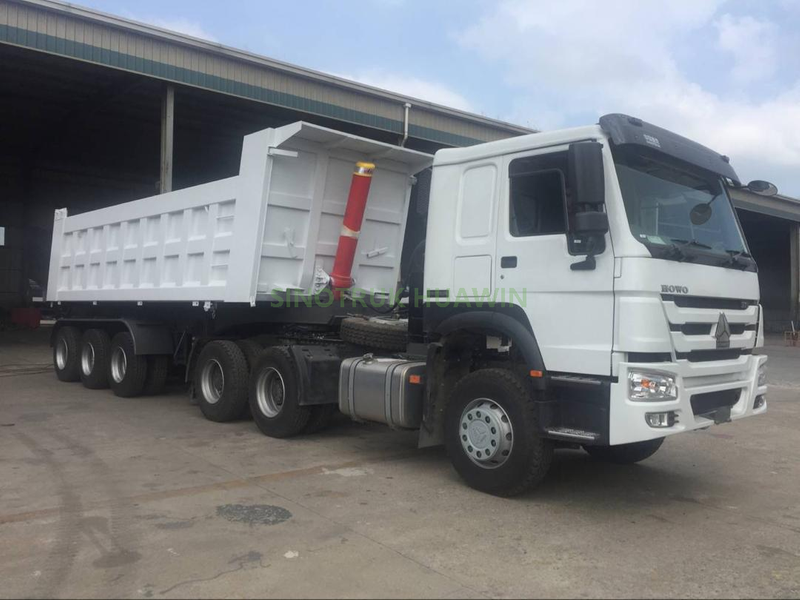

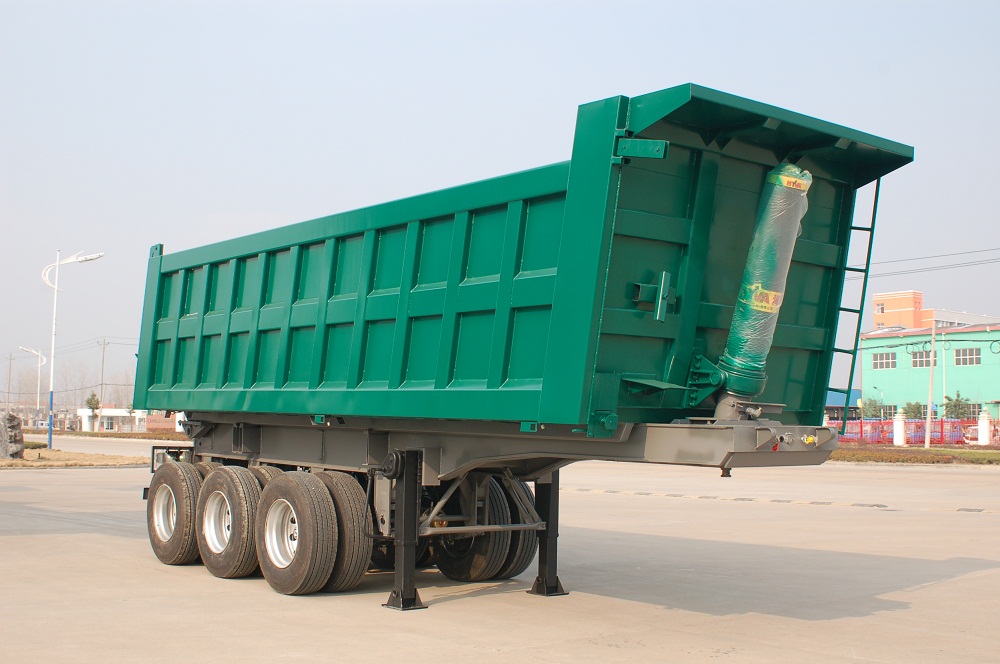

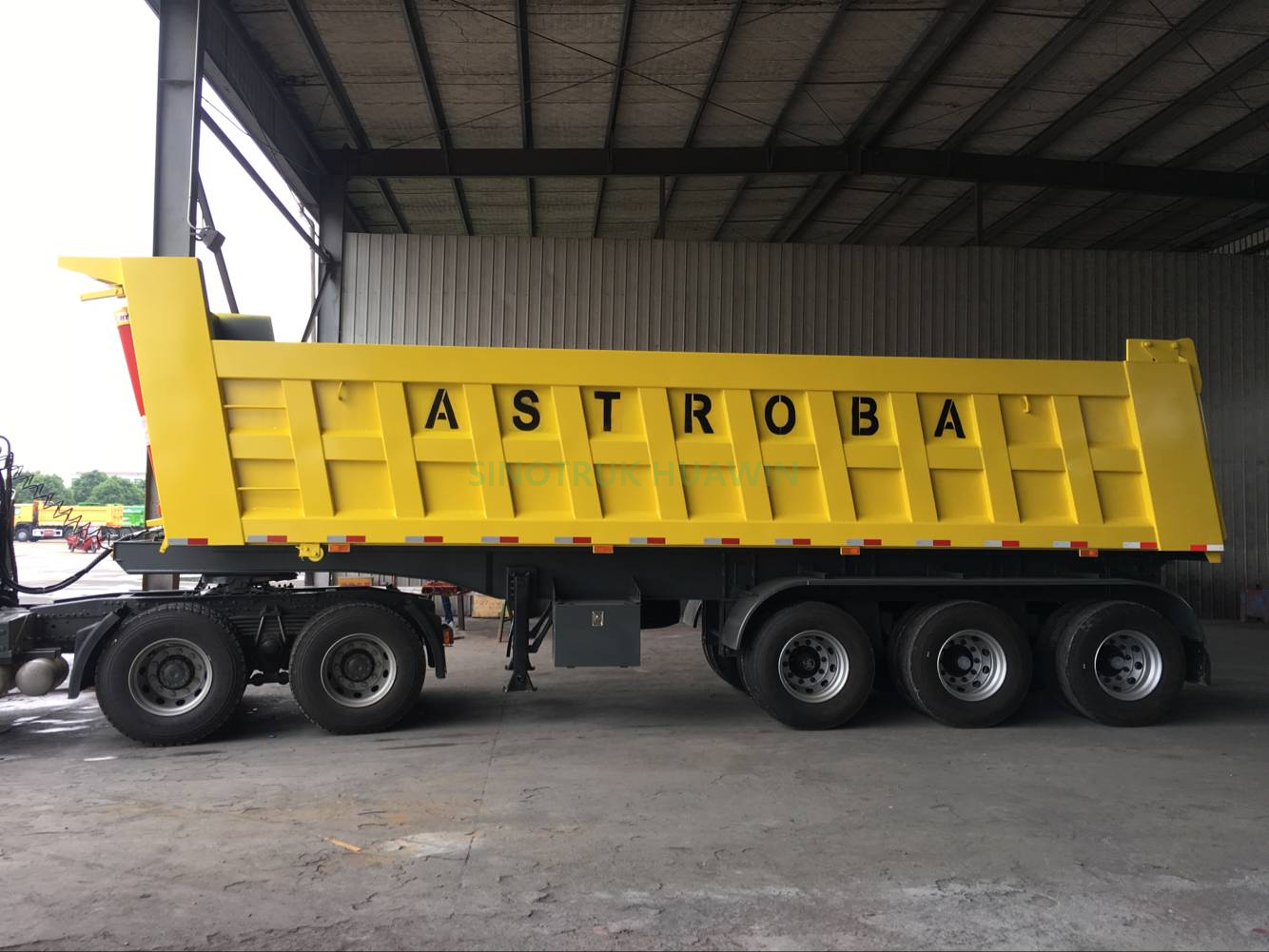

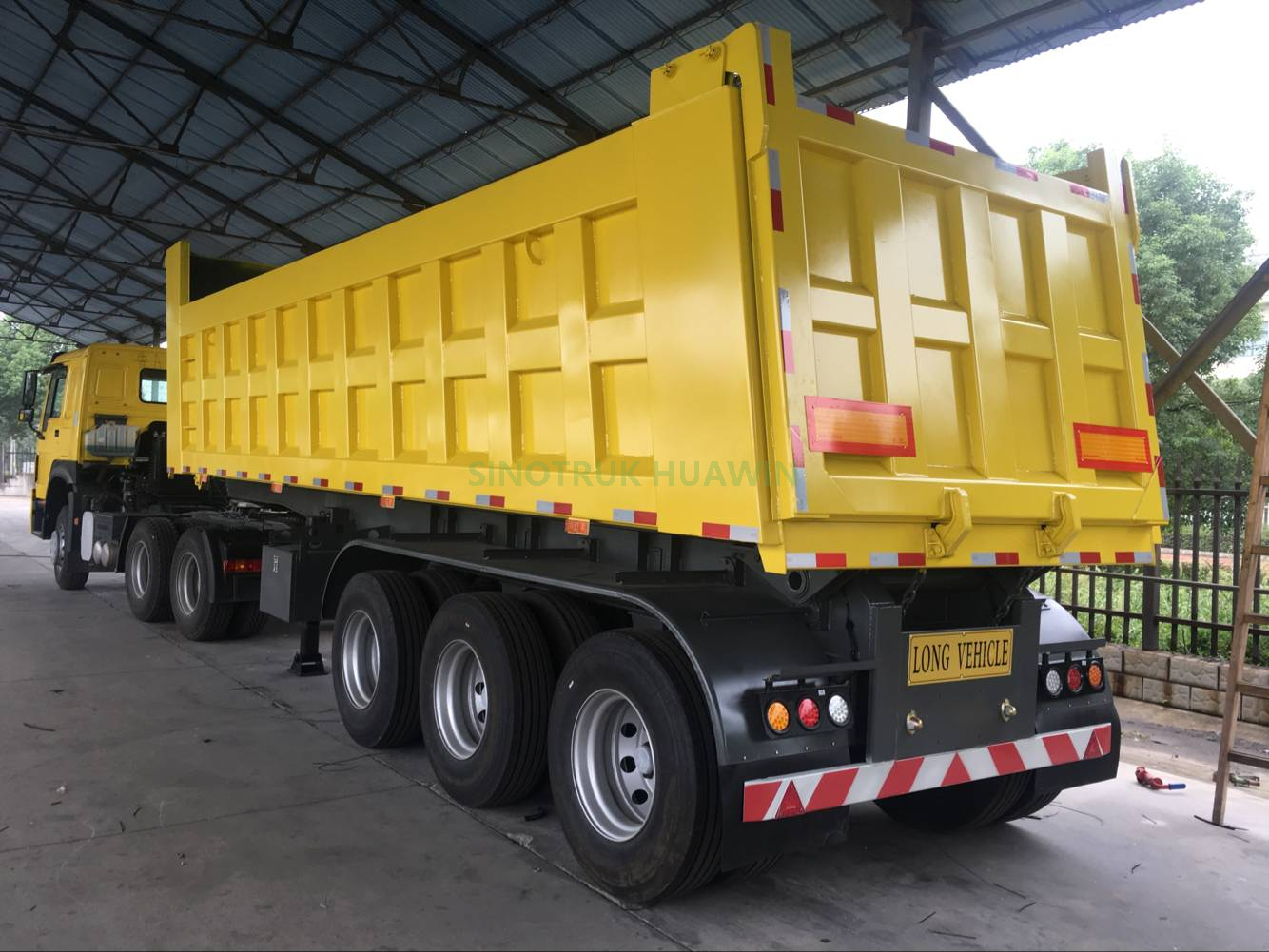

SINOTRUK 3 Axles Tipper Semi Trailer

Sinotruk 3 axles tipper semi trailer is pulled goods volume can reach 25 cbm, the weight can reach 45 tons, greatly improving the work efficiency. Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.

Quantity:
  • SINOTRUK
                                                   Sinotruk 25CBM 3 axle tipper semi trailer for sale
DIMENSIONS
Tare  Weight12000kgs
Payload45000kgs
Overall  Length8900mm
Overall  Width2465mm
Dump body size 7250mmx2300mmx1500mm
DUMPER BODY
Volume25 m3
Side Wall6mm thickness
Front Wall and floor8mm thickness
SPECIFICATION


Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.


Axle

3 axles
BPW/ FUWA/HJ/L1 Brand 12 ton
Hydraulic SystemOne set of HYVA cylinder
SuspensionGerman design mechanical suspension
Leaf Spring13-piece leaf spring. 11x100
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.0R22.5 wheel rim, 13 pieces


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts beam, axle, landing gear or within 50000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
