SGZ
Sinotruk
40FT 2 Axles Flatbed Semi Trailer
DIMENSIONS | ||
Tare Weight | 6700kg |
|
Overall Length | 12400mm | |
Overall Width | 2480mm | |
Payload | 35000kg | |

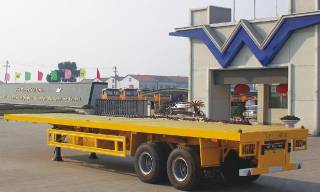

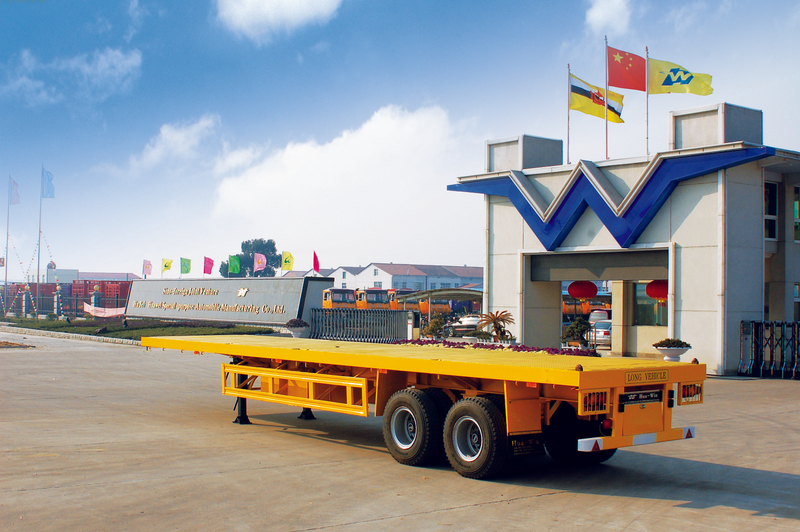

Photo for reference. Final products can be made according to exact requirements | ||
SPECIFICATIONS | ||
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |
Axle | 2 axles | |
BPW/ FUWA/HJ/L1 Brand 12 tons | ||
Suspension | Heavy duty mechanical suspension | |
Floor | 3mm checker plate | |
Leaf Spring | 13 piece Leaf spring | |
King Pin | JOST brand 2” Bolt-in King Pin | |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
Wheel Rim | 9.0-22.5 wheel rim 9 pieces | |
Tire | 12R22.5 tire with one spare tire , 9 pieces | |
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |
Spare Tire | One set of spare tire including a carrier | |
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Accessories | One standard tool box | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
40FT 2 Axles Flatbed Semi Trailer
DIMENSIONS | ||
Tare Weight | 6700kg |
|
Overall Length | 12400mm | |
Overall Width | 2480mm | |
Payload | 35000kg | |

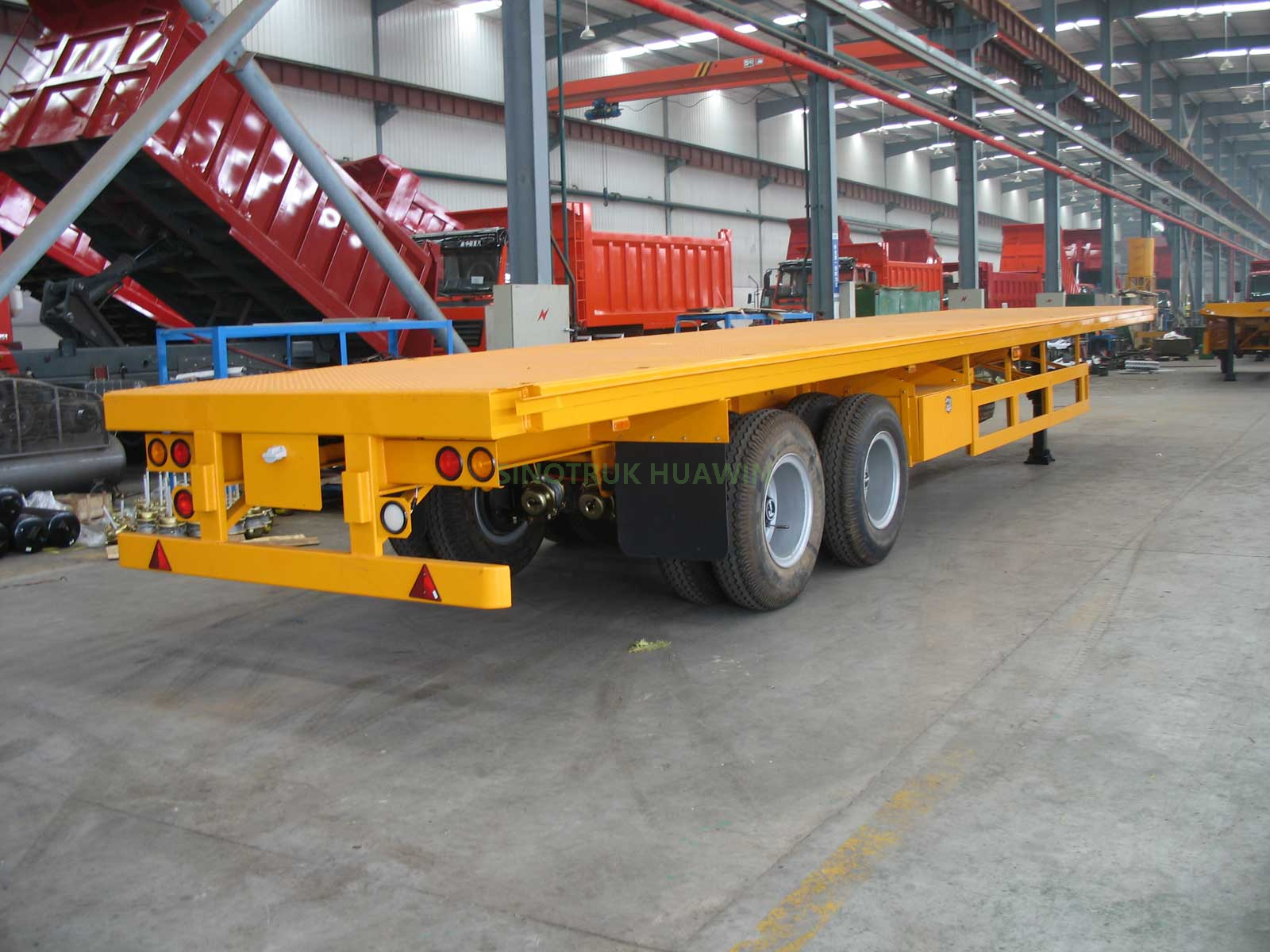

Photo for reference. Final products can be made according to exact requirements | ||
