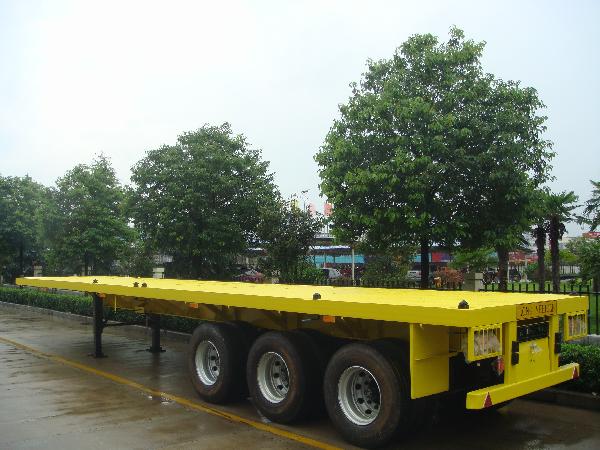

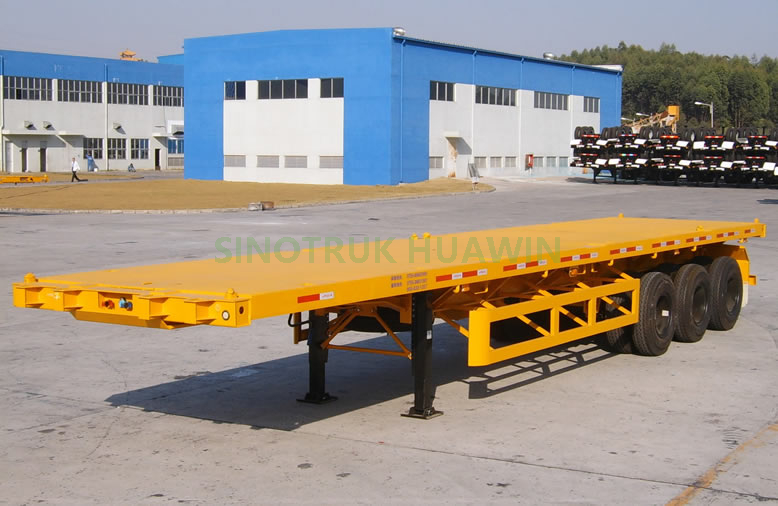

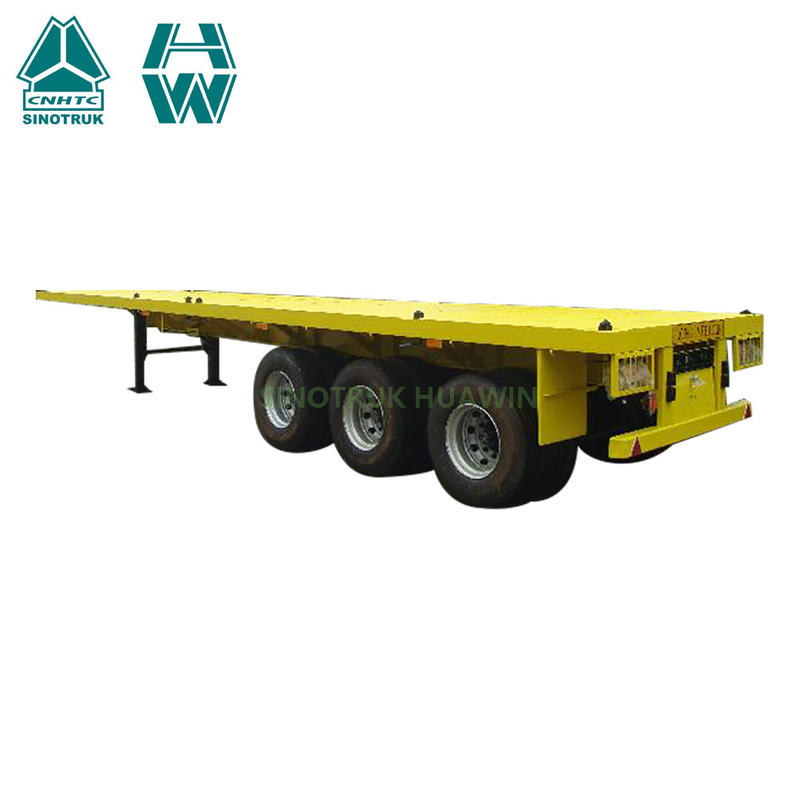

SINOTRUK 40FT 3 Axles Flatbed Semi Trailer

40FT 3 axles flatbed semi trailer is applied to the transportation of all kinds of mechanical equipment, big size articles, road construction equipment, big size tank body power station equipment and all kinds of steels, widely using, high efficiency .whole vehicle adopts advanced computer aided design for optimization design ,flexible and various , to design carrying flat according to the requirements of customers to meet various of special goods transportation needs.

Quantity:
  • Sinotruk
                             40FT 3 axles flatbed semi trailer
Tare  Weight7700kg
Overall  Length12400mm
Overall  Width2480mm
Payload45000kg


I Beam & Chassis

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm,

Bottom Flange 16mm,width 140mm.


Axle

3 axles
BPW/ FUWA/HJ/L1 Brand 12 ton
SuspensionHeavy duty mechanical suspension
Floor3mm checker plate
Leaf Spring13 piece Leaf spring
King PinJOST brand 2” Bolt-in King Pin
Landing GearJOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim9.0-22.5 wheel rim 13 pieces
Tire 12R22.5 tire with one spare tire. 13 pieces

Twist Lock

12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down.
Spare TireOne set of spare tire including a carrier
Braking SystemWABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
AccessoriesOne standard tool box


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts beam, axle, landing gear or within 100000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
