SINOTRUK 4X2 Hook Arm Garbage Truck
You are here: Home » Products » Special Truck » Garbage truck » SINOTRUK 4X2 Hook Arm Garbage Truck
Share to:

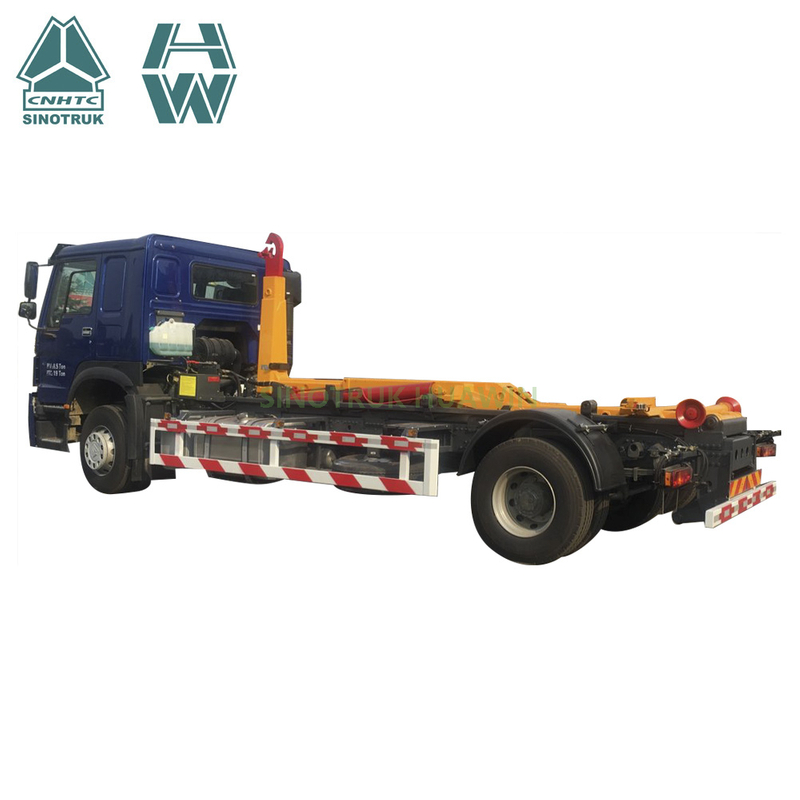

SINOTRUK 4X2 Hook Arm Garbage Truck

SINOTRUK HOWO 4X2 Hook Arm Garbage Truck. Box Size: 15 CBM matched. PTO motivated hydraulic system, Hydraulic cylinder: two cylinders with lifting arm and two cylinder with landing leg

Quantity:
  • SINOTRUK HOWO

SINOTRUK 4X2 Hook Arm Garbage Truck


Cabin

Driving type 4x2      LHD


HW70 standard cab, with two seats and A/C, 70°hydraulically tillable to the front as attached photo for ref.

Wheel base  (mm)

4600

payload

                 15000

Front axles loading capacity

1x7000

Rear axles loading capacity

1x16000

Engine

Brand

SINOTRUK

Model

WD615.62

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

266

Emission standard

Euro Ⅱ

Gearbox

HW 19710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

400L

Tire

12R22.5 tubeless tire, 7 pcs including one spare tire





Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
