ZZ1167M461
SINOTRUK HOWO

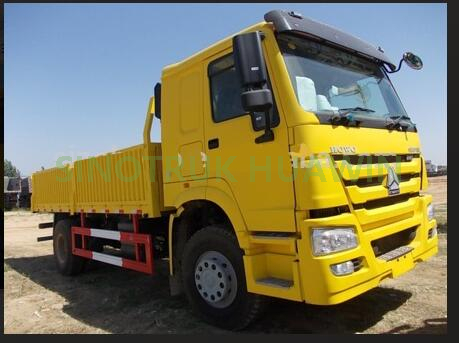

HOWO 4x2 Cargo Truck
Cabin | Driving type 4x2 LHD | |
HW70 cab, with two seats and air condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H) mm | 7900×2496×3150 |
Wheel base (mm) | 4600 | |
Weight in KGS | Tare Weight | 8000 |
payload | 15000 | |
Front axles loading capacity | 1x6000 | |
Rear axles loading capacity | 1x16000 | |
Engine | Brand | SINOTRUK |
Model | WD615.87 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 290 | |
Emission standard | Euro Ⅱ | |
Gearbox | HW15710 gear box with 10 forward and 2 reverse | |
Steering | ZF8098 power steering, hydraulic steering with power assistance | |
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
Fuel tank | 400 L | |
Tire | 12R22.5 tubeless tyre, 7 pieces including one spare | |
Box Size(mm) | 5500x2300x600 | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
