SINOTRUK HOWO 4X2 Garbage Collector Truck
You are here: Home » Products » Special Truck » Garbage truck » SINOTRUK HOWO 4X2 Garbage Collector Truck
Share to:

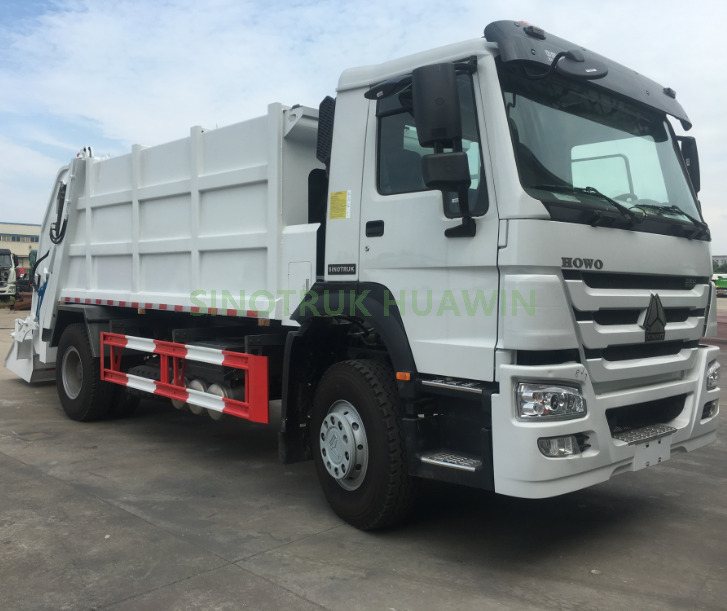

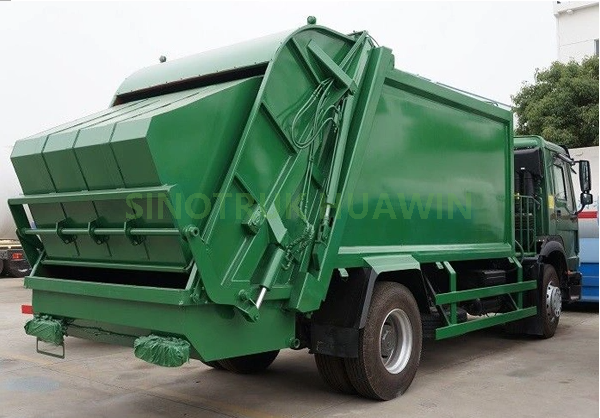

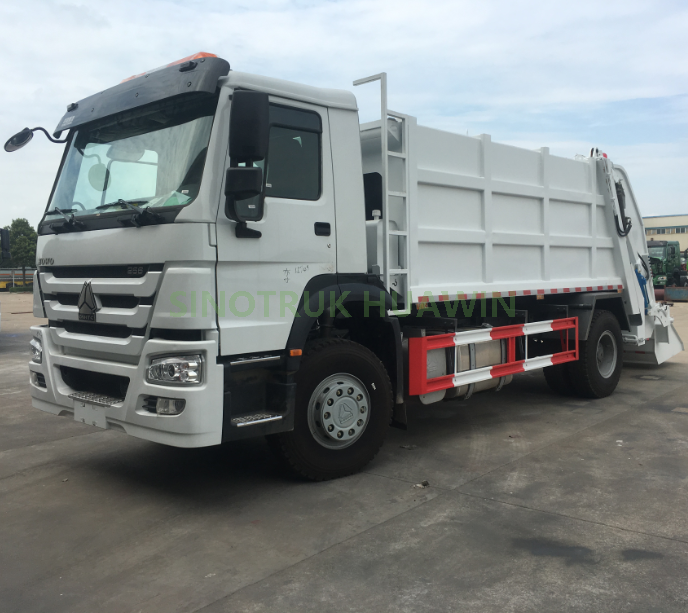

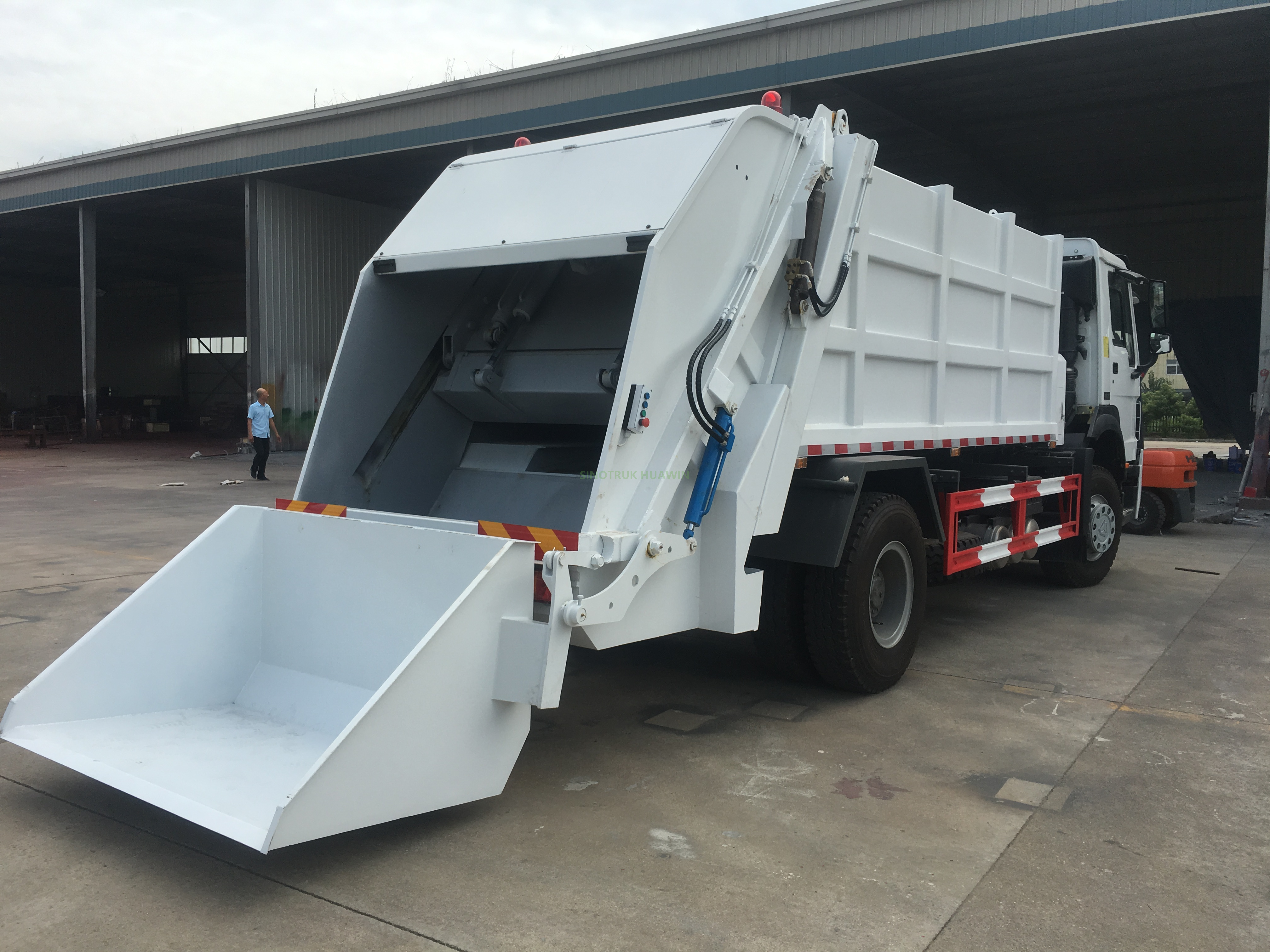

SINOTRUK HOWO 4X2 Garbage Collector Truck

Sinotruk HOWO high performance garbage collection truck is complete, easy to operate, garbage loading, the hydraulic drive and electronic program controller control, accurate, reliable performance, performance and reliable. Full volume utilization rate can reach more than 97%.

Quantity:
  • SINOTRUK HOWO

HOWO 4X2  Garbage collector truck


Cabin

Driving type 4x2      LHD

HW70 standard cab, with two seats and A/C, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

6600×2500×3250

Wheel base  (mm)

3800

Wheel track  (front/rear) (mm)

2020/1830

Approach/Departure angle(°)

19/27

Weight in KGS

Tare Weight

7950

payload

18000

Front axles loading capacity

1x9000

Rear axles loading capacity

1x16000

Engine

Brand

Sinotruk

Model

WD615.87

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

290

Emission standard

Euro Ⅱ

Gearbox

HW15710, 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

300

Tire

12R22.5 tubeless tyre 7 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Bin size

4200*2300*1200 mm

Hydraulic system

middle positioned


Remarks:

1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
