| Quantity: | |
|---|---|
ZZ1107G451CD
SINOTRUK

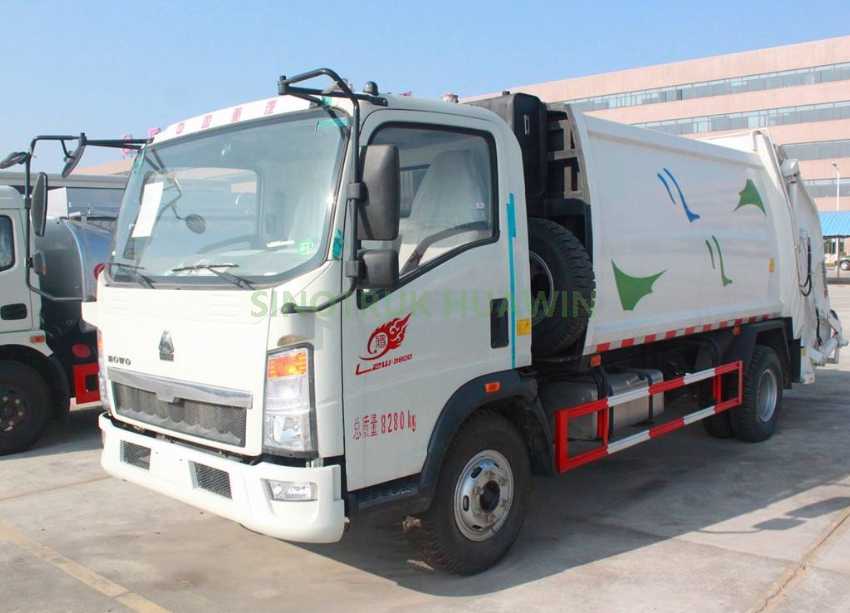

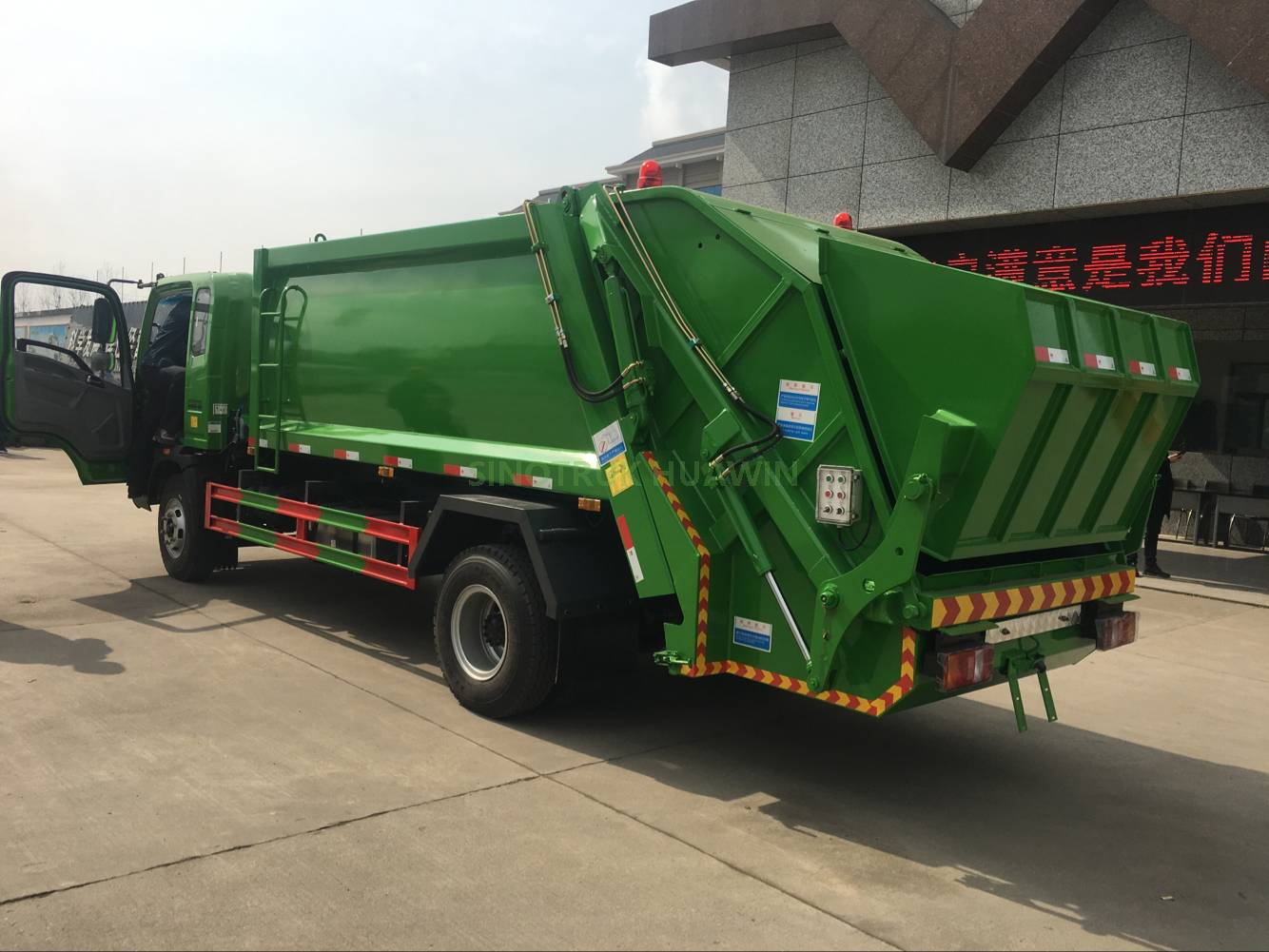

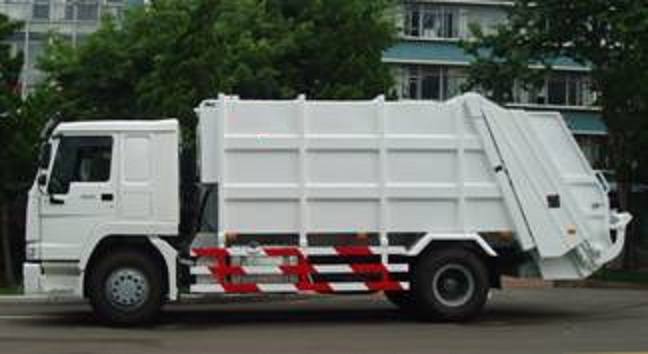

SINOTRUK HOWO 4X2 Garbage Compactor
Cabin | Driving type 4x2 LHD |
|
HW70 Cab, with A/C and two seats. 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8100×2500×3200 |
Wheel base (mm) | 3800 | |
Weight in KGS | Tare Weight | 9800 |
Front axles loading capacity | 1x9000 | |
Rear axles loading capacity | 1x16000 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | SINOTRUK |
Model | WD615.87 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 290 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW15710, 10-speed forward and 2-reverse | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering | German ZF8098, power steering, hydraulic steering with power assistance | |
Oil tank | 300 L | |
Tire | 12R22.5 tubeless tire, 7pcs including one spare tire | |
Specialized Device
Boday volume | 12 CBM |
Filler volume | 1.6 CBM |
Cycle Time of Filling | ≤25 S |
Lifting Time of Filler | 8 S |
Max.Compression Force | 20MPA |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
