SINOTRUK HOWO 4X2 Wing Van Truck
You are here: Home » Products » Cargo Truck » Wing van truck » SINOTRUK HOWO 4X2 Wing Van Truck
Share to:

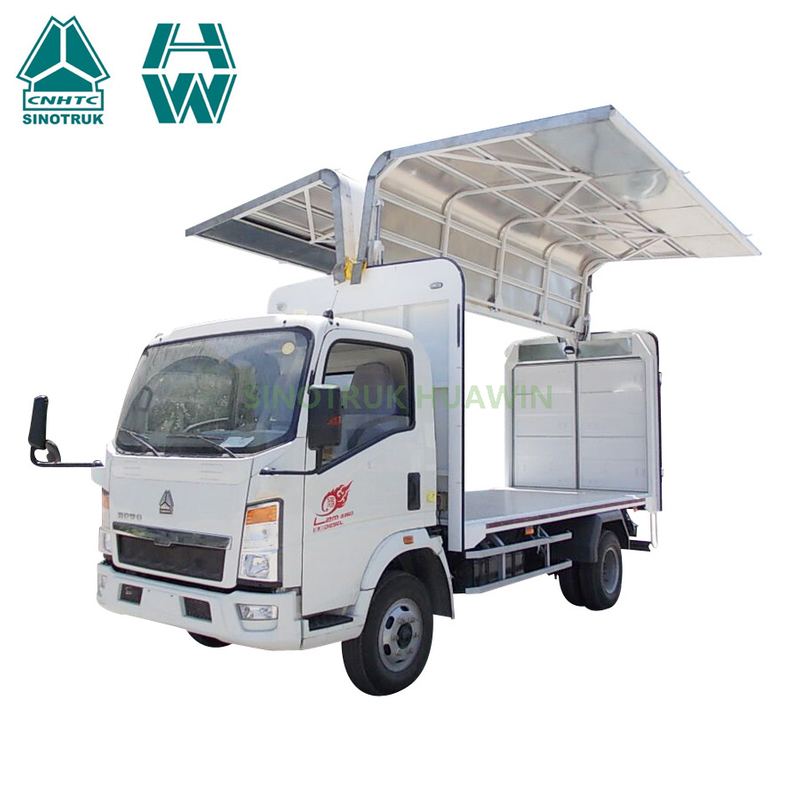

SINOTRUK HOWO 4X2 Wing Van Truck

Sinotruk HOWO 4X2 6 wheels wing van truck’s Outer wall is aluminum sheets. Wing Van Length is 6800mm. It’s suitable for Logistics business, for transport all kinds of general cargos, especially drinks.

Quantity:
  • SINOTRUK HOWO

HOWO 4X2 Wing Van Truck-12tons


Cabin

Driving type 4x2      LHD

2080 cabin with two seats and one bed, with air condition, wind deflector.

70°tillable to the front

Photo for reference

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

9050×2400×3400

Wheel base  (mm)

5200

Wheel track  (front/rear) (mm)

1605/1520

Approach/Departure angle(°)

20/18

Weight in KGS

Tare Weight

4500

Payload

12000

Front axles loading capacity

1x3600

Rear axles loading capacity

1x12500

Max. driving speed(km/h)

90

Engine

Brand

YUCHAI

Model

YC4E160-33

Type

4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

160

Emission standard

Euro Ⅱ

Gearbox

DC6J65TC, 6 Forwards & 1 reverse

Fuel

220L

Tire

9.00R20 radial tire 7 PCS including one spare tire

Box size

6800*2300*2300 mm


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
