SINOTRUK HOWO A7 Tractor Truck Delivered to Uganda

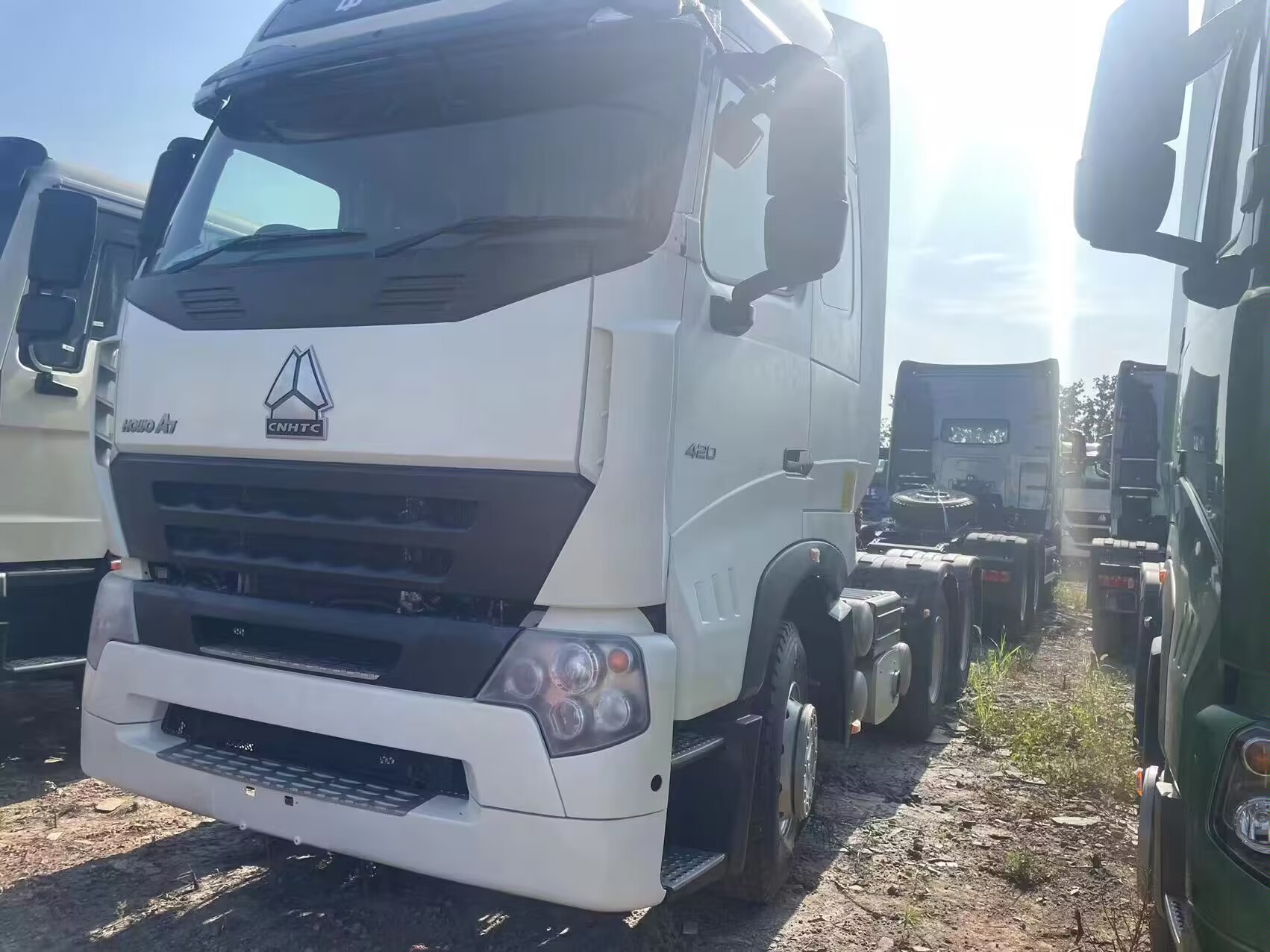

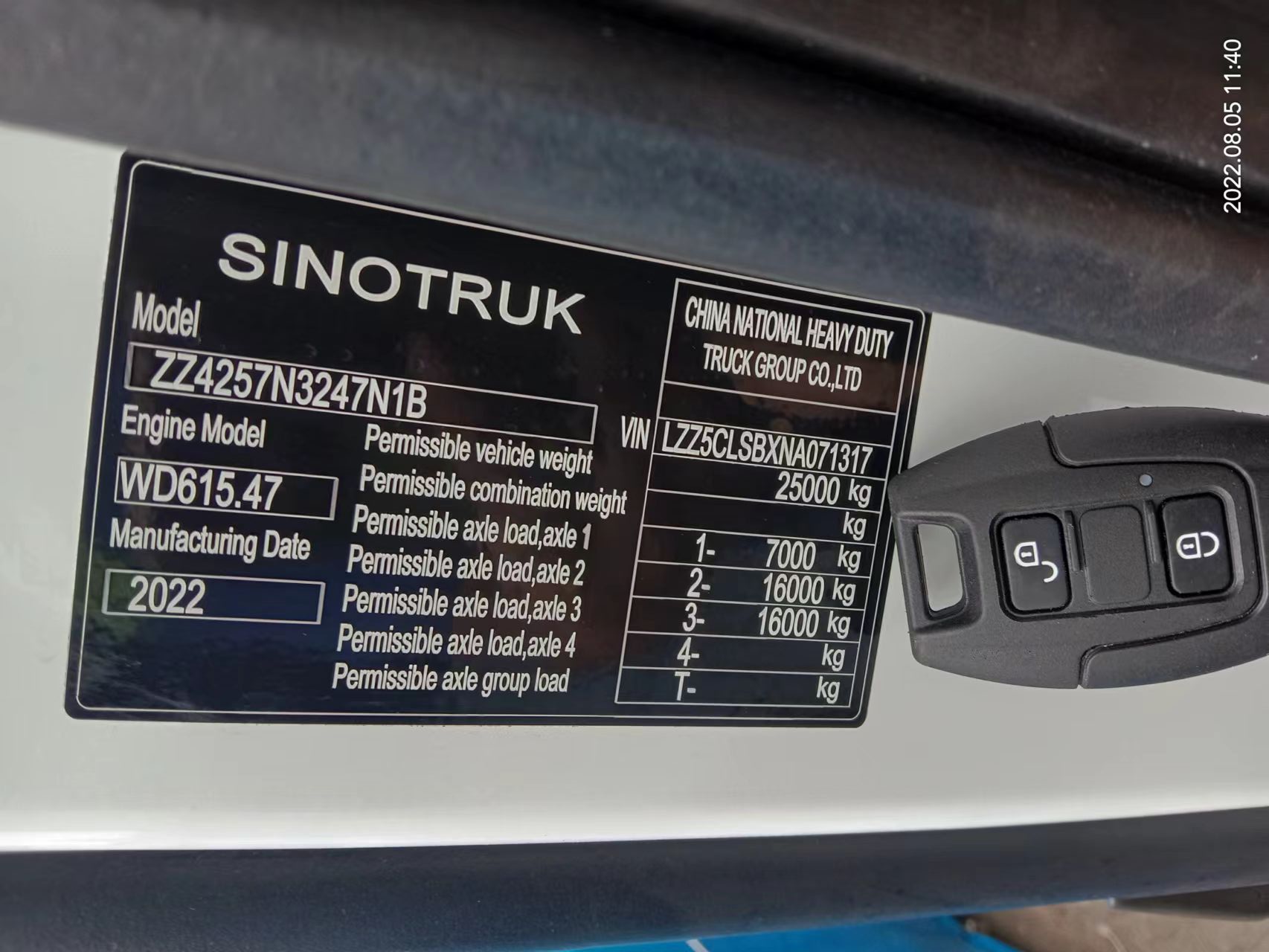

1. The basic pictures and details:

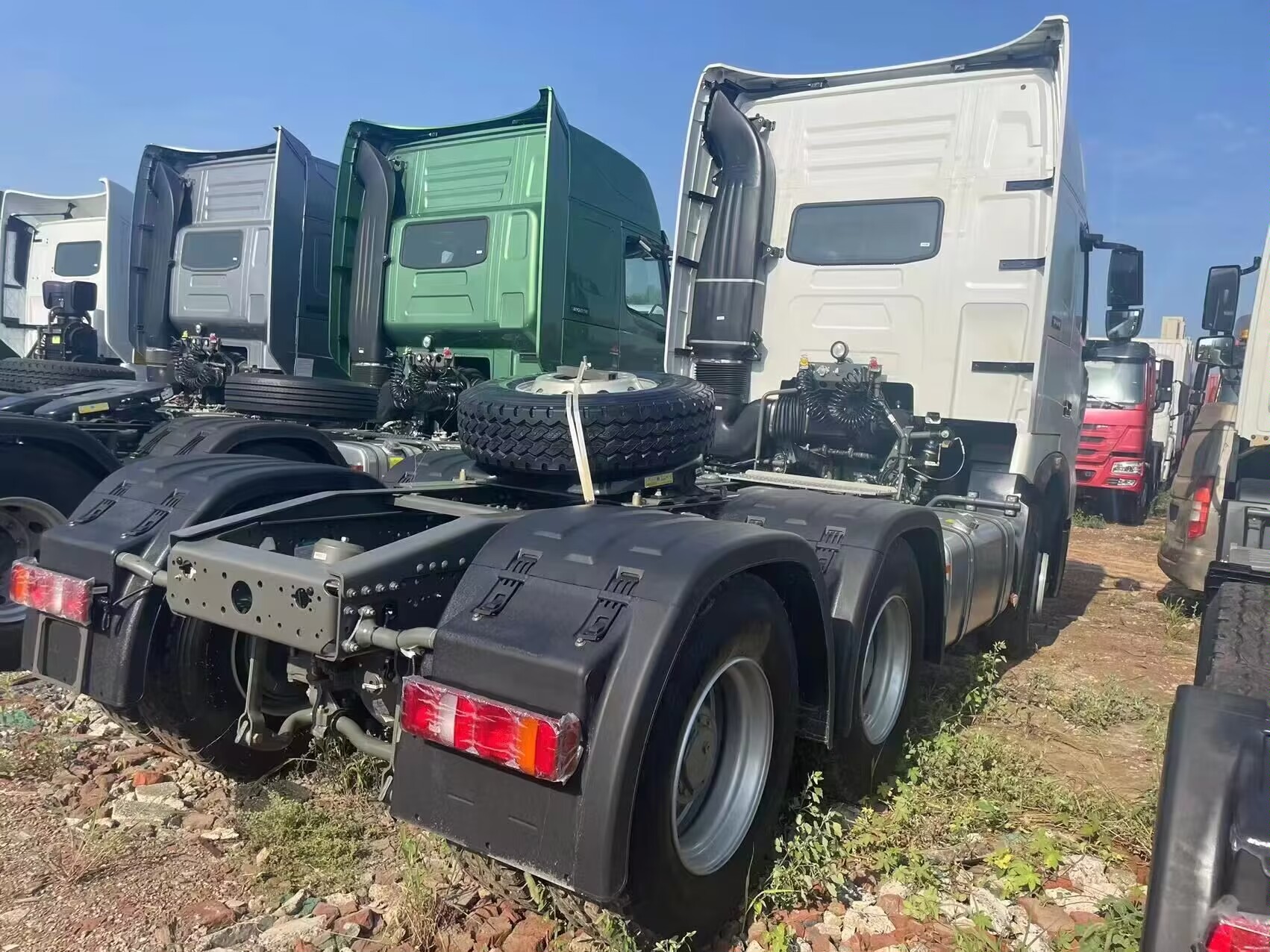

2. The pictures of loading on port:
3. The parameters of A7 Tractor Trucks:
6X4 HOWO A7 tractor truck
Cabin | Driving type 6x4 LHD |
|
A7-H Luxury cabin, with Air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref. with air condition | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6985×2550×3250 |
Wheel base (mm) | 3225+1350 | |
Wheel track (front/rear) (mm) | 2027/1830 | |
Approach/Departure angle(°) | 15/46 | |
Weight in KGS | Tare Weight | 9200 |
Hauling Capacity | 50000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 2x16000 | |
Max. driving speed（km/h） | 101 | |
Engine | Brand | Sinotruk |
Model | D12.42 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 420HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710, 10-speed forward ，2 reverse gears | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Steering Gear | ZF8098, power steering, hydraulic steering with power assistance from Germany | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
