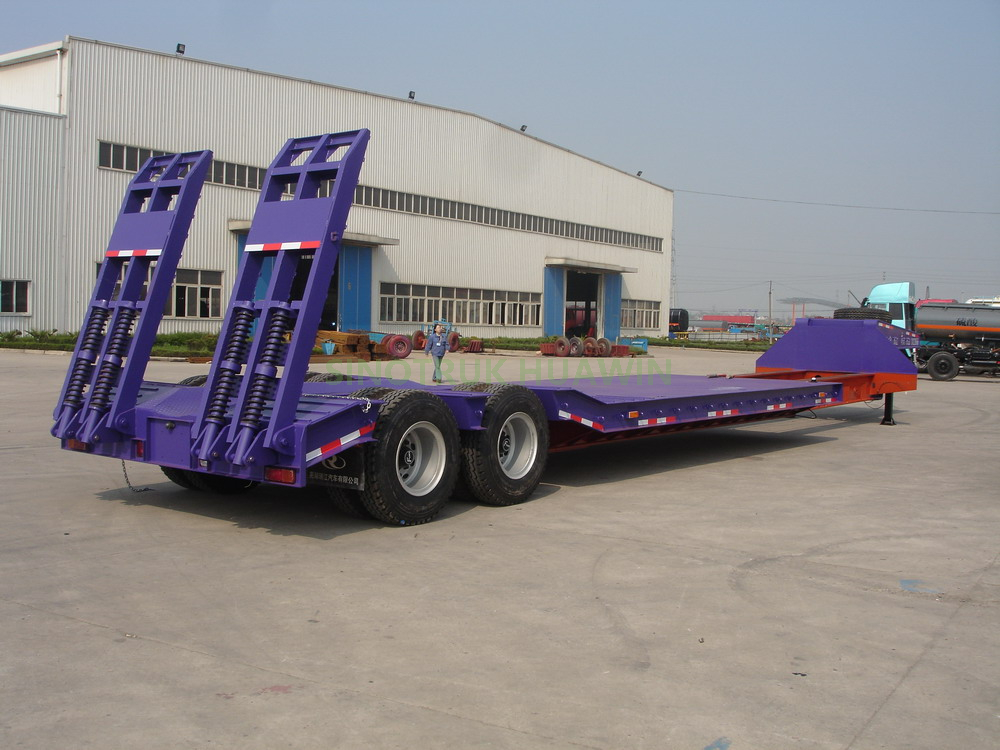

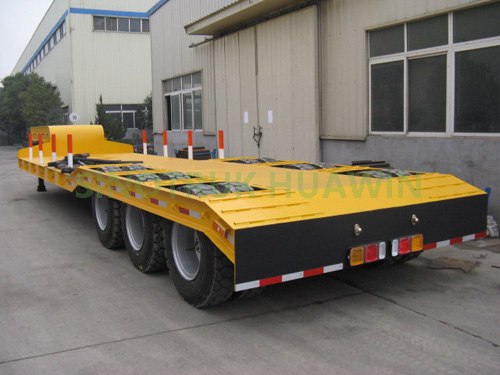

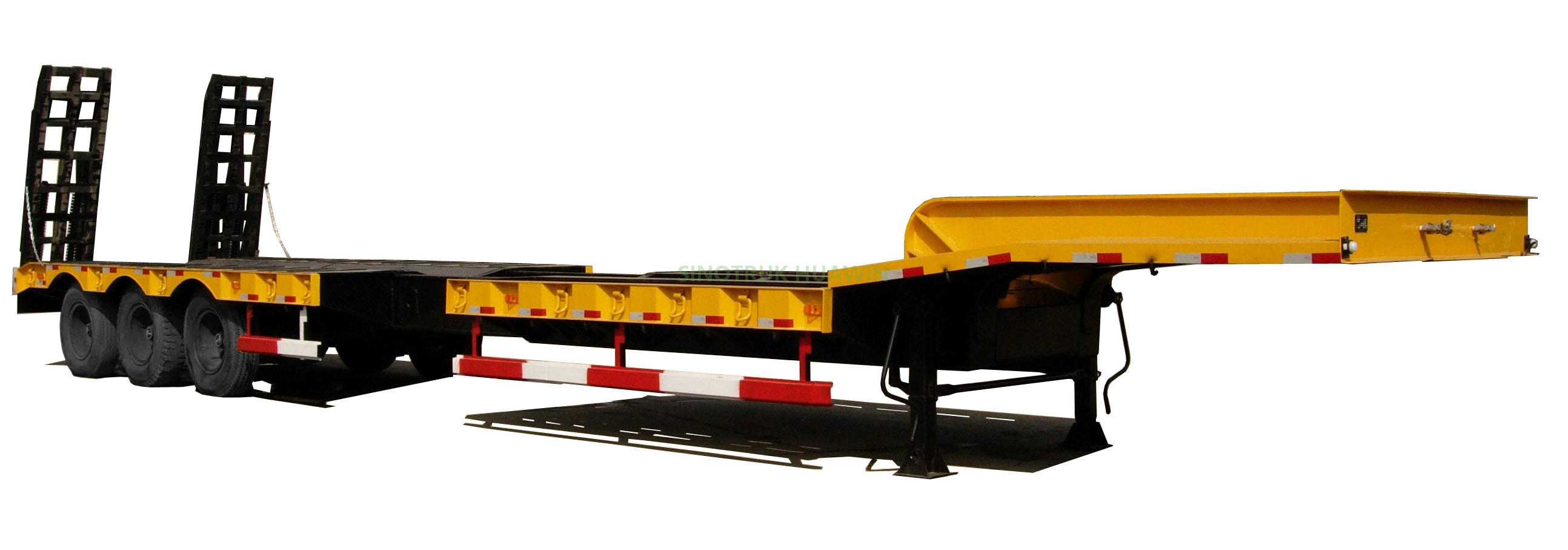

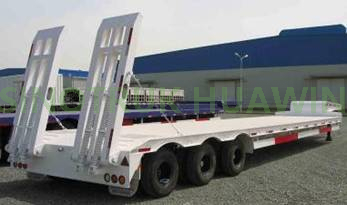

SINOTRUK Hydraulic Extendable Lowbed Truck Semi Trailer

Sinotruk extendable lowbed semi trailer for heavy duty & special transports. Removable gooseneck and length-optimised loading platform and the low loading height can meet your needs.

Quantity:
  • Sinotruk

Extendable Low Bed Semi Trailer


SPECIFICATIONS

Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes

Axle

3 axles / 4 axles

Brand Name: BPW, L1, FUWA, HJ

Suspension

Mechanical suspension with leaf spring or air suspension with air bag

King Pin

JOST brand 2.0’’ Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Tire

215/75R17.5, 235/75R17.5

Braking System

WABCO RE 4 relay valve; T 30/30+T30 Spring brake chamber; 40L air tank

Painting

Complete chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of final paint

Extension

Left Right or Front Rear

Ramp

Hydraulic lifting ramp

Others

With power units,, pneumatic spare tire carrier


Remarks:

1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts beam, axle, landing gear or within 100000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
