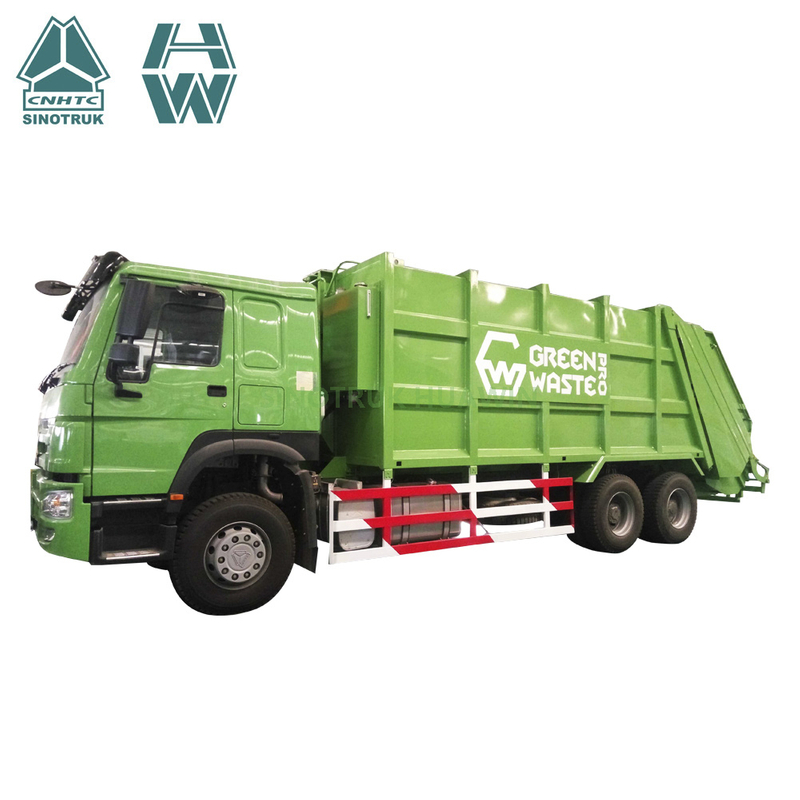

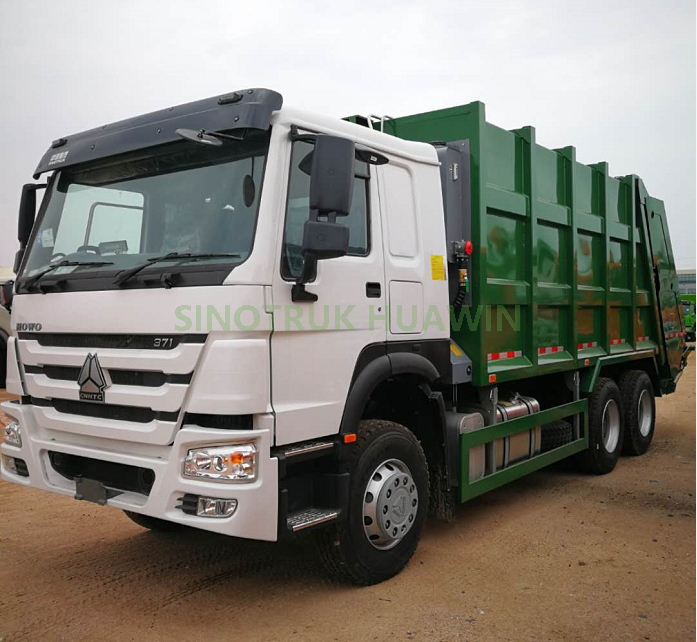

Sinotruk Howo 6x4 Garbage Compactor Truck

Sinotruk howo high performance 20 CBM garbage compactor collection truck is complete, easy to operate, garbage loading, the hydraulic drive and electronic program controller control, accurate, reliable performance, performance and reliable. Full volume utilization rate can reach more than 97%.

  • Sinotruk

                                       SINOTRUK HOWO 6X4 Garbage Compactor


Driving type 6x4      LHD

HW76 Cab, with A/C and two seats, one bed, 70°hydraulically tillable to the front
Vehicle Main DimensionsOverall dimensions (L x W x H)mm9800×2500×3290
Wheel base  (mm)3825+1350
Wheel track  (front/rear) (mm)2022/1830

Weight in KGS

Tare Weight15000
Front axles loading capacity1x7000
Rear axles loading capacity2x16000
Max. driving speed(km/h)90




4-stroke direct injection , 6-cylinder in-line    with water cooling, turbo-charging and          inter-cooling
Horse Power(HP)336 HP
Emission standardEuro
Gearbox HW19710, 10-speed forward and 2-reverse
ClutchReinforced diaphragm clutch, diameter 430mm
Steering German ZF8098, power steering, hydraulic steering with power assistance
Oil tank 400 L
Tire 12R22.5 tubeless tire, 11pcs including one spare tire
Specialized Device
Boday volume20 CBM
Filler volume2 CBM
Cycle Time of Filling25 S
Lifting Time of Filler10 S
Max.Compression Force25MPA
