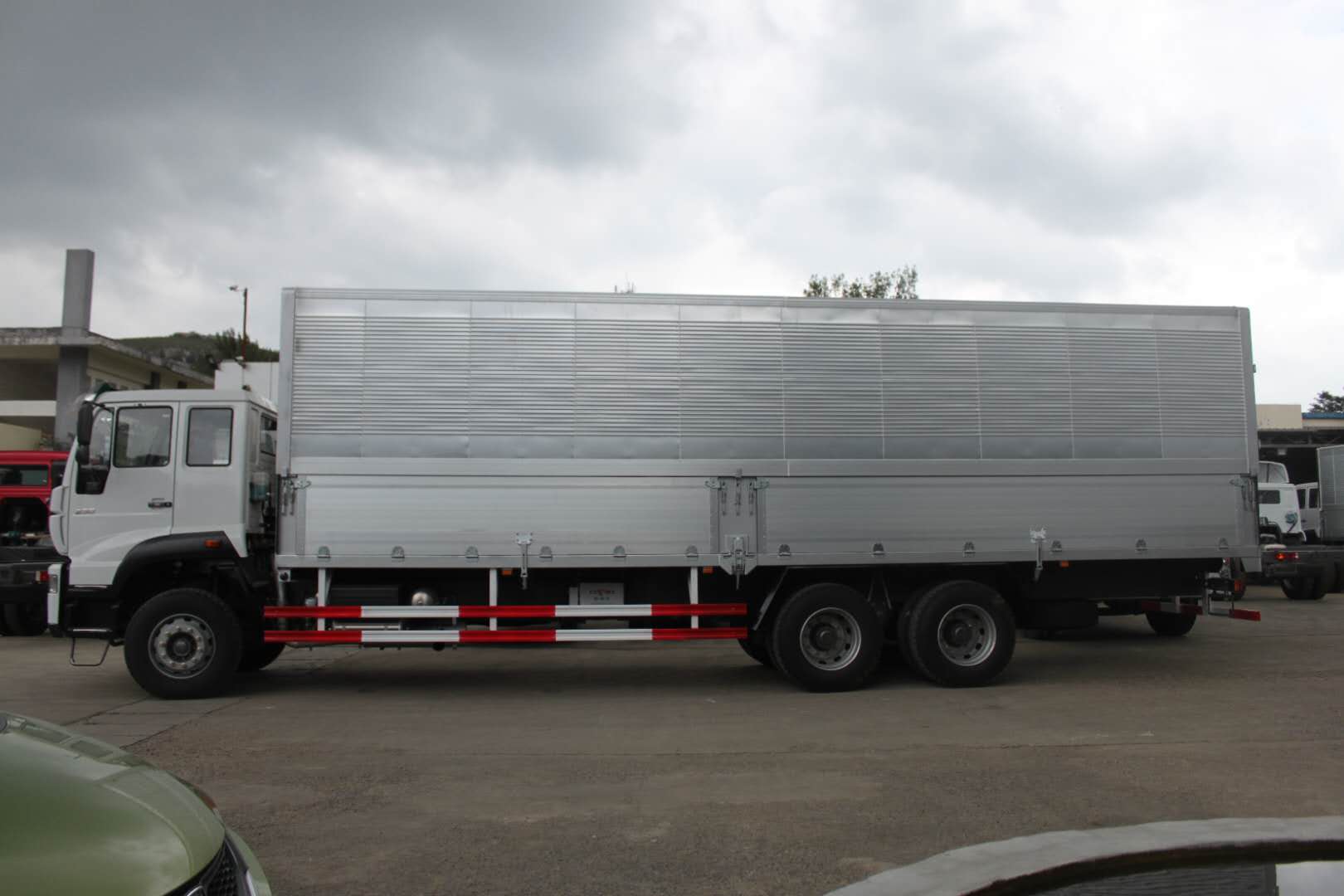

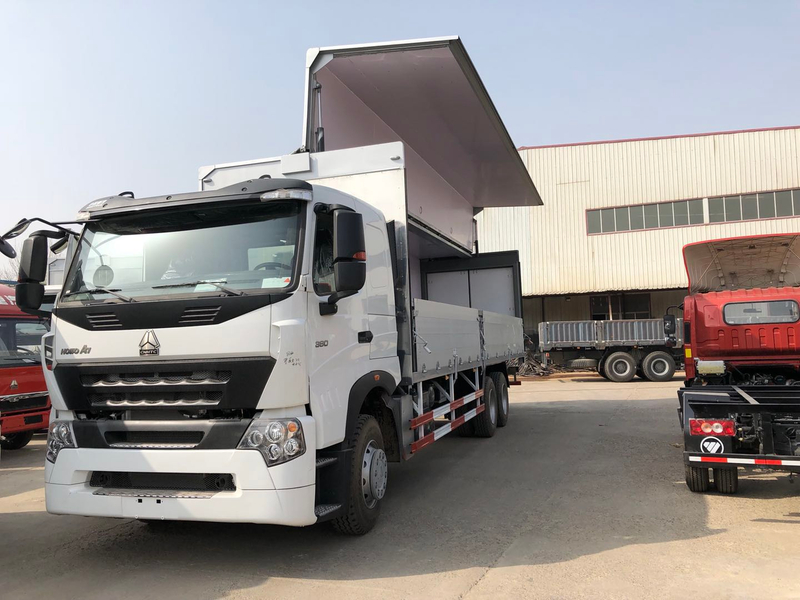

Sinotruk Howo A7 6X4 Wing Van Truck

Sinotruk howo A7 6X4 10 wheeler wing van truck’s Outer wall is aluminum sheets. Wing Van Length is 9000mm. It’s suitable for Logistics business, for transport all kinds of goods, such as machine, equipment, coal and so on.

Quantity:
  • Sinotruk

A7 6X4 Wing Van Truck-Wing Van Length is 9000mm

Truck ChassisDriving type 6x4, LHD
Cabin

A7-W luxury cab, low-roof cabin, with T7 face, with two seats and one bed and air conditioner


Vehicle Main Dimensions

Overall dimensions (L x W x H)mm11700x2500x3930
Wheel base (mm)5825+1350



Weight in KGS

Tare Weight13100
Front axles HF9 loading capacityHF9, 1x9000
Rear axles HC16 loading capacityHC16, 2x16000
Total loading capacity28000





Engine

BrandSINOTRUK
ModelD10.38-40


Type

4-stroke direct injection, 6-cylinder in-line

with water cooling, turbo-charging and inter-cooling

Horse Power(HP)/(RPM)380HP
Emission standardEuro IV
GearboxHW19710, 10 forward & 2reverse
ClutchReinforced diaphragm clutch 430
Steering GearPower steering, hydraulic steering with power assistance
Fuel tank (L)400L
Tire 12R22.5 tubeless tire, 11pcs including one set spare tire

Wing van box

Wing van box dimensions (L x W x H)mm9000mmx2400mmx2400mm(800mm+1600mm)
MaterialOuter wall: Aluminum sheets

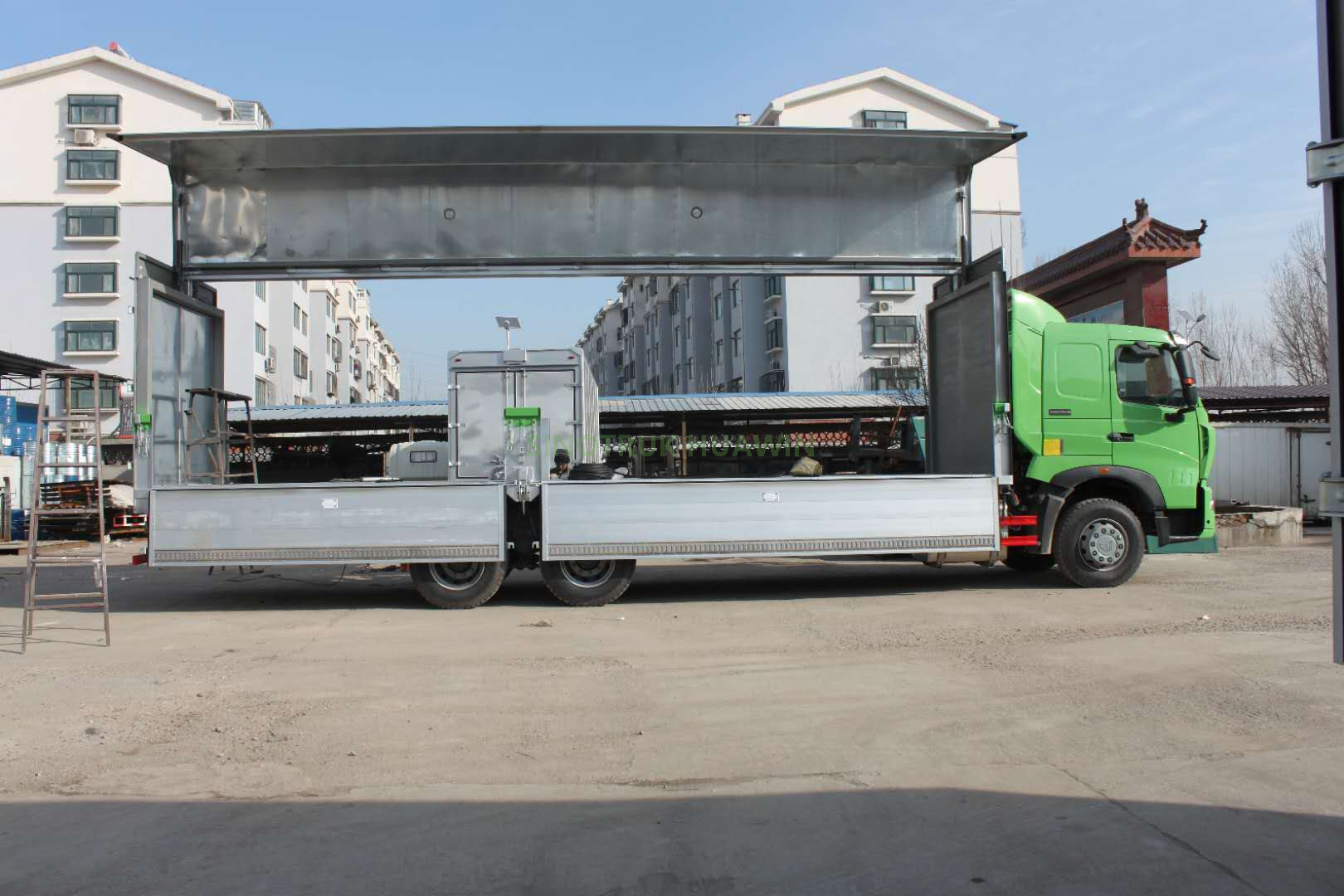

Wing van boxTwo parts: Upper part with electrical lifter; Lower part with manual operation, like the reference picture below
DoorOne rear door


Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
