100T 3 Lines & 6 Axles Lowbed Semi Trailer

Sinotruk 3 Lines & 6 Axles lowbed semi trailer for heavy duty & special transports. Removable gooseneck and length-optimised loading platform and the low loading height can meet your needs.
Quantity:
  • SGZ
  • Sinotruk

                3 Lines & 6 Axles Lowbed Semi Trailer

DIMENSIONS

Overall  Length

13900mm

头像

Overall  Width

3100mm

Payload

100000kg

Work deck length:

9000mm

Work deck   Height:

910mm

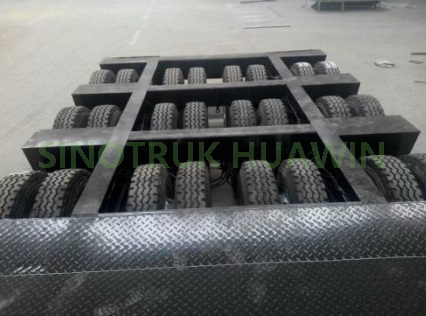

Photo for   reference. Final products can be made according to exact requirements

SPECIFICATIONS

I Beam& Chassis

Heavy duty and extra   durability designed I beam; Opting for high tensile steel Q345B, welded by   automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height   500mm, Bottom Flange 20mm,width 140mm.

Axle

3 lines & 6 axles

Suspension

Heavy duty mechanical   suspension

Floor

5mm checker plate

King Pin

JOST brand 2” Bolt-in   King Pin

Landing Gear

JOST brand Two-speed,   manual operating, heavy duty landing gear

Tire

8.25R20 tire, in total   25 pieces, including one spare tire

Ramp

Mechanical ramp with   spring

Spare Tire

One set of spare tire   including a carrier

Braking System

WABCO RE 4 relay valve; T30/30+T30   Spring brake chamber; 40L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of   anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

头像

3线6轴-4


Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
