2 Axle Oli Tanker Semi Trailer (35CBM)

2 Axle Oli Tanker Semi Trailer (35CBM)
Availability:
Quantity:

2 Axle Oli Tanker Semi Trailer (35CBM)

Main Dimensions

Overall   Length

11200mm

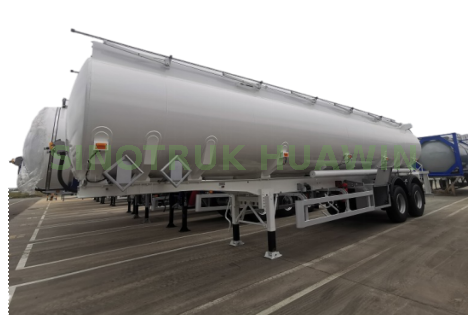

Oil tank semi trailer

Overall   Height

2800mm

Tare   Weight

11000KGS

Photo   only for reference, final product can be made according to exact requirements

Tank Body

Shape

Oval Cylinder

Total Volume(m3

35CBM

Tanker Body Material

5mm-6mm stainless steel / 304 or 316L stainless

Fifth wheel

JOST 2.0 Assembly

Landing Gear

Lifting outriggers

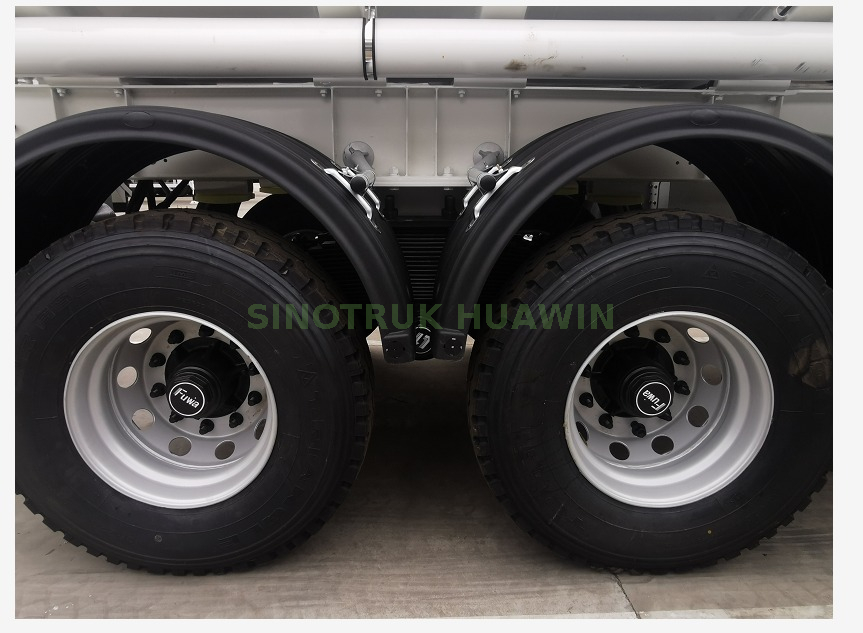

Axle

2 Axles  FUWA Brand 12 ton

Suspension

single point suspension

Wheel rim

9.0- 22.5 wheel rim, 9 pieces

Tire

13R22.5 tubeless tire with one spare tire, 9 pieces

Air control valve

WABCO brand 4 holes 2pcs

Air chamber

T30/30 double air chamber 4 sets, T30 single air chamber 2 sets

Spare tire lifter

Chain type

Fender rubber

Standard

Side fence

Standard




Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.


Our certificates

Certificate



HUAWIN's purpose has always been customer satisfaction from start to end.

Through the establishment of research, efficiency, integrity and pragmatic service networks, HUAWIN has standardized quality service.

We will continue to examine, in-depth, of our services, our customers, and the market to find new innovative service concepts, improve our service management.

We will make sure that every one of our product and service suppliers, parts suppliers, parts distributors can join in to better serve our customers, we will stand side by side to continuously build our brand image, creating the golden standard in the truck industry.


Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )

Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....


Factory view

factory view

workshop



About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.
