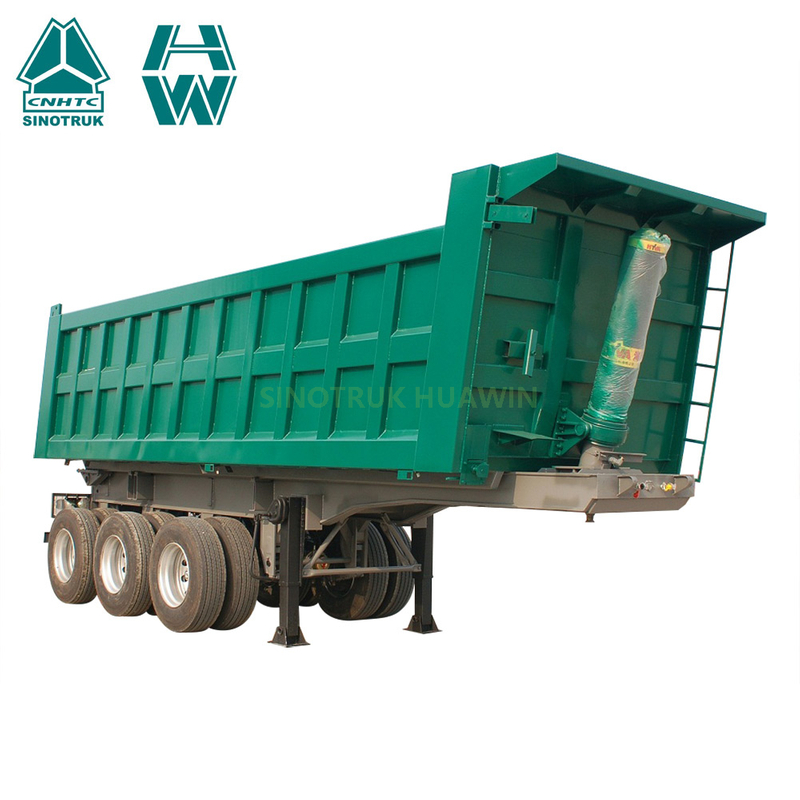

3 Axle 40 Tons Sinotruk Huawin Mining Dumper Dump Tipper Semi Trailer

Sinotruk 3 axles tipper semi trailer, which can carry goods volume can reach 40cbm, the weight can reach 45 tons, greatly improving the work efficiency. Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.
Quantity:
  • SGZ
  • SINOTRUK
                                                   Sinotruk 25CBM 3 axle tipper semi trailer for sale
DIMENSIONS
Tare  Weight 12000kgs
Payload 45000kgs
Overall  Length 8900mm
Overall  Width 2465mm
Dump body size  7250mmx2300mmx1500mm
DUMPER BODY
Volume 25 m3
Side Wall 6mm thickness
Front Wall and floor 8mm thickness
SPECIFICATION


Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 6mm and 8mm ; Bottom Flange 16mm,width 140mm.


Axle

3 axles
BPW/ FUWA/HJ/L1 Brand 12 ton
Hydraulic System One set of HYVA cylinder
Suspension German design mechanical suspension
Leaf Spring 13-piece leaf spring. 11x100
King Pin JOST brand 2” Bolt-in King Pin
Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim 9.0R22.5 wheel rim, 13 pieces

1 (4)

Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
