3 Axles 4 Axles Stretchable Lowbed Semi Trailer for Australia

SINOTRUK 3 Axles Stretchable Lowbed Semi Trailer is wide, the low loading height and left side and right side can be extendable can meet your special needs. The model is very popular in Australia market. It can be adjusted to fit any size or brand of turbine blade for your transportation needs.
  • SGZ
  • Sinotruk

 3 Axle Retractable Lowbed Semi Trailer


Tare Weight



Overall Length


Overall Width


Overall Height




Work   deck length:


Work deck Height:

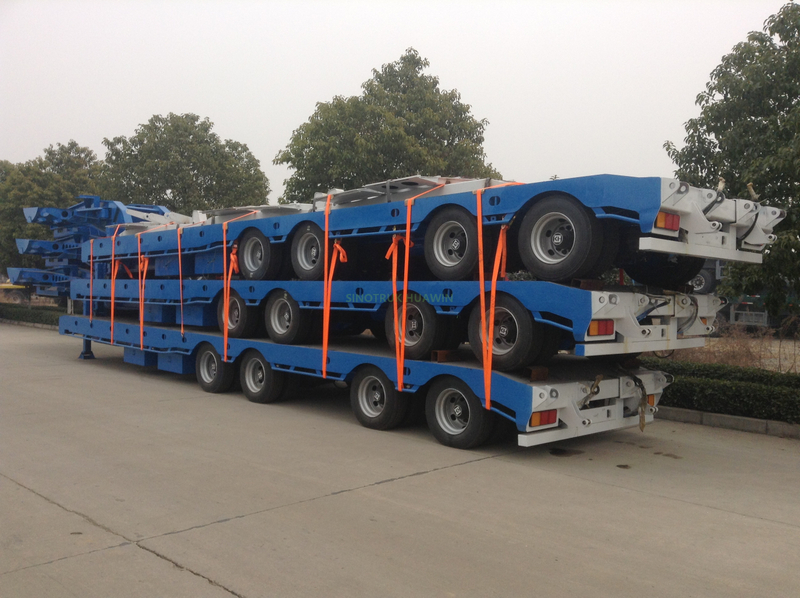

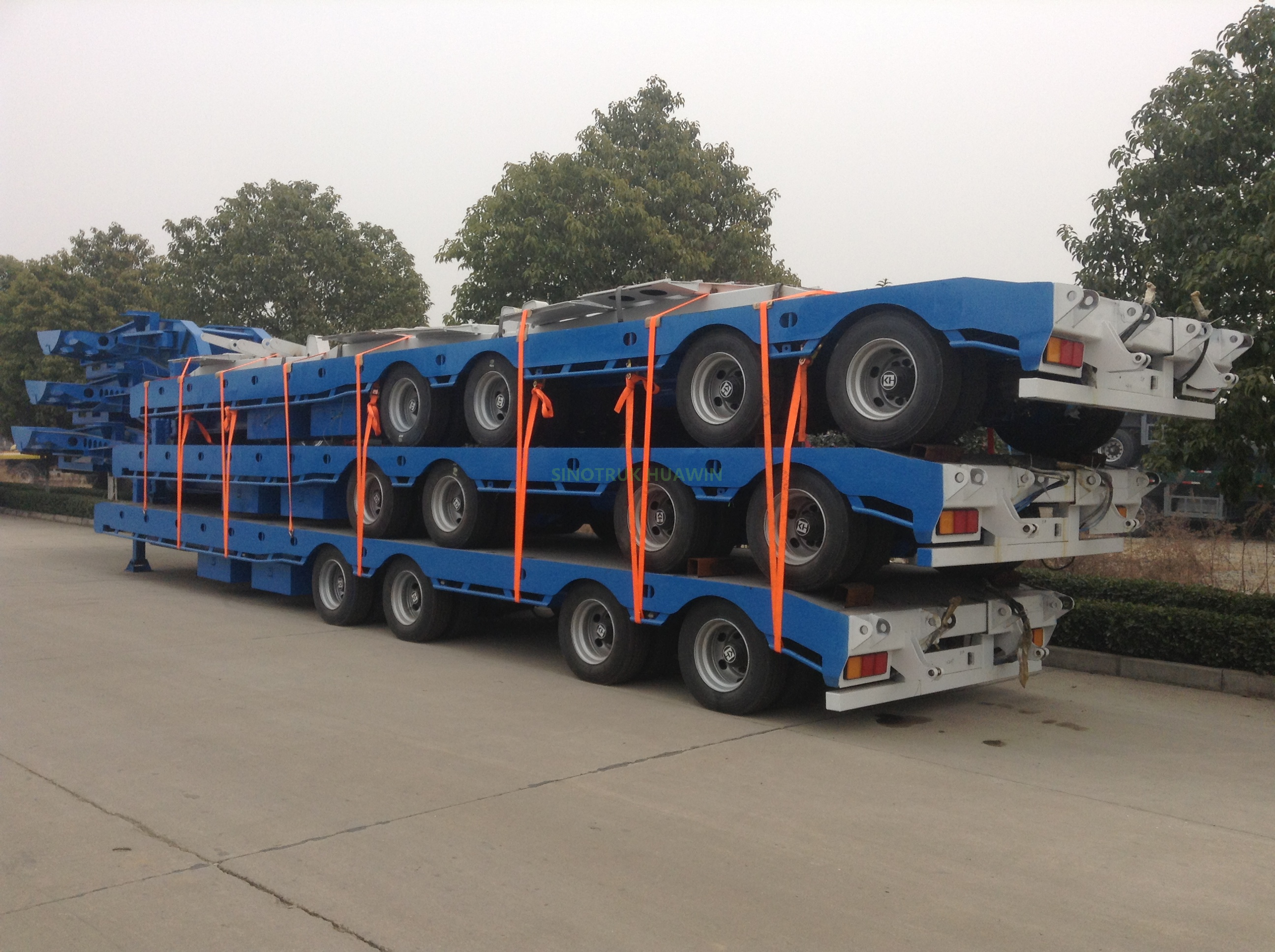

Photo for reference. Final products   can be made according to exact requirements


I Beam& Chassis

Heavy duty and extra   durability designed I beam; Opting for high tensile steel Q345B, welded by   automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height   500mm, Bottom Flange 20mm,width 140mm.


3 Axles

FUWA 11.5T, ADR: 35669


Air Reverse suspension, ADR: 30238


5mm checker plate

King Pin

JOST brand 2” Bolt-in   King Pin

Landing Gear

JOST brand C200 Two-speed,   manual operating, heavy duty landing gear

Wheel Rim

6.75-17.5 wheel rim, in   total 13 pieces


235/75R22.5 with one   spare tire, in total 13 pieces

Spare Tire

One set of spare tire   including a carrier

Container lock

12 twist locks

Manual air bag control

One set of FW53-AIR-64

Braking System

u  With ABS, Australian   standard, 4S/2M VCS2 ABS, 12V

u  6 pieces Spring brake   chamber 24/30-127mm, the push rod length is 175mm, FUWA brand

u  Two air tanks of 25L for   retractable plate, and another one is 46L air tank, FUWA brand


Complete Chassis sand blasting to clean rust, 1 coat of   anticorrosive prime, 2 coats of final paint


One standard tool box

Read   ladder

u  Hydraulic ladder

u  The hydraulic tube   should meet the standard of SAE100R1AT/EN854-1SN.

u  With balance   valve and install on ladder cylinder

u  With ladder bolt

u  With safety   valve


With ADR certificate for   the rear light and side lights.

Left   and right telescoping system

u  One set of cylinder

u  6 pieces diesel   generators

u  The hydraulic tube   should meet the standard of SAE100R1AT/EN853.


Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


1. Half one year quality guarantee for three key parts axles, land gear, beam or within 50000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
