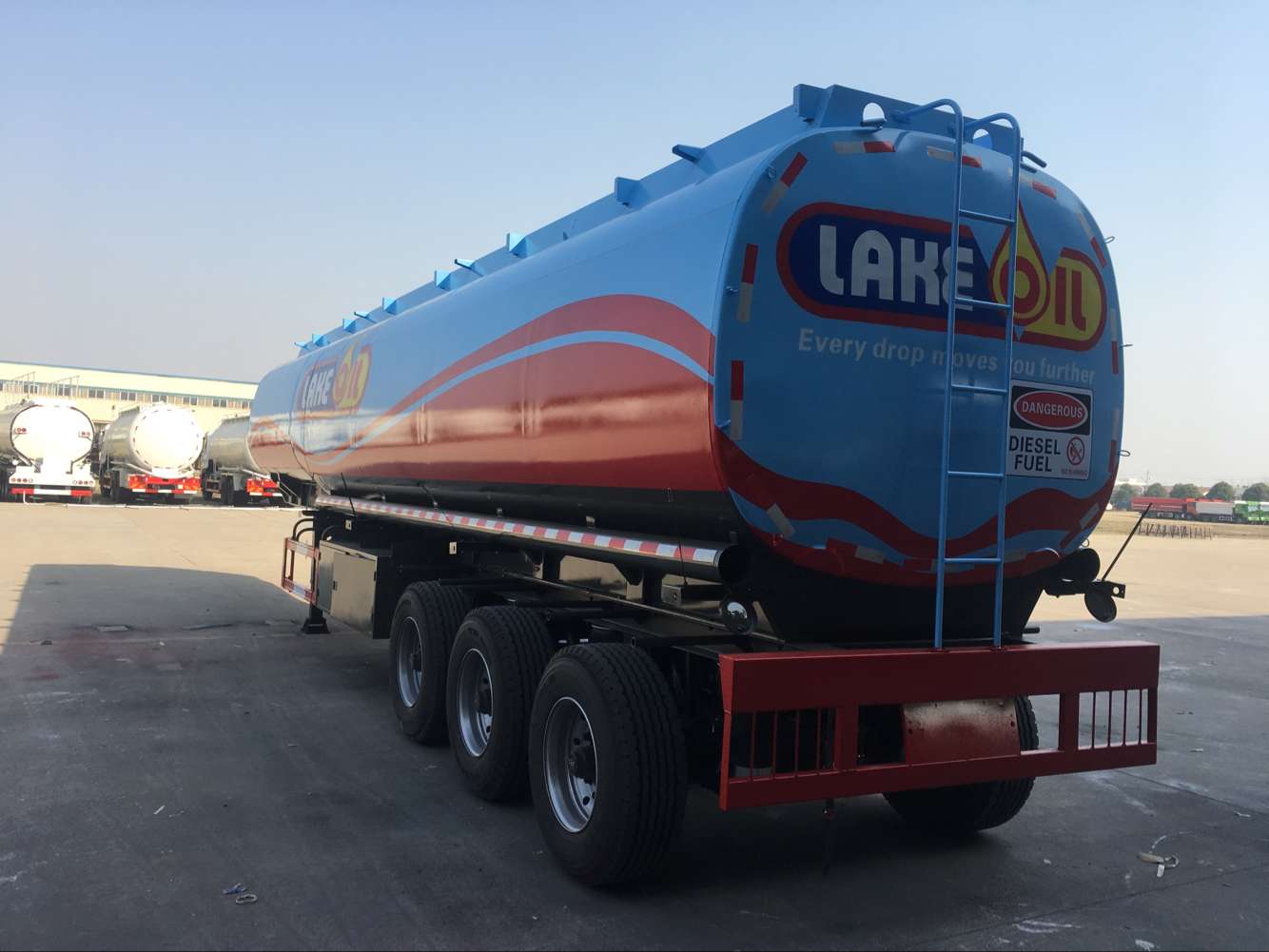

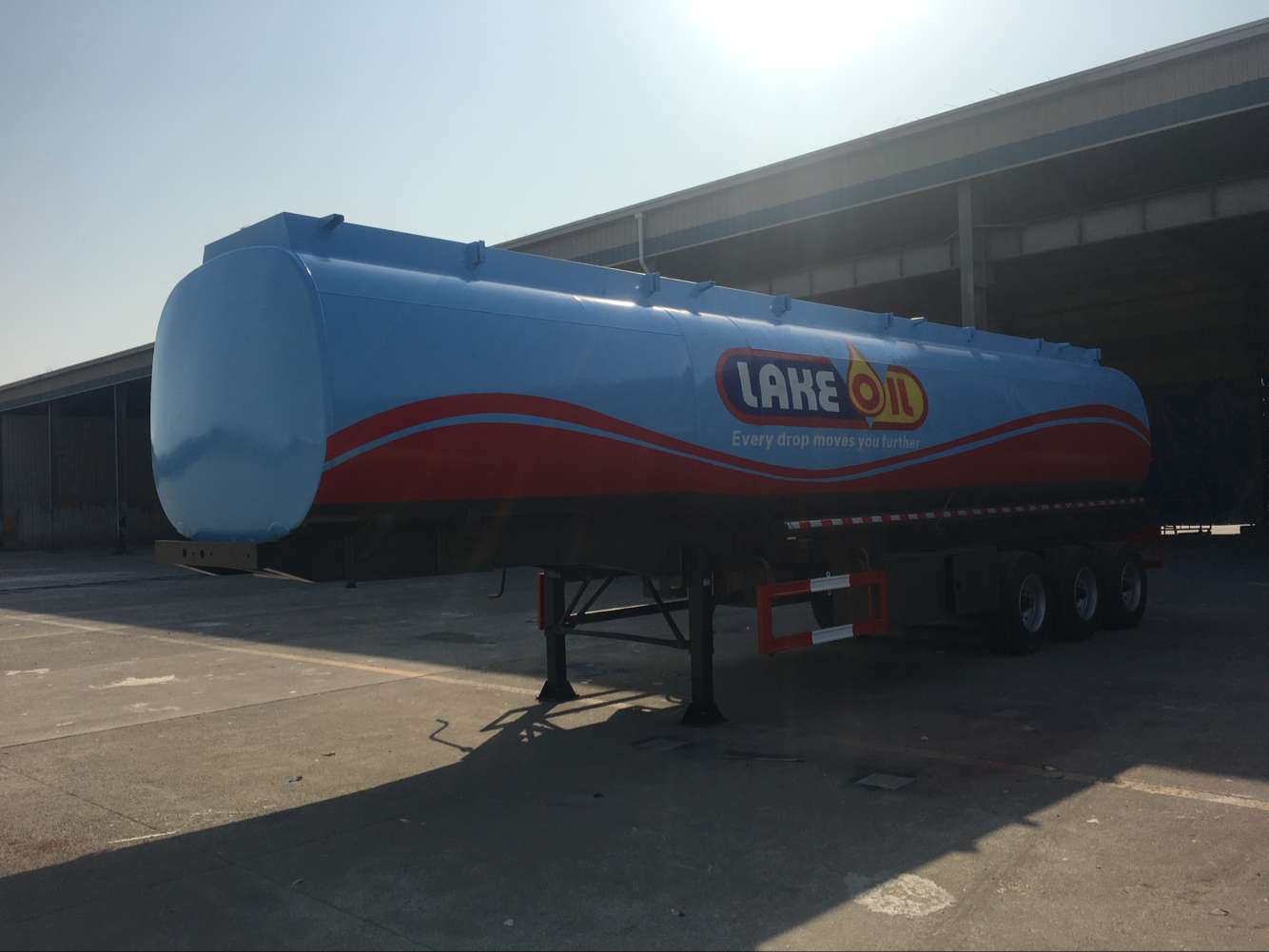

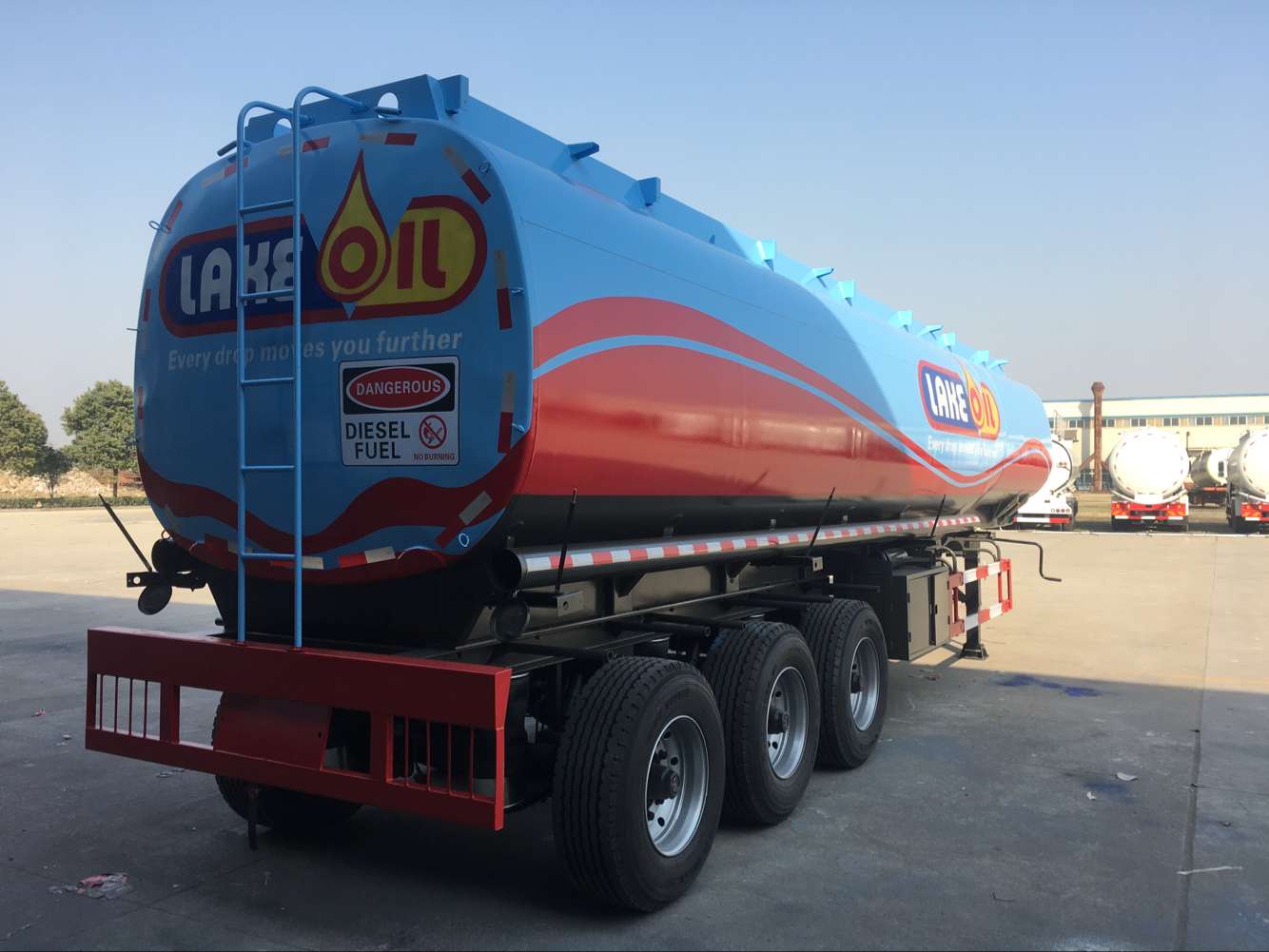

| 3 Axles Fuel Tanker Semi Trailer | |
Overall Size | 12000*2500*3650 mm |
Tare Weight | 9300 KGS |
Tank Body | |
Shape | Mono block Cylinder |
Total Volume | 42000 liters with 6 independent compartments, each compartment 7000 liters |
Tanker Body Material | 4 mm steel / Q610L high tensile strength steel |
End plate | 5 mm steel sheet/Q610L high tensile strength steel |
Manhole cover | Aluminum alloy API manhole cover, ∮500mm ,6 sets with 6 breather valve |
Bottom Valve | 6 sets of Aluminum 4” Pneumatic Bottom Valve |
Discharging valve | 6 sets ∮4” discharging valves |
Discharging Pipe | 4”rubber hose, 2 pcs |
Chassis | |
Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; |
Axle | 3*13 Ton BPW axle |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
King Pin | JOST brand 2” bolt-in king pin |
Suspension | Air suspension |
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40 L air tanks. |
Wheel rim | 11.75-22.5 wheel rim, 6 pieces |
Tire | 385/65R22.5 super single tyre, 6 pieces |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
