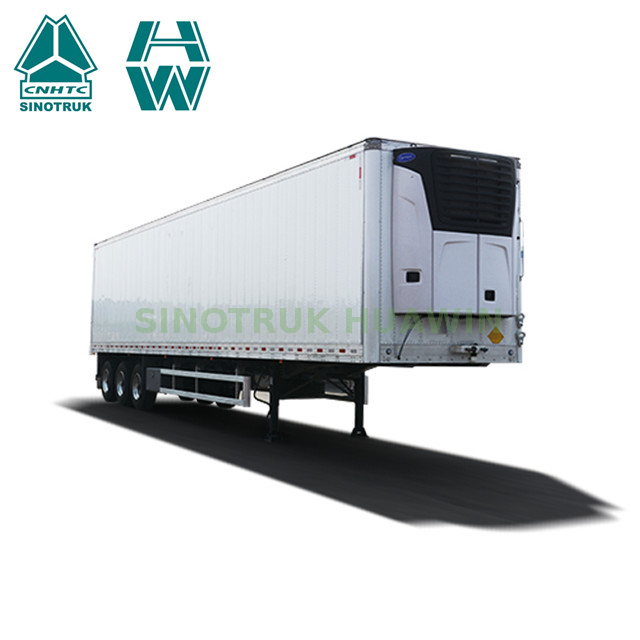

3 Axles Refrigerator Semi Trailer

Refrigerator trailer with independent power pack is a kind of semi-trailer with refrigerating device . Independent refrigeration unit means that the refrigeration unit has an independent power source. The middle layer is made of thermal insulation material, mainly using polyurethane foam material. Use high-strength glue on the four sides to glue the glass steel plate and the polyurethane foam material together to form a closed plate. Good heat preservation performance, beautiful appearance, light overall weight, high strength, no leakage, long service life, reaching the national A-level standard; customers can follow the actual use, the temperature can reach minus 18 degrees to minus 28 degrees,
The refrigerated semi-trailer can improve the comprehensive economic benefits of road transportation due to its large load capacity.
Quantity:

3 Axles Refrigerator Semi Trailer

DIMENSIONS

Tare Weight

9630 kg





Overall Length


14600 mm

Overall Width


2600 mm



Overall height

4150mm

Payload

30000 kg



Photo for reference. Final products can be made according to exact requirements


SPECIFICATIONS


I Beam & chassis

Heavy duty and extra durability designed I beam; welded by automatic Submerged-Arc processes.

Axle

3 axles. FUWA brand, 13 ton loading capacity.

Suspension

Spring suspension

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Tire

385/65R22.5 tubeless tire.

Spare Tire

One set of spare tire including a carrier

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Box

high density polyurethane for insulation.

Accessories

One standard tool box

Cooling system

American Karry brand.



Below Photo for your reference only,



Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.




Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. Half a year quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
