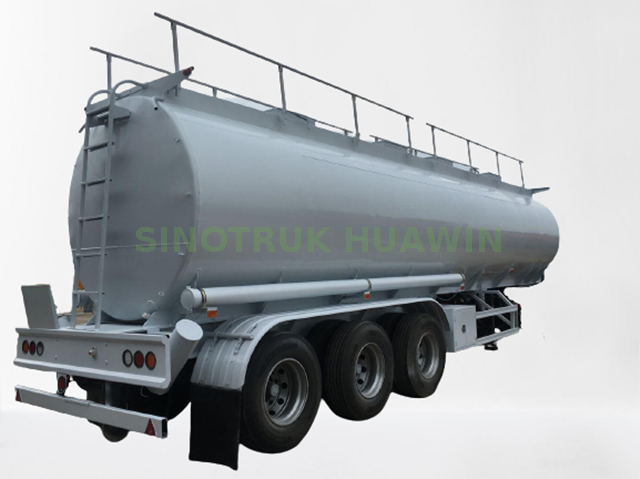

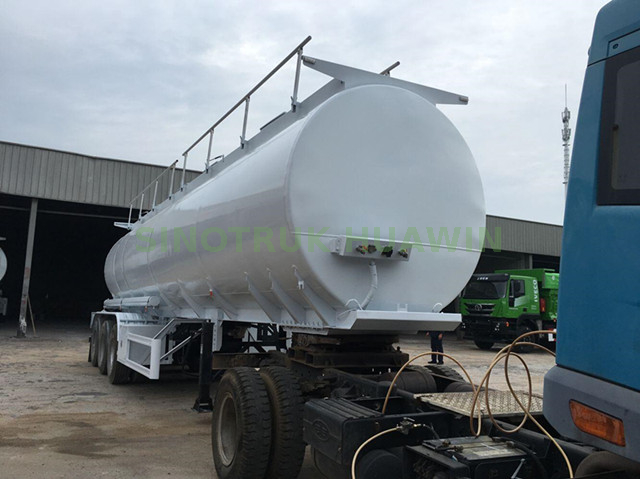

3 axle Stainless tanker semi trailer (36CBM)
Main Dimensions | |||
Overall Length | 11200mm |
| |
Overall Height | 2800mm | ||
Tare Weight | 11000KGS | ||
Photo only for reference, final product can be made according to exact requirements | |||
Tank Body | |||
Shape | Mono block Cylinder | ||
Total Volume（m3） | 36CBM | ||
Tanker Body Material | 5-6mm stainless steel / 304 or 316L stainless | ||
End plate | 6mm stainless sheet/ 304 or 316L stainless | ||
Manhole cover | Aluminum alloy API manhole cover, ∮500mm ,2 sets with 2 breather valve | ||
Bottom Valve | 2 sets of Aluminum API Pneumatic Bottom Valve | ||
Discharging valve | 1 sets ∮100mm discharging valves | ||
Discharging Pipe | 4”rubber hose, 2 pcs | ||
Chassis | |||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||
Axle | 3 axles | ||
BPW/FUWA/HJ/L1 Brand 12 ton | |||
Suspension | German design heavy duty mechanical suspension | ||
Leaf Spring | 13-pcs | ||
King Pin | JOST brand 2” bolt-in king pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel rim | 9.0- 22.5 wheel rim, 13 pieces | ||
Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box | ||
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
