| Quantity: | |
|---|---|
DIMENSIONS | |||
Tare Weight | 7700kg |
| |
Overall Length | 12400mm | ||
Overall Width | 2480mm | ||
Payload | 45000kg | ||

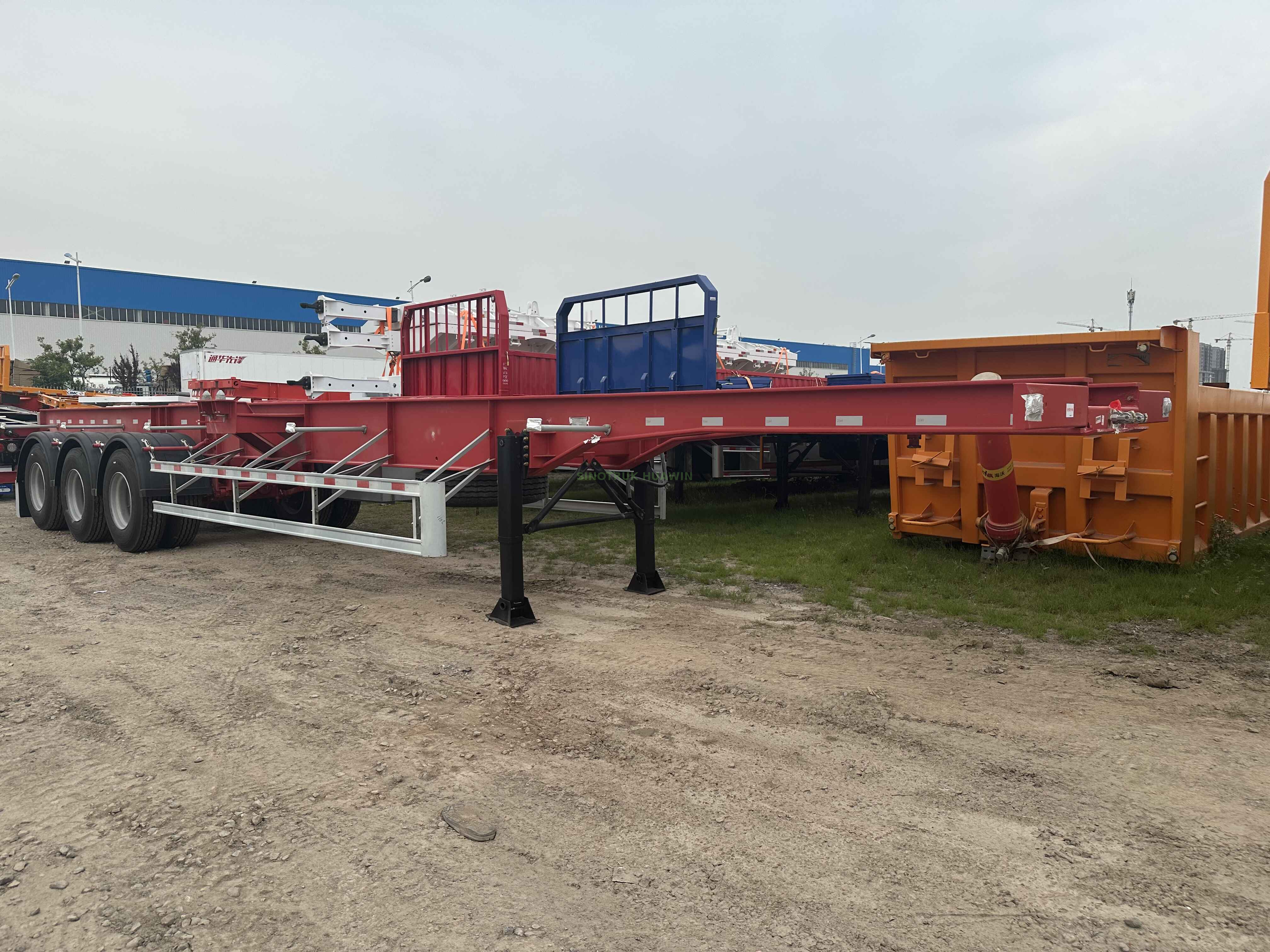

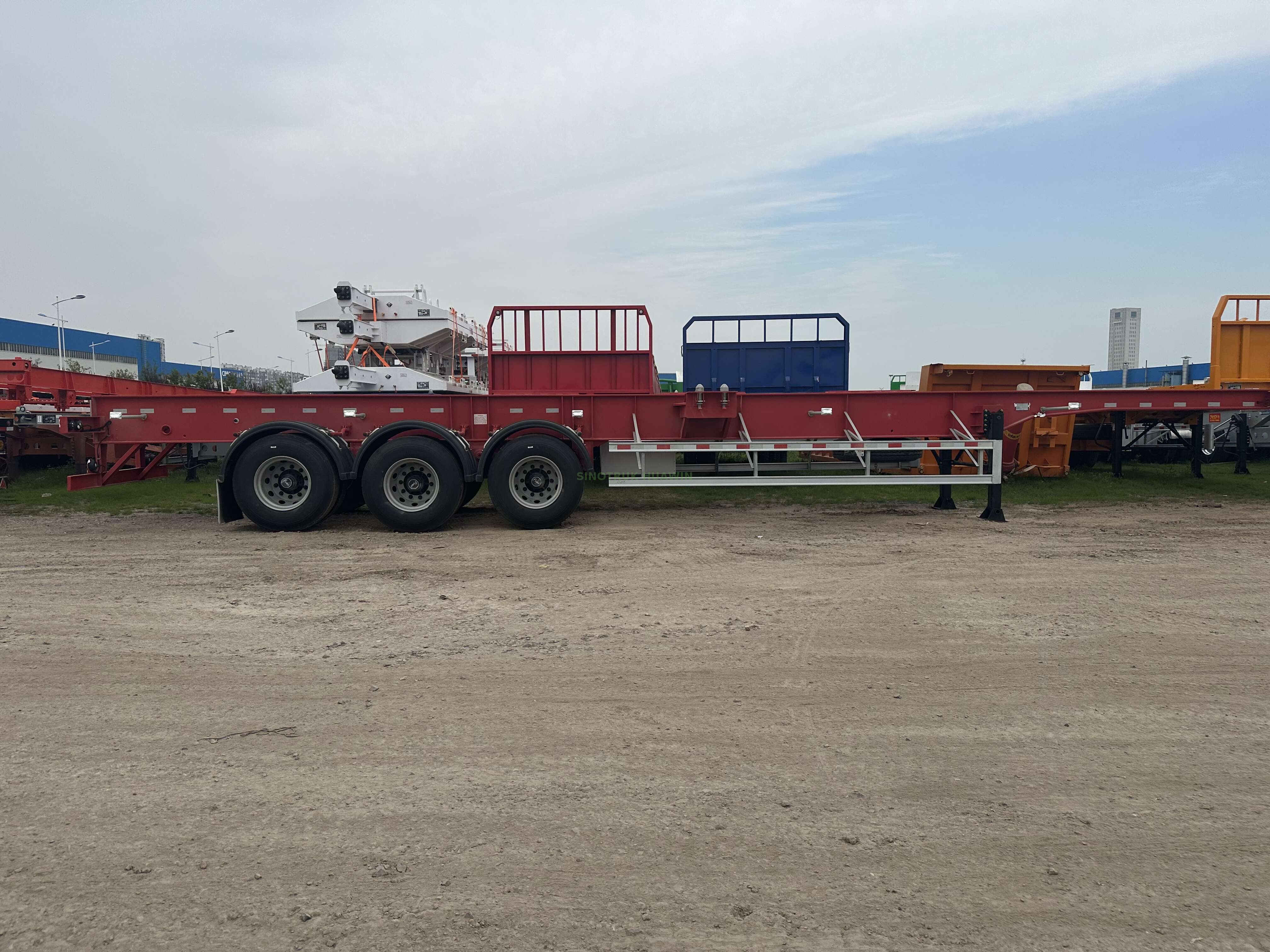

Photo for reference. Final products can be made according to exact requirements | |||
SPECIFICATIONS | |||
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
Axle | 3 axles | ||
BPW/ FUWA/HJ/L1 Brand 12 ton | |||
Suspension | Heavy duty mechanical suspension | ||
Floor | 3mm checker plate | ||
Leaf Spring | 13 piece Leaf spring | ||
King Pin | JOST brand 2” Bolt-in King Pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel Rim | 9.0-22.5 wheel rim 13 pieces | ||
Tire | 12R22.5 tire with one spare tire. 13 pieces | ||
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | ||
Spare Tire | One set of spare tire including a carrier | ||
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box | ||
The 40FT 3 axle flatbed semi-trailer features a sleek and functional design that combines practicality with durability. Its exterior showcases a flatbed platform without side panels or fences, providing a spacious and open loading area for easy access and versatile cargo handling.
The trailer is built with a robust chassis, utilizing high-quality materials such as high-strength steel, ensuring superior strength and longevity. Its 3-axle configuration enhances stability and weight distribution, enabling smooth and secure transportation of 40-foot containers and various large cargoes.
With its adjustable trailer chassis, the flatbed semi-trailer offers the flexibility to accommodate different cargo sizes and weight distributions. This adaptability is crucial for optimizing load capacity and ensuring safe transportation of various oversized or irregularly shaped goods.
The trailer is equipped with a reliable braking system and suspension system, designed to provide enhanced control and stability during operation. It also features advanced coupling mechanisms for secure attachment to the tractor unit, ensuring a seamless connection and efficient towing performance.
The 40FT 3 axle flatbed semi-trailer's exterior design, characterized by its open flatbed platform, not only facilitates easy loading and unloading but also allows for efficient handling of goods. This makes it a preferred choice for industries such as logistics, construction, and freight forwarding that require versatile transportation options for oversized cargoes and 40-foot containers.
Overall, the 40FT 3 axle flatbed semi-trailer combines a sleek and practical exterior with durable construction, offering a reliable solution for the safe and efficient transportation of large cargoes.
1. What is the load-carrying capacity of this semi-trailer?
Answer: The 40FT 3 axle flatbed semi-trailer is constructed using high-strength steel, providing excellent load-carrying capacity. The specific load capacity can be customized based on the vehicle's design and specifications to meet the customer's requirements. Generally, it is capable of efficiently transporting 40-foot containers and large cargoes, ensuring safe and stable transportation.
2. Is this semi-trailer suitable for irregularly shaped cargo?
Answer: Yes, the flatbed structure of the 40FT 3 axle flatbed semi-trailer offers an open cargo platform that is suitable for irregularly shaped cargo. Customers can easily load various sizes and shapes of cargo onto the flatbed, ensuring convenient loading and unloading operations and flexible cargo handling.
3. Is this semi-trailer suitable for loading and transporting 40-foot containers?
Answer: Yes, the 40FT 3 axle flatbed semi-trailer is specifically designed for loading and transporting 40-foot containers. Its flatbed structure and appropriate dimensions ensure that containers can be securely and stably placed on the semi-trailer, providing convenient loading and unloading operations.
4. How stable is this semi-trailer?
Answer: The 40FT 3 axle flatbed semi-trailer features a 3-axle design, providing excellent stability. Its sturdy chassis structure and proper weight distribution ensure balance during transportation, offering stable driving and safe transportation.
5. How is the safety performance of this semi-trailer?
Answer: The 40FT 3 axle flatbed semi-trailer is equipped with reliable braking and suspension systems, ensuring excellent safety performance. These systems ensure precise braking and stable suspension during transportation, offering better control and reducing the risk of accidents, thus ensuring the safe transportation of cargo.
DIMENSIONS | |||
Tare Weight | 7700kg |
| |
Overall Length | 12400mm | ||
Overall Width | 2480mm | ||
Payload | 45000kg | ||
Photo for reference. Final products can be made according to exact requirements | |||
SPECIFICATIONS | |||
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | ||
Axle | 3 axles | ||
BPW/ FUWA/HJ/L1 Brand 12 ton | |||
Suspension | Heavy duty mechanical suspension | ||
Floor | 3mm checker plate | ||
Leaf Spring | 13 piece Leaf spring | ||
King Pin | JOST brand 2” Bolt-in King Pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel Rim | 9.0-22.5 wheel rim 13 pieces | ||
Tire | 12R22.5 tire with one spare tire. 13 pieces | ||
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | ||
Spare Tire | One set of spare tire including a carrier | ||
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box | ||
The 40FT 3 axle flatbed semi-trailer features a sleek and functional design that combines practicality with durability. Its exterior showcases a flatbed platform without side panels or fences, providing a spacious and open loading area for easy access and versatile cargo handling.
The trailer is built with a robust chassis, utilizing high-quality materials such as high-strength steel, ensuring superior strength and longevity. Its 3-axle configuration enhances stability and weight distribution, enabling smooth and secure transportation of 40-foot containers and various large cargoes.
With its adjustable trailer chassis, the flatbed semi-trailer offers the flexibility to accommodate different cargo sizes and weight distributions. This adaptability is crucial for optimizing load capacity and ensuring safe transportation of various oversized or irregularly shaped goods.
The trailer is equipped with a reliable braking system and suspension system, designed to provide enhanced control and stability during operation. It also features advanced coupling mechanisms for secure attachment to the tractor unit, ensuring a seamless connection and efficient towing performance.
The 40FT 3 axle flatbed semi-trailer's exterior design, characterized by its open flatbed platform, not only facilitates easy loading and unloading but also allows for efficient handling of goods. This makes it a preferred choice for industries such as logistics, construction, and freight forwarding that require versatile transportation options for oversized cargoes and 40-foot containers.
Overall, the 40FT 3 axle flatbed semi-trailer combines a sleek and practical exterior with durable construction, offering a reliable solution for the safe and efficient transportation of large cargoes.
1. What is the load-carrying capacity of this semi-trailer?
Answer: The 40FT 3 axle flatbed semi-trailer is constructed using high-strength steel, providing excellent load-carrying capacity. The specific load capacity can be customized based on the vehicle's design and specifications to meet the customer's requirements. Generally, it is capable of efficiently transporting 40-foot containers and large cargoes, ensuring safe and stable transportation.
2. Is this semi-trailer suitable for irregularly shaped cargo?
Answer: Yes, the flatbed structure of the 40FT 3 axle flatbed semi-trailer offers an open cargo platform that is suitable for irregularly shaped cargo. Customers can easily load various sizes and shapes of cargo onto the flatbed, ensuring convenient loading and unloading operations and flexible cargo handling.
3. Is this semi-trailer suitable for loading and transporting 40-foot containers?
Answer: Yes, the 40FT 3 axle flatbed semi-trailer is specifically designed for loading and transporting 40-foot containers. Its flatbed structure and appropriate dimensions ensure that containers can be securely and stably placed on the semi-trailer, providing convenient loading and unloading operations.
4. How stable is this semi-trailer?
Answer: The 40FT 3 axle flatbed semi-trailer features a 3-axle design, providing excellent stability. Its sturdy chassis structure and proper weight distribution ensure balance during transportation, offering stable driving and safe transportation.
5. How is the safety performance of this semi-trailer?
Answer: The 40FT 3 axle flatbed semi-trailer is equipped with reliable braking and suspension systems, ensuring excellent safety performance. These systems ensure precise braking and stable suspension during transportation, offering better control and reducing the risk of accidents, thus ensuring the safe transportation of cargo.
