| Quantity: | |
|---|---|
SGZ
Sinotruk

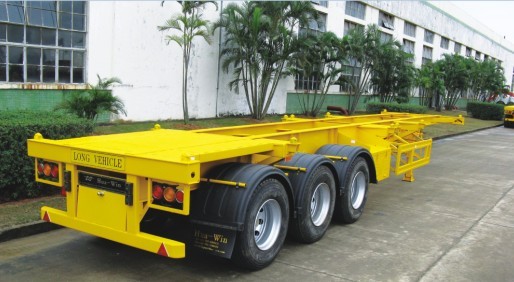

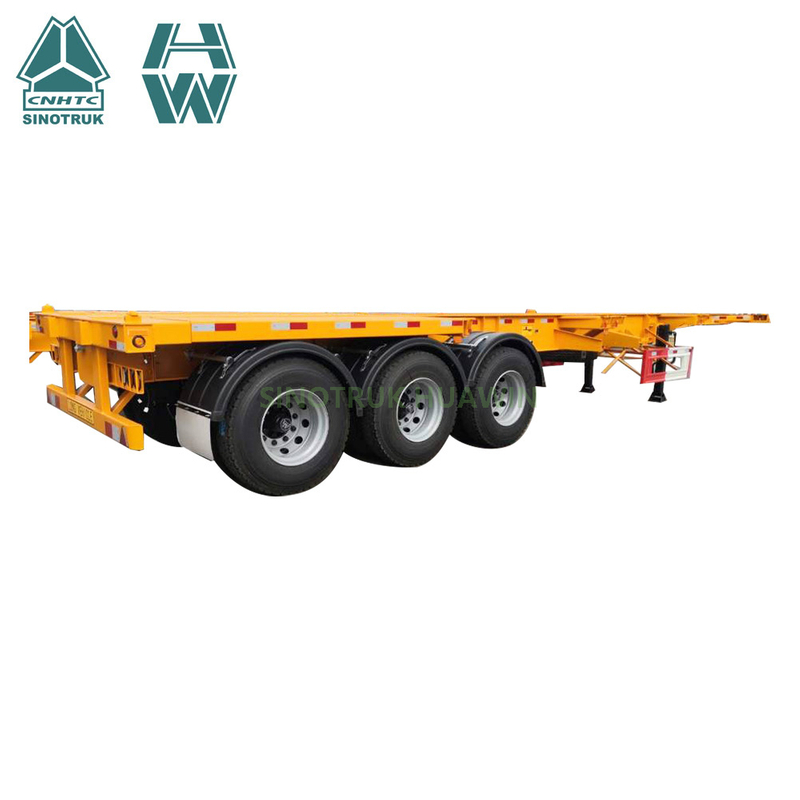

| 40FT 3 axles Skeletal semi trailer | ||
| Tare Weight | 5800kg | |
| Overall Length | 12400mm | |
| Overall Width | 2480mm | |
| Payload | 45000kg | |
| SPECIFICATIONS | ||
| I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |
Axle | 3 axles | |
| BPW/ FUWA/HJ/L1 Brand 12 ton | ||
| Suspension | Heavy duty mechanical suspension | |
| Leaf Spring | 13 piece Leaf spring for heavy loading | |
| King Pin | JOST brand 2” Bolt-in King Pin | |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| Wheel Rim | 9.0-22.5 wheel rim ,13 pieces | |
| Tire | 12R22.5 tire with one spare tire, 13 pieces | |
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |
| Spare Tire | One set of spare tire including a carrier | |
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
| 40FT 3 axles Skeletal semi trailer | ||
| Tare Weight | 5800kg | |
| Overall Length | 12400mm | |
| Overall Width | 2480mm | |
| Payload | 45000kg | |
| SPECIFICATIONS | ||
| I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. | |
Axle | 3 axles | |
| BPW/ FUWA/HJ/L1 Brand 12 ton | ||
| Suspension | Heavy duty mechanical suspension | |
| Leaf Spring | 13 piece Leaf spring for heavy loading | |
| King Pin | JOST brand 2” Bolt-in King Pin | |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
| Wheel Rim | 9.0-22.5 wheel rim ,13 pieces | |
| Tire | 12R22.5 tire with one spare tire, 13 pieces | |
Twist Lock | 12 nos. of ISO twist lock for 1x20ft, 2x20ft; 1x40ft container, the retractable central locks can be laid down. | |
| Spare Tire | One set of spare tire including a carrier | |
| Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
| Accessories | One standard tool box | |
