ZZ1107G451
Sinotruk howo

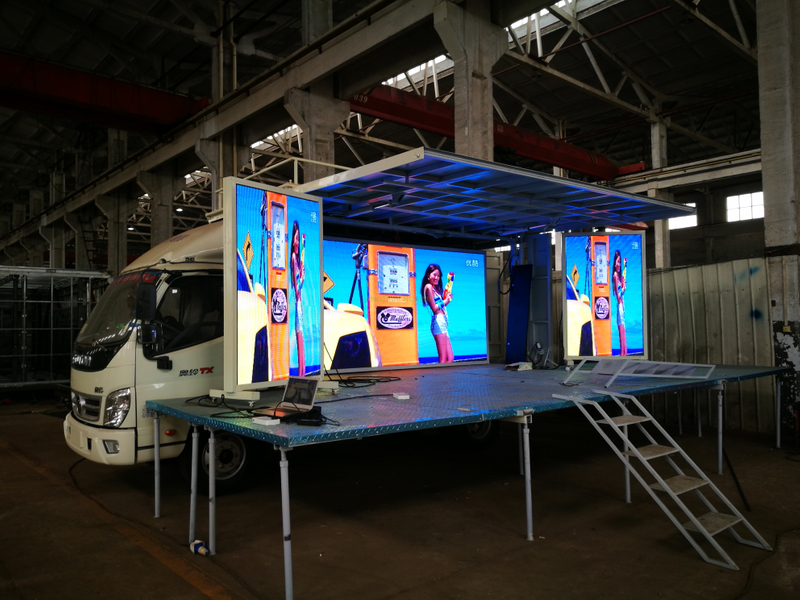

SINOTRUK 4x2 Advertising LED Display Truck
Cab | 1880 Cabin with AC, NO Sleeper. | ||
Driving wheel | 4x2 | ||
Driving type | Left Hand Driving | ||
Chassis Model | ZZ1047D3414C145 | ||
Dimension(LxWxH)(unloaded)(mm) | 5995*2200*3150 | ||
Right and Left side LED screen dimension | 3840*1760mm | ||
Rear side LED screen dimension | 1280*1280mm | ||
External power source | With | ||
Main Control parts | 15KW diesel generator, control computer, waterproof speaker, Etc. | ||
Approaching angle/Departure angle(°) | 20/18 | ||
Overhang(front/rear) (mm) | 1160/1475 | ||
Wheel base (mm) | 3500 | ||
Leaf spring | 11/9+7H | ||
Front axle | 2.4 | ||
Rear axle | 4.2 | ||
Curb weight(kg) | 4500 | ||
Engine
| Model | 4100, 4- stroke direct injection diesel engine, 4 cylinders in line with water cooling | |
Fuel type | Diesel | ||
Horse Power, max(kw/rpm) | 116HP | ||
Displacement(L) | 3.76 | ||
Emission | EURO III | ||
Fuel tanker capacity (L) | Standard | ||
Transmission | WLY6T100, 6 forwards and 1 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Color | Optional | ||
Tyre | 7.00R16 Steel , 6+1 Spare | ||
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
