SGZ
Sinotruk Howo

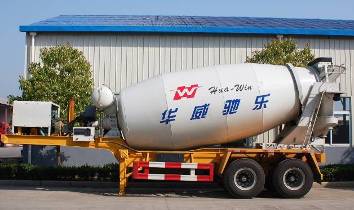

2 Axles Concrete Mixer Semi Trailer
Tare Weight | 12500kg |
| |
Overall Width | 2495mm | ||
Overall Length | 9900mm | ||
Overall Height | 3780mm | ||
Photo for reference, finial product can be made according to exact requirements | |||
TANK | |||
Capacity | 12CBM | ||
Mixing Tanker Sloping Angle | 14, 12,10 degree | ||
Mixing Tanker Revolving Speed | 12-20 (r/min) | ||
Thickness | 6mm | ||
KEY ACCESSORIES | |||
Diesel Engine | Diesel engine, Weichai Brand, 132KW | ||
Hydraulic Pump | American Eaton Brand | ||
Hydraulic Motor | American Eaton Brand | ||
Gear Box | PMB Brand | ||
CHASSIS SPECIFICATION | |||
Chassis & Main Beam | Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm; Bottom Flange 16mm,width 140mm. | ||
Axles | 2 axles | ||
BPW/ FUWA/HJ/L1 Brand 12 ton | |||
Suspension | Mechanical suspension | ||
Leaf Spring | 13-piece leaf spring | ||
King Pin | JOST band 2” Bolt-in King Pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel Rim | 9.0-22.5 wheel rim, 9 pieces | ||
Tyre | 12R22.5 tire with one spare tire, 9 pieces | ||
Spare Tire | One set of spare tire including a carrier | ||
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint. Color is optional at request. | ||
Accessories | One standard tool box with basic tools | ||
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
