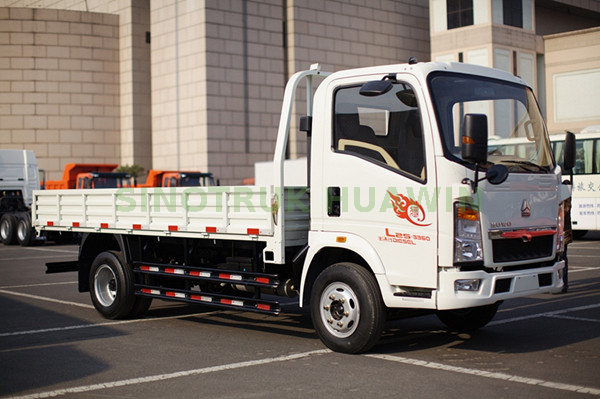

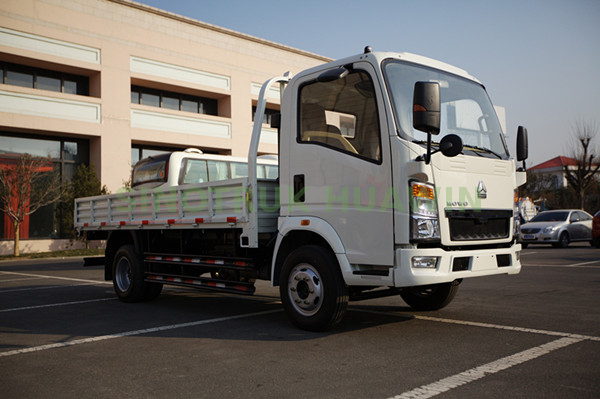

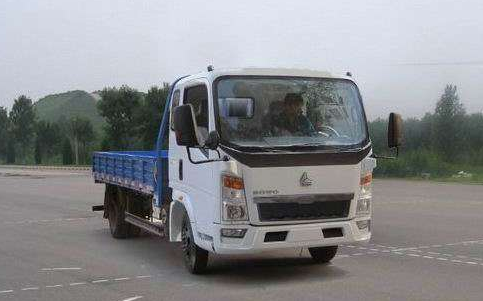

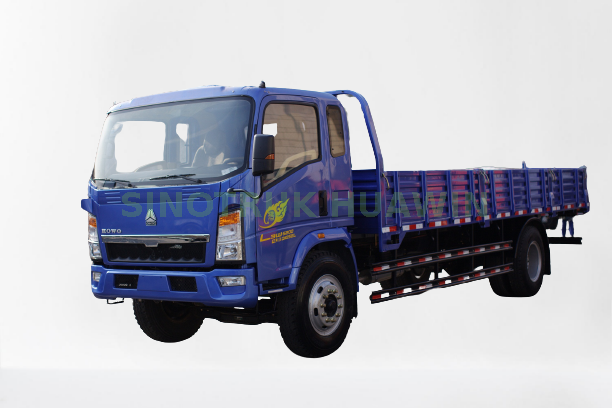

HOWO 4X2 Cargo Truck
Cabin | Driving type 4x2 LHD 1880 cabin with two seats and one bed, 70°tillable to the front |
|
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 5995×2000×2450 |
Wheel base (mm) | 3360 | |
Wheel track (front/rear) (mm) | 1605/1520 | |
Approach/Departure angle(°) | 20/18 | |
Weight in KGS | Tare Weight | 2400 |
payload | 3100 | |
Front axles loading capacity | 1x2000 | |
Rear axles loading capacity | 1x3500 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | Chaochai |
Type | 4 cylinder in line, Turbocharged and Intercooled | |
Model | 4100 | |
Horse Power（HP) | 95 | |
Emission standard | Euro Ⅱ | |
Gearbox | WLY6T100 gearbox, 6-speed Forwards gear & 1 reverse gear | |
Tire | 7.00R16 steel radial 7pcs including one spare tire | |
Carriage Size(mm) | 3850×1900×400 | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
