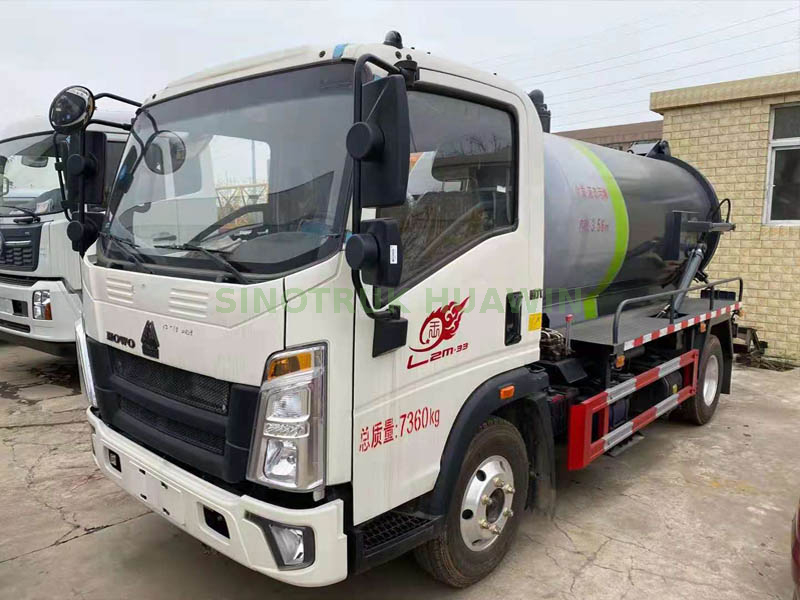

SINOTRUK HOWO 4X2 Sewage Truck-10CBM
Cabin | HW70 cabin with air conditioner, 70° hydraulically tillable to the front. as attached photo for ref only |
|
Vehicle Main Dimensions | (L x W x H)mm | 8600x2600x3290 |
Wheel base (mm) | 4600 | |
Weight in KGS | Tare Weight | 7500 |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 1x16000 | |
Engine | Brand | Sinotruk |
Model | WD615.87 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 290HP | |
Emission standard | Euro II | |
Gearbox | HW15710 gear box with 10 forward and 2 reverse | |
Steering | ZF8098 power steering, hydraulic steering with power assistance | |
Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
Fuel tank | 400 L | |
Tire | 12R22.5 tubeless radial tires ,7 pcs including 1 spare tire | |
Tanker Body
Total Volume（m3） | 10CBM |
Tanker Body Material | 5mm steel / Q345 high tensile strength steel |
Pump | Chinese brand double pump, with lifting devices |
Suction hose | Rubber hose,100mm, 10M |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
