| Quantity: | |
|---|---|
ZZ5207M4617
Sinotruk

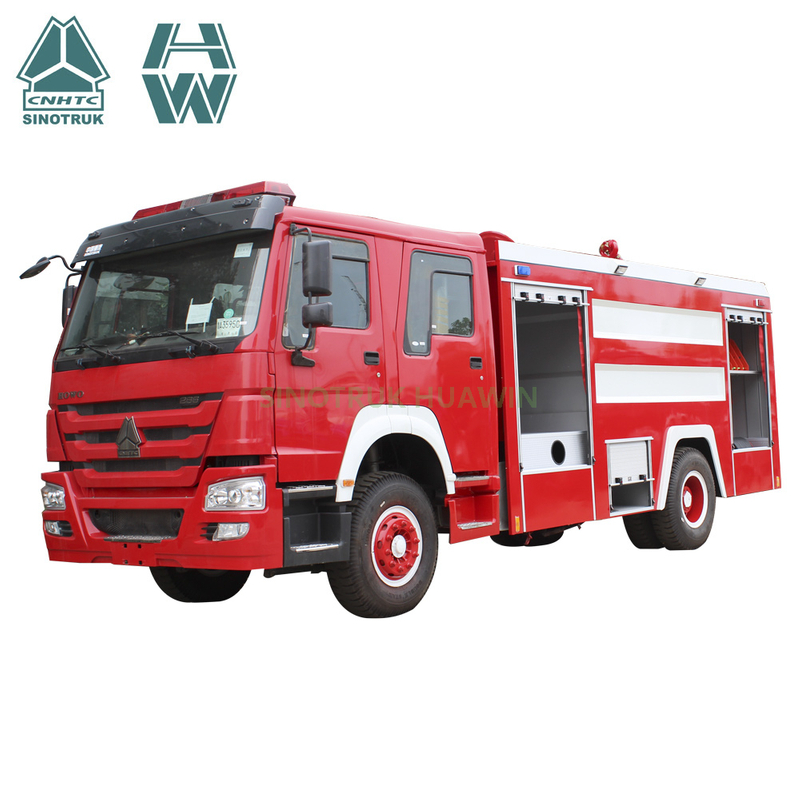

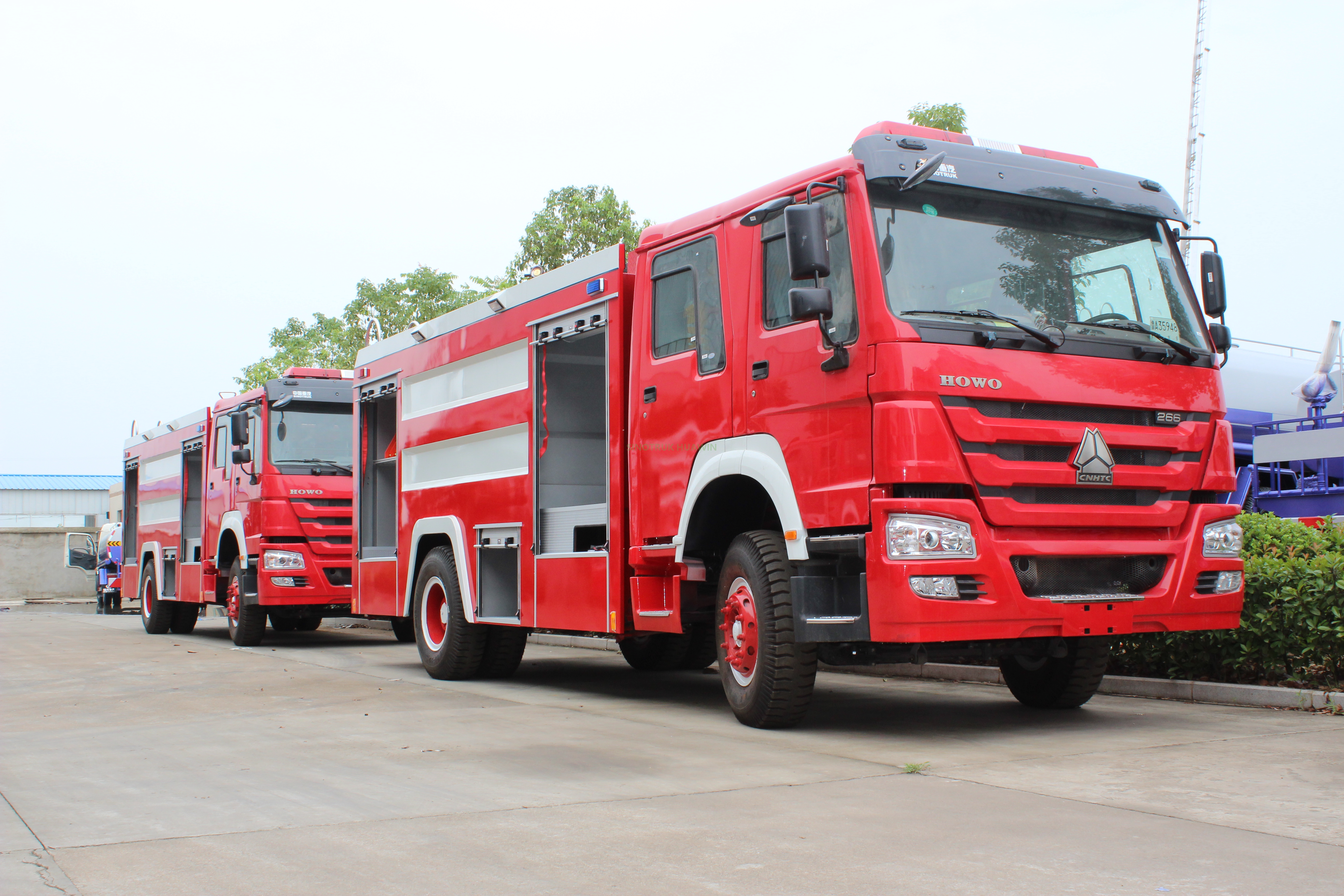

HOWO 4×2 Fire FightingTruck 6CBM
Cabin | Driving type 4x2 LHD | ||
Double Row Cab with Air condition | |||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8400×2500×3425 | |
Wheel base (mm) | 4600 | ||
Wheel track (front/rear) (mm) | 2022/1830 | ||
Weight in KGS | Tare Weight | 11000 | |
Payload | 12000 | ||
Front axles loading capacity | 1x7000 | ||
Rear axles loading capacity | 1x16000 | ||
Max. driving speed（km/h） | 102 | ||
Engine | Brand | SINOTRUK | |
Model | WD615.87 | ||
Type | 4-stroke direct injection , 6-cylinder in-line , turbo-charged and inter-cooled | ||
Horse Power（HP) | 290 HP | ||
Emission standard | Euro Ⅱ | ||
Gearbox | HW15710, 10 Forwards gear & 2 reverse gear | ||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||
Fuel tank (L) | 300 | ||
Tire | 12R22.5 tubeless tyre, 7 pcs including one spare tire | ||
Tank Capacity (L) | Water: 5,000 | ||
Foam: 1,000 | |||
Fire Pump | Flow | 40L/s at Low Pressure 1.0 MPa | |
20L/s at Middle Pressure 2.0 Mpa | |||
Fire Monitor | Model | SP30 | |
Pressure | 1.0-1.2 MPa | ||
Flow | 30L/S | ||
Range | Water≥55m | ||
Foam≥40m | |||
Rotation angle | 360° Horizontal | ||
-30°～80° Pitch Angle | |||
