Sinotruk Howo
HOWO 4X2 Refrigerator Truck-116HP 4T
Cabin | Driving type 4x2 Left Hand Drive |
|
2080 cab, with two seats, no air condition, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6100×2300×3100 |
Wheel base (mm) | 3360 | |
Wheel track (front/rear) (mm) | 1605/1540 | |
Approach/Departure angle(°) | 20/13 | |
Weight in KGS | Tare Weight | 2800 |
payload | 4000 | |
Front axles loading capacity | 1x2500 | |
Rear axles loading capacity | 1x4500 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | Yunnei Power |
Model | YN4102 | |
Horse Power（HP) | 116HP | |
Emission standard | Euro Ⅱ | |
Gearbox | WLY6T46, 6 forwards & 1 reverse | |
Tire | 7.50R16 radial tyre 7 pcs including one spare | |

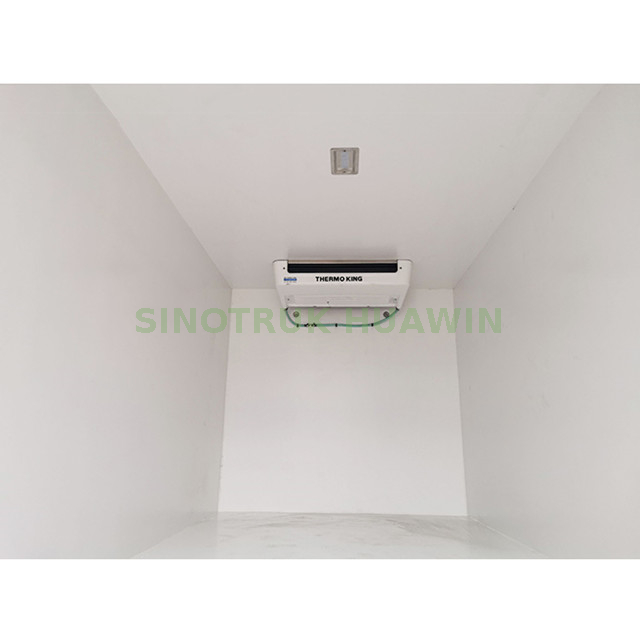

Refrigerating System | 1, Box Size: 4000mm*2050mm*2050 mm, 2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm. 3, Working temperature is minus 18 celsius degree. Chinese famous brand refrigeration unit. 4, Rear door open | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
