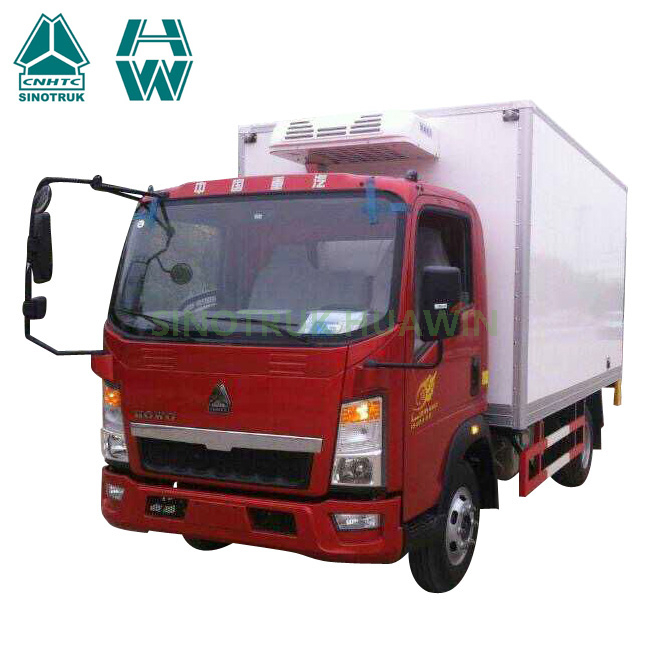

HOWO 4X2 Refrigerator Truck

-18℃ 4 tons refrigerated truck is one kind of closed van truck which is used to transport the frozen or fresh goods, was fitted with the refrigerating unit device and polyurethane thermal insulation van. HOWO 4X2 cold refrigerated truck is usually used for transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits ( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc.
Availability:
Quantity:
  • ZZ1107G451CD

  • Sinotruk

HOWO 4X2 Refrigerator Truck-116HP 4T


Cabin

Driving type 4x2   Left Hand Drive

2080 cab, with two seats, no air condition, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

6100×2300×3100

Wheel base  (mm)

3360

Wheel track  (front/rear) (mm)

1605/1540

Approach/Departure angle(°)

20/13

Weight in KGS

Tare Weight

2800

payload

4000

Front axles loading capacity

1x2500

Rear axles loading capacity

1x4500

Max. driving speed(km/h)

90

Engine

Brand

Yunnei Power

Model

YN4102

Horse Power(HP)

116HP

Emission standard

Euro Ⅱ

Gearbox

WLY6T46, 6 forwards & 1 reverse

Tire

7.50R16 radial tyre 7 pcs including one spare

Refrigerating System

1, Box Size: 4000mm*2050mm*2050 mm,

2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm.

3, Working temperature is minus 18 celsius degree. Chinese famous brand refrigeration unit.

4, Rear door open


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
