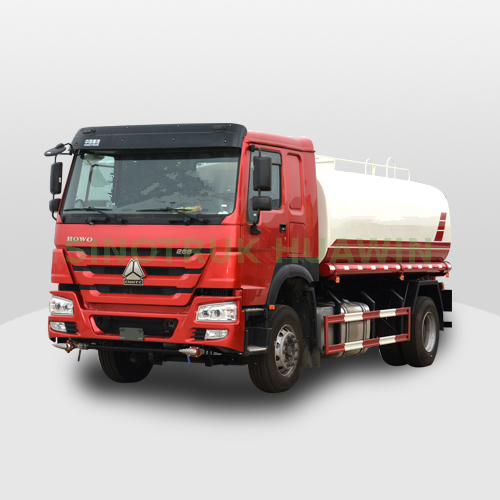

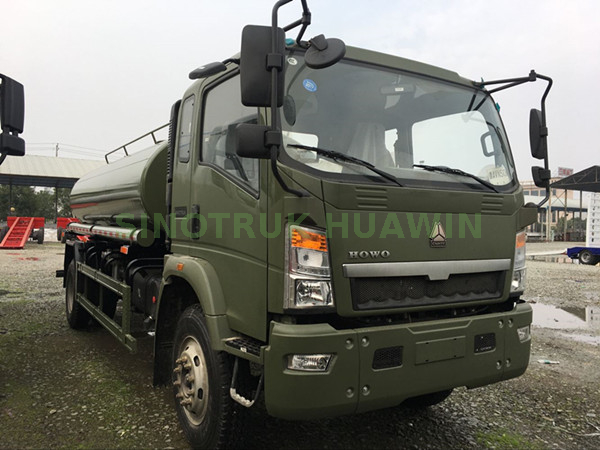

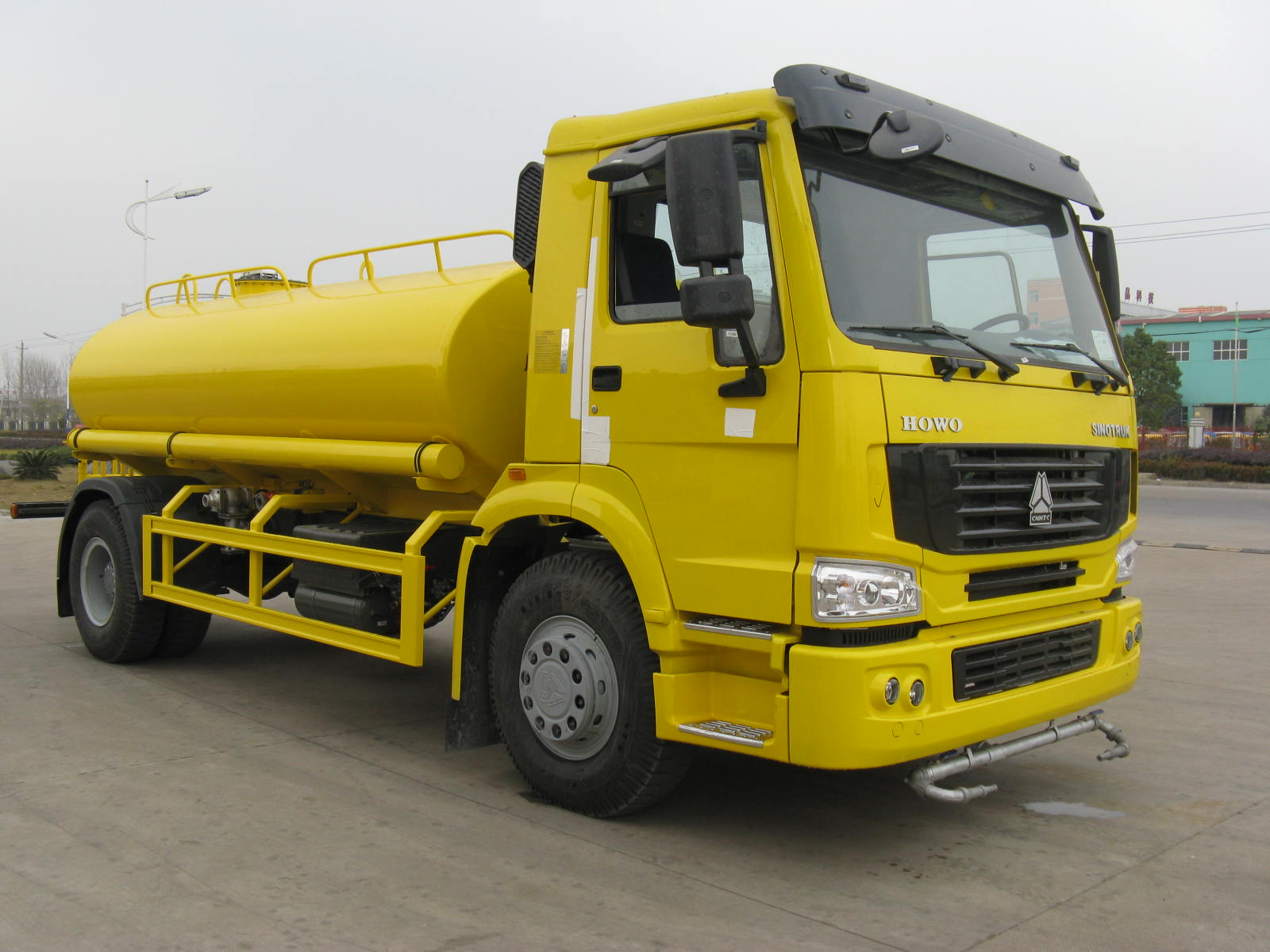

HOWO 4×2 Water Tank Truck

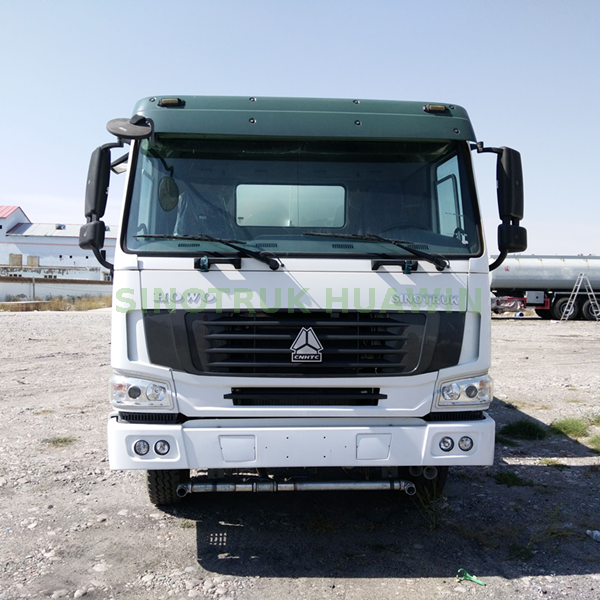

Cabin | HW 76 cab, with one bed and air conditioner, 70°hydraulically tillable to the front as attached photo for ref. |
|
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 8270×2496×3100 |
Wheel base (mm) | 4600 | |
Wheel track (front/rear) (mm) | 2022/1830 | |
Approach/Departure angle(°) | 14.5/15 | |
Weight in KGS | Tare Weight | 9180 |
payload | 15000 | |
Front axles loading capacity | 1x7000 | |
Rear axles loading capacity | 1x16000 | |
Max. driving speed（km/h） | 90 | |
Engine | Brand | Sinotruk |
Model | WD615.62 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 266 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW13710, 10 Forwards gear & 2 reverse gear | |
Steering | ZF8098 power steering, hydraulic steering with power assistance | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Fuel tank (L) | 300 | |
Tire | 12R22.5 tubeless tyre 7 pcs including one spare tire | |
Tank specification | 10,000 liters ◆Equipped with front(rear,side)sprinkler. ◆Equipped with pump ◆Equipped with fire valve,water valve,and filter gauze | |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
