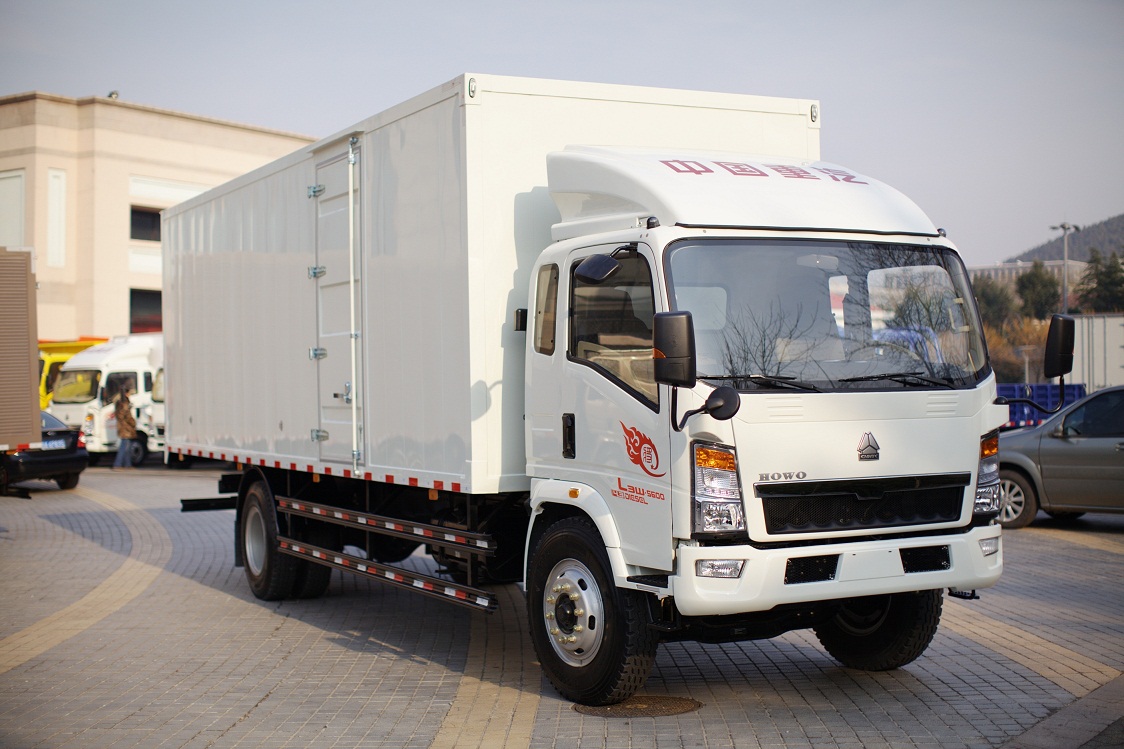

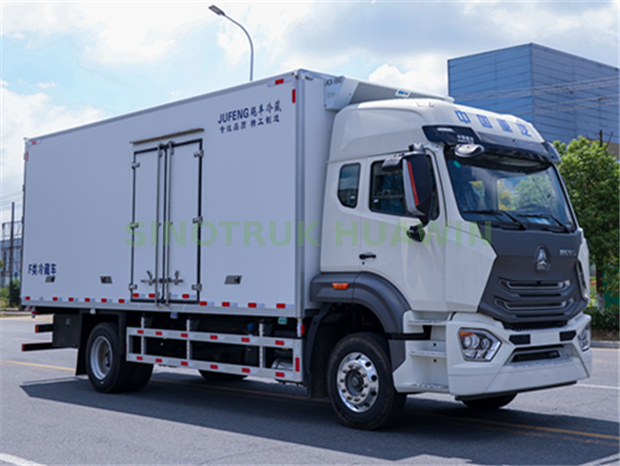

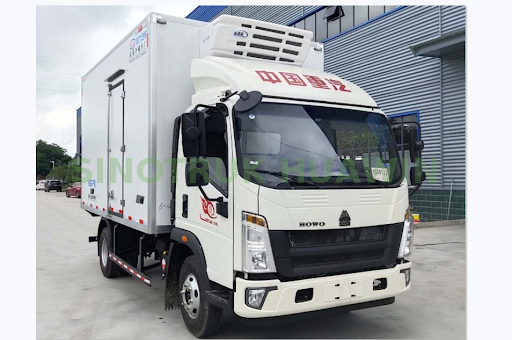

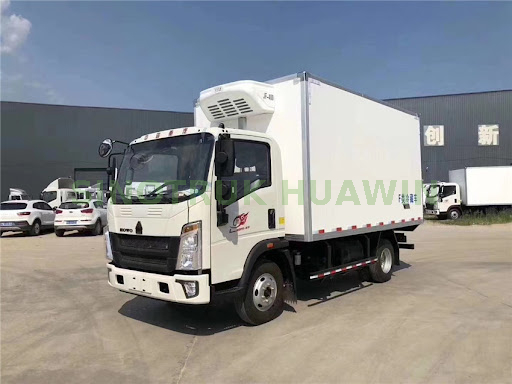

HOWO 4X2 vaccine truck

Cabin

Driving type 4x2 LHD

HOWO 4X2 vaccine truck

Cabin	Driving type 4x2 LHD
Cabin	2080 cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	6500×2500×3200
	Wheel base (mm)	3360
	Wheel track (front/rear) (mm)	1825/1545
	Approach/Departure angle(°)	18/18
Weight in KGS	Tare Weight	6500
	payload	4000
	Front axles loading capacity	1x2400
	Rear axles loading capacity	1x4200
Max. driving speed（km/h）		95
Engine	Brand	Commins
	Model	ISF3.8s3141
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power（HP)	141
	Emission standard	Euro Ⅲ
Gearbox	WLY651, 6 Forwards gear & 1 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Fuel tank (L)	120
Tire	7.50R16 tubeless tyre 7 pcs including one spare tire
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
Box size	4200x2100x2100 mm, With a side door, 92mm side panel, 95mm top panel, 105mm bottom panel, 55-height narrow-tooth vaccine aluminum track at the bottom, 8 left and right side walls, four 50mm high ventilation slots on the rear door, and four 100mm high front panels The bottom of the ventilation slot is increased by 2 pairs of long reinforced supports. Carrier S-750 independent unit is equipped with electricity and independent battery, which can reach -28 to -30 degrees.

2080 cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

6500×2500×3200

Wheel base (mm)

3360

Wheel track (front/rear) (mm)

1825/1545

Approach/Departure angle(°)

18/18

Weight in KGS

Tare Weight

6500

payload

4000

Front axles loading capacity

1x2400

Rear axles loading capacity

1x4200

Max. driving speed（km/h）

95

Engine

Brand

Commins

Model

ISF3.8s3141

Type

4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power（HP)

141

Emission standard

Euro Ⅲ

Gearbox

WLY651, 6 Forwards gear & 1 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430mm

Fuel tank (L)

120

Tire

7.50R16 tubeless tyre 7 pcs including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Box size

4200x2100x2100 mm, With a side door, 92mm side panel, 95mm top panel, 105mm bottom panel, 55-height narrow-tooth vaccine aluminum track at the bottom, 8 left and right side walls, four 50mm high ventilation slots on the rear door, and four 100mm high front panels The bottom of the ventilation slot is increased by 2 pairs of long reinforced supports. Carrier S-750 independent unit is equipped with electricity and independent battery, which can reach -28 to -30 degrees.
