| Quantity: | |
|---|---|
ZZ1257S4341
SINOTRUK HOWO

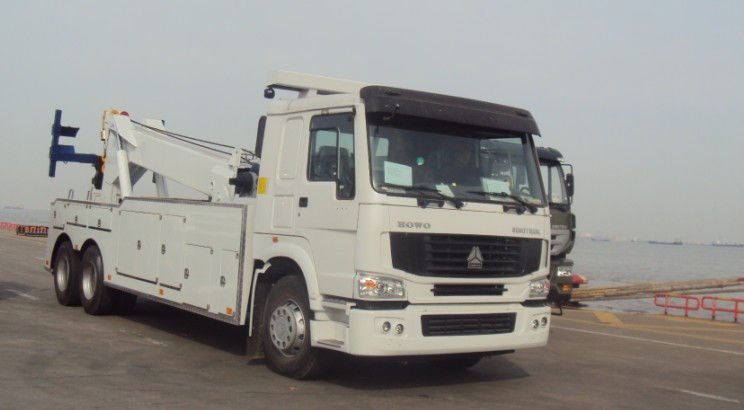

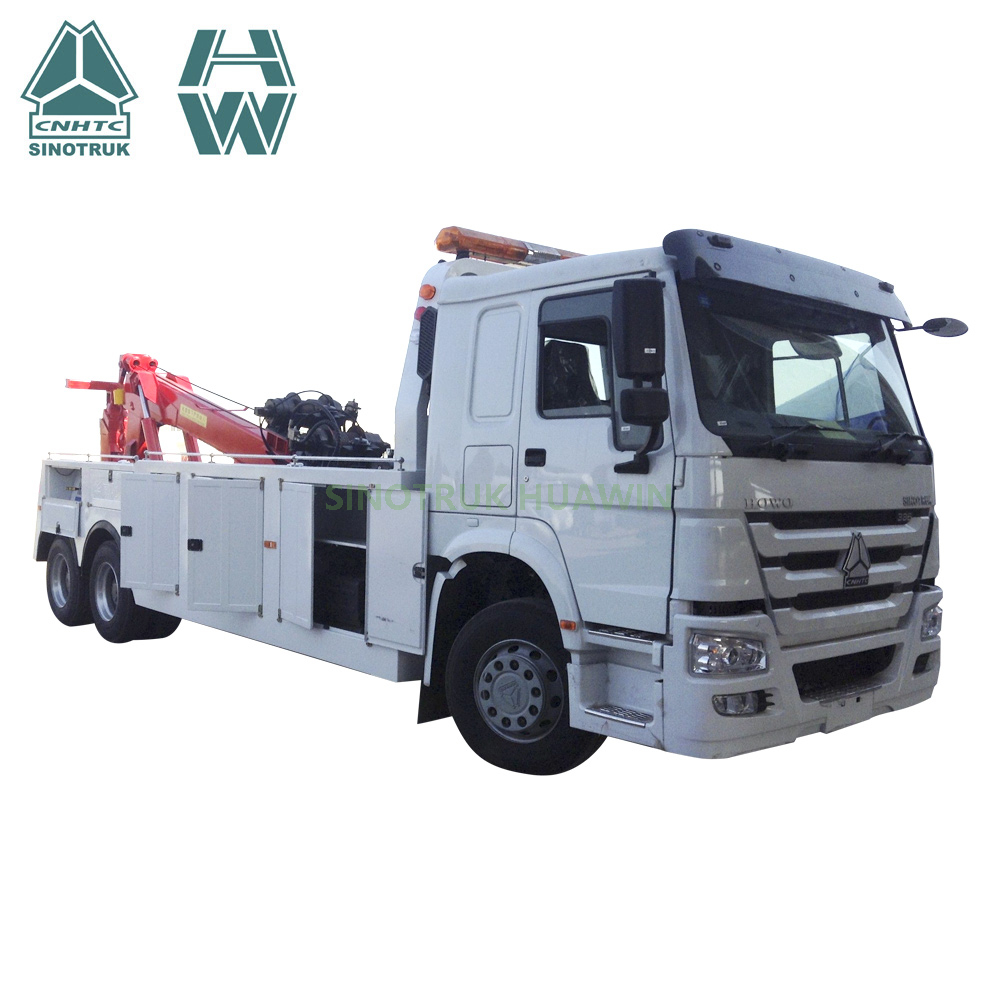

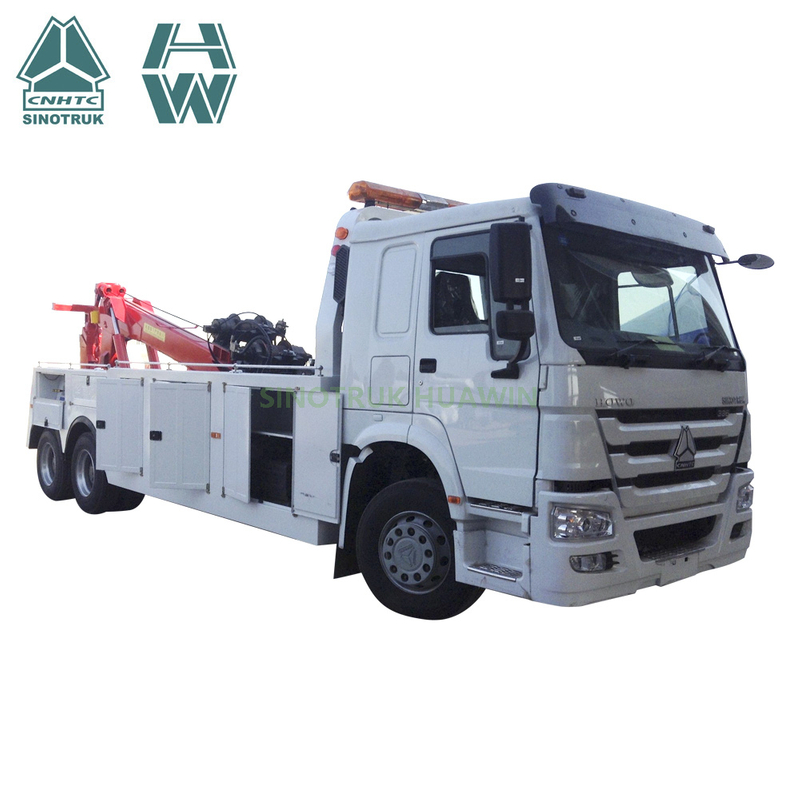

HOWO 6x4 Wrecker Truck
Cabin | Driving type 6x4 LHD |
|
HW76 Cab, with A/C and one bed, 70°hydraulically tillable to the front as attached photo for ref. | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | |
Wheel base (mm) | 5200 +1350 | |
Weight in KGS | Tare Weight(KGS) | 13500 |
Front axles loading capacity(KGS) | 1x7000 | |
Rear axles loading capacity(KGS) | 2x16000 | |
Engine | Brand | SINOTRUK |
Model | WD615.69 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
Horse Power（HP) | 336 HP | |
Emission standard | Euro Ⅱ | |
Gearbox | HW19710,10-speed forward and 2 reverse gear | |
Steering | ZF8098 power steering, hydraulic steering with power assistance | |
Clutch | Reinforced diaphragm clutch, diameter 430mm | |
Fuel tank (L) | 400 | |
Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | |
Specialized Device
Hoisting Organ | Rated under-hoisting capacity(kg) | 10000 |
Max under-pulling capacity(kg) | 40000 | |
Max under-hoist useful length(mm) | 3100 | |
Max lifting capacity(kg) | 20000 | |
Winch rating pulling capacity(kg) | 10000 | |
Length of steel(m) | 40 |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
