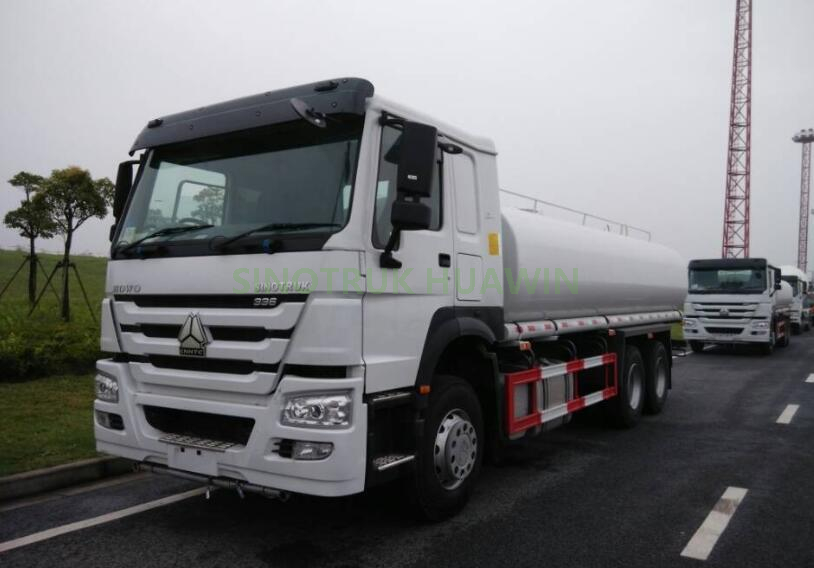

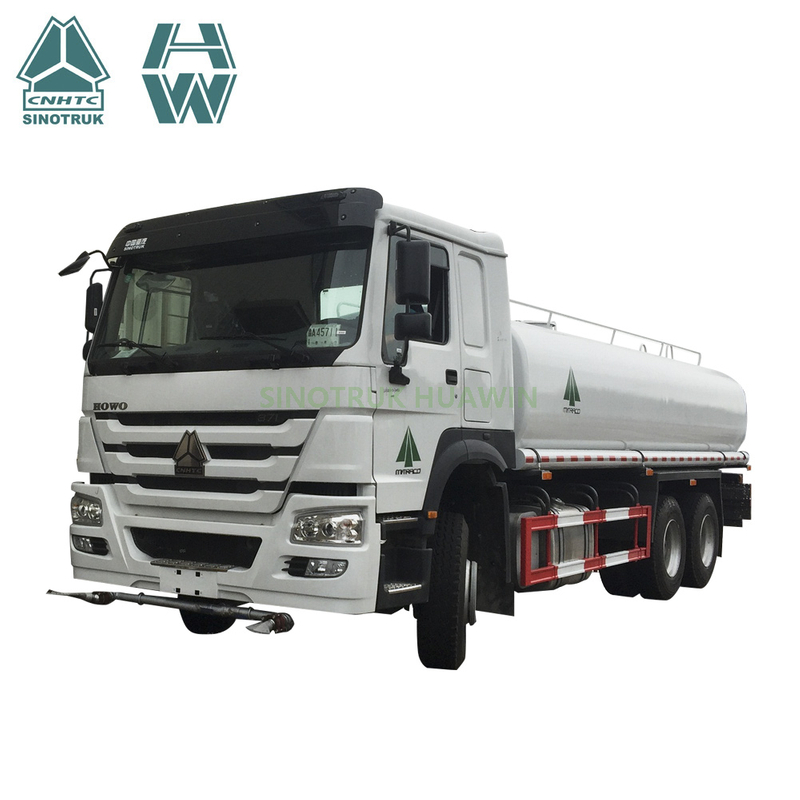

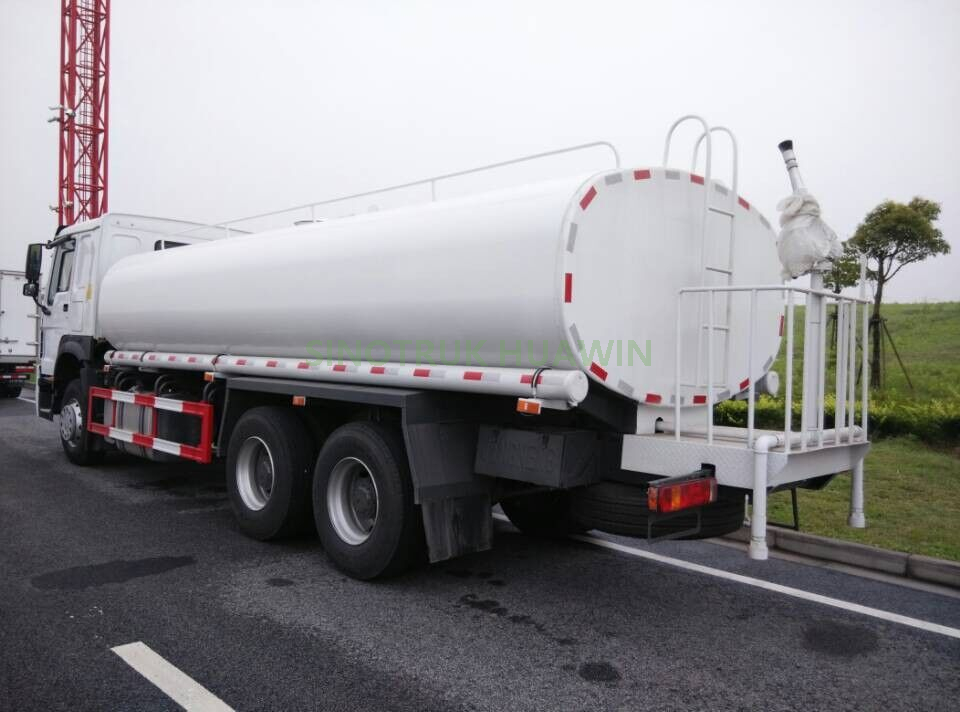

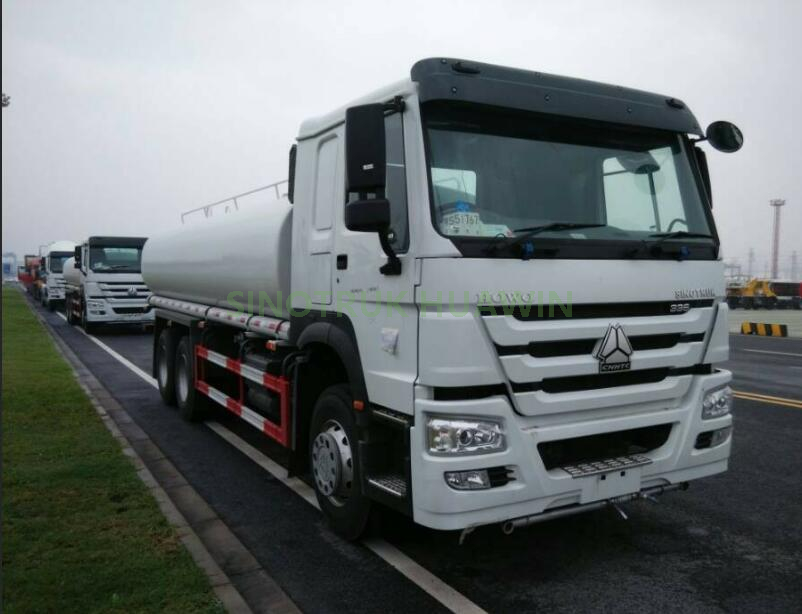

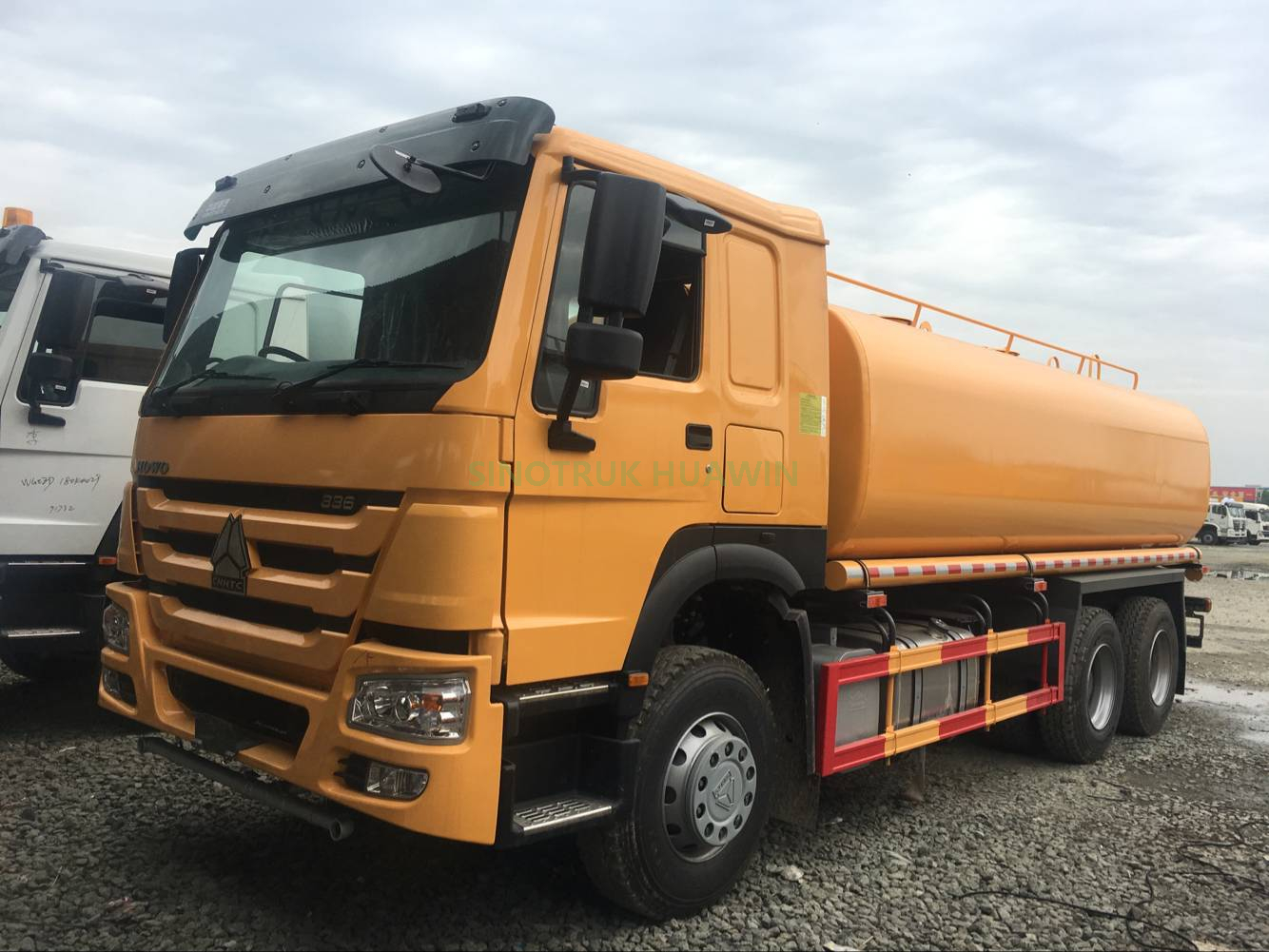

HOWO 6x4 2000 Liters Water Sprinkle Truck

20,000 liters capacity water sprinkler tank truck equipped with front (rear, side) sprinkle can used for construction of mines and other enterprises, road flushing and dust covering in large-medium-scale cities. Self suction height: less than or equal to 7m, sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to 28m; adjusting the pillars, the range is more than or equal to 28m;

Quantity:
  • ZZ1167M4647
  • Sinotruk

HOWO 6×4 Water Tank Truck


Cabin

HW 76 cab, with one bed and air conditioner, 70°hydraulically tillable to the front as attached photo for ref.


Vehicle Main Dimensions

Overall dimensions (L x W x H)mm

9270×2496×3100

Wheel base  (mm)

4300

Wheel track  (front/rear) (mm)

2022/1830

Approach/Departure angle(°)

14.5/15

Weight in KGS

Tare Weight

9580

payload

25000

Front axles loading capacity

1x7000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

90

Engine

Brand

Sinotruk

Model

WD615.62

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

266 HP

Emission standard

Euro

Gearbox

HW19710, 10 Forwards gear & 2 reverse gear

Steering

ZF power steering, hydraulic steering with power assistance

Clutch

Reinforced diaphragm clutch, diameter 430mm

Fuel tank (L)

400

Tire

12R22.5 tubeless tyre in total 11 pcs including one spare tire

Tank specification

210,000 liters

◆Equipped with front(rear,side)sprinkler.

◆Equipped with pump

◆Equipped with fire valve,water valve,and filter gauze


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
