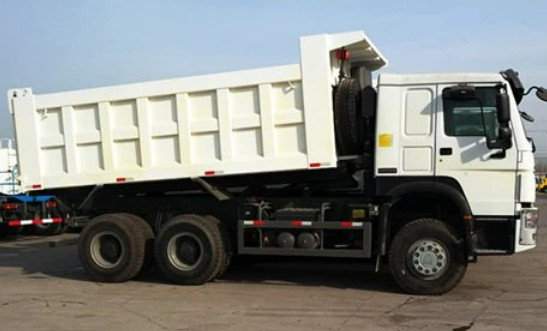

HOWO 6x4 20t Tipper Truck
You are here: Home » News » Product delivery » HOWO 6x4 20t Tipper Truck

HOWO 6x4 20t Tipper Truck

Views:0     Author:Site Editor     Publish Time: 2021-12-21      Origin:Site

Overall Dimension8545mm*2496mm*3350mm (L*W*H)
Payload25-30tonCurb Weight12500kg
Front Overhang1500mmRear Overhang1870mm
Wheelbase3825mm +1350mm
CHASSIS
Chassis BrandSINOTRUK HOWO
Driving Type6x4
CabHW76, left hand drive, air-conditioner, one bed
Engine and PowerBrand: SINOTRUK, diesel engine, 336hp (247kw), 4-stroke direct injection,
6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard
SteeringZF8098, hydraulic steering with power assistance
TransmissionHW15710, 10 forward speeds and 2 reverse
ClutchModel: 430, diaphragm clutch
Front AxleHF9, load capacity 9 ton, drum brake
Rear AxleHC16 tandem axle, load capacity 13000kg x2, ratio 5.73
Tire12.00-20, 11units including 1 spare tire
CARGO BODY
Inside Dimension5600mm*2300mm*1500mm(L*W*H)
Hydraulic CylinderVentral T-type lift system
Steel sheet thicknessFloor 8mm, side wall 6mm
TailgateOne-piece tailgate with upper articulation, safety lock system
