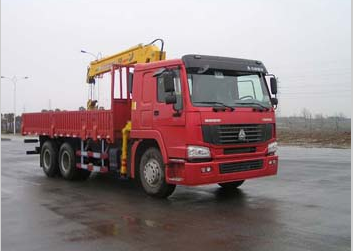

HOWO 6x4 Truck with XCMG 14T Mounted Knuckle Boom Crane

Truck mounted knuckled boom crane is a kind of equipment that realizes the lifting, turning, and hoisting of goods through hydraulic lifting and telescopic systems. It is usually assembled on a truck. Generally composed of truck chassis, cargo compartment, power take-off and crane.It is more suitable for the relatively narrow working environment such as factory warehouse, while the straight arm requires a larger display space due to its structure. Since the knuckle boom type truck-mounted crane uses multiple hydraulic cylinders to form a joint-like boom connecting mechanism, it can complete the action faster and work more efficiently. The folding arm type is more suitable for narrow working environment.This is determined by its structure. The knuckle boom truck crane is more suitable for relatively small working environments such as factory warehouses, while the telescopic boom requires more space for deployment due to its structure.
Quantity:

HOWO 6x4 truck with XCMG 14T Crane

Cabin

Driving type 6x4      LHD

HOWO 76 cab, with air condition and one bed, 70°hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

Overall dimensions (L x W x H) mm

11000×2500×3900

Carriage Size (L x W x H) mm

7000×2300×600

Wheel base  (mm)

5225+1350

Wheel track  (front/rear) (mm)

2022/1830

Weight in KGS

Tare Weight

16100

payload

25000

Front axles loading capacity

1x9000

Rear axles loading capacity

2x16000

Max. driving speed(km/h)

90

Engine

Brand

Sinotruck

Model

WD615.47

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371

Emission standard

Euro Ⅱ

Gearbox

HW19710 10 Forwards gear & 2 reverse gear

Clutch

Reinforced diaphragm clutch, diameter 430 mm

Steering Gear

ZF 8118,power steering, hydraulic steering with power assistance

Tire

12R22.5 tubeless tyre 11 pcs including one spare tire

Crane specifications

Brand : XCMG

Type: Telescopic

Max lift capacity: 14000 kg

Max working radius 15.8 m, Max lifting height : 17.8 m


Specifications of the Crane


Model

SQ14SK4Q

Unit

Max Lifting Capacity

14000

kg

Max Lifting Moment

35

T.M

Recommend Power

32

kw

Max Oil Flow of Hydraulic System

63

L/min

Max Pressure of Hydraulic System

26

MPa

Oil Tank Capacity

160

L

Rotation Angle

All Rotation

Crane Weight

4800

kg

Installation Space

1300

mm


SQ14SK4Q Lifting capability diagram

Working radius(m)

2.5

5

8

11

13.2

15.8

Lifting capacity(kg)

14000

6000

3500

2300

1800

1200


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.



Our Advantage


1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty


1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes the first.

2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.
