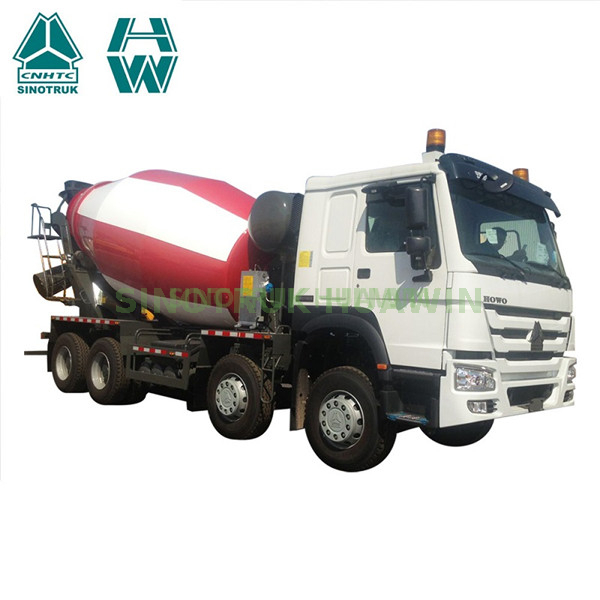

HOWO 8X4 14CBM Concrete Mixer Truck

Howo 8x4 Concrete mixer truck suitable for agitating and transiting concrete, for construction site, road repairing and some other infrastructure construction business. Concrete Howo mixer truck is optimization of body structure, special mold production, beautiful appearance, concrete mixing, discharge uniformity, low rate of residual. Cost-effective concrete mixer truck with competive price is your best choice.
Quantity:
  • ZZ1317N3667
  • Sinotruk Howo

Sinotruk HOWO 8x4 Concrete Mixer Truck with 371HP


Cabin

HOWO 76 Standard Cab

With one bed and air condition, 70° hydraulically tillable to the front as attached photo for ref.

Vehicle Main Dimensions

(L x W x H)mm

10900x2500x3950

Wheel base  (mm)

1800+3625+1350

Approach/Departure angle(°)

16/27

Weight in KGS

Tare Weight

17000

Loading Capacity

40000

Front axles loading capacity

2x9000

Rear axles loading capacity

2x16000

Engine

Brand

Sinotruk

Model

WD615.47

Type

4-stroke direct injection ,  6-cylinder in-line with water cooling, turbo-charging and inter-cooling

Horse Power(HP)

371

Emission standard

Euro Ⅱ

Gearbox

HW19710 , 10 forwards & 2 reverse

Clutch

Reinforced diaphragm clutch, diameter 430mm

Steering Gear

ZF 8098,power steering, hydraulic steering with power assistance

Fuel tank (L)

400

Tire

12R22.5 Tubeless Radial Tyre, 13 pieces including one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Mixer Body


Thickness

End plate

6mm high tensile strength steel

Mixer body

6 mm high tensile strength steel

Mixer body Volume

M3

14 M3


Hydraulics

Motor, Pump

Italian or American Brand

Gear box

Italian Brand


Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.

Our Advantage

1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
8.Oversea office with more than 15 professional engineers to help local customers


Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 100000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. Offer spare parts at factory cost and free technical support during the whole life cycle of the truck and trailers (say 10 years);

5.Special service team with technial engineers is ready if any quality complains, will respond in 48 hours with feedback and solution.


Our certificates

Certificate


Main products
1. Tractor Truck, Cargo Truck, Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, fuel tank semi trailer, etc. )

Company Introduction
SINOTRUK is one of the biggest heavy duty truck manufacturer in China, also the absolute No. 1 for exporting.
We manufacture HOWO tractor truck, dump truck, concrete mixer, tanker truck, flat bed semi trailer and other special trucks, etc....


Factory view

factory view

workshop


About the shipping, we SINOTRUK have rich experience in RORO, BULK CARGO, 40HQ, 40FR etc. Every year thousands of our trucks and trailers are sold to Myanmar, Tanzania, Zambia, Ethiopia, Nigeria, Australia, Russia and etc, they have gained great popularity and excellent feedback from our customers. We also export thousands of spare parts to different countries.


发货运输

Welcome to visit our factory.
