| Quantity: | |
|---|---|
ZZ3317N3867
Sinotruk

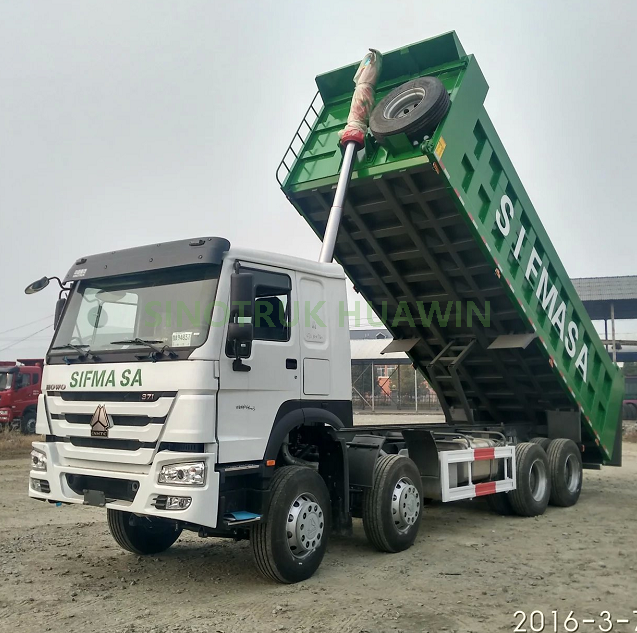

| Sinotruk Howo new 8X4 Front Lifting Tipper Dump Truck for sale | ||
Cabin | Driving type 8x4 LHD | |
| HW76 cab, with A/C and one bed, 70°hydraulically tillable to the front | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10310×2500×3400 |
| Wheel base (mm) | 1800+3500+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 16/23 | |
Weight in KGS | Tare Weight | 15200 |
| payload | 45000 | |
| Front axles loading capacity | 2x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 75 | |
Engine | Brand | Sinotruk |
| Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 300 | |
| Tire | 12R22.5 tubeless tyre 13 pcs including one spare tire | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
| Bin size | 7300*2300*1500mm, side is 6 mm, front and bottom 8 mm | |
| Hydraulic system | HYVA cylinder, front lift | |
| Sinotruk Howo new 8X4 Front Lifting Tipper Dump Truck for sale | ||
Cabin | Driving type 8x4 LHD | |
| HW76 cab, with A/C and one bed, 70°hydraulically tillable to the front | ||
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10310×2500×3400 |
| Wheel base (mm) | 1800+3500+1350 | |
| Wheel track (front/rear) (mm) | 2022/1830 | |
| Approach/Departure angle(°) | 16/23 | |
Weight in KGS | Tare Weight | 15200 |
| payload | 45000 | |
| Front axles loading capacity | 2x9000 | |
| Rear axles loading capacity | 2x16000 | |
| Max. driving speed（km/h） | 75 | |
Engine | Brand | Sinotruk |
| Model | WD615.47 | |
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro Ⅱ | |
| Gearbox | HW19710, 10 Forwards gear & 2 reverse gear | |
| Clutch | Reinforced diaphragm clutch, diameter 430mm | |
| Steering Gear | ZF 8118,power steering, hydraulic steering with power assistance | |
| Fuel tank (L) | 300 | |
| Tire | 12R22.5 tubeless tyre 13 pcs including one spare tire | |
| Brakes | Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake | |
| Bin size | 7300*2300*1500mm, side is 6 mm, front and bottom 8 mm | |
| Hydraulic system | HYVA cylinder, front lift | |
