Hydraulic dumping mechanism

Views: 0     Author: Site Editor     Publish Time: 2022-03-23      Origin: Site

(1) Left and right side dump truck dumping mechanism:

The dumping mechanism is composed of a power take-off, an oil pump, two (or three) single-acting multi-stage telescopic sleeve hydraulic cylinders, a control valve, a hydraulic control system, a direct push type lifting mechanism, etc. unload.

(2) Dumping mechanism of rear side dump truck:

The dumping mechanism is composed of a power take-off, an oil pump, a hydraulic cylinder, a control valve and a hydraulic control system to realize rear dumping.

(3) The dumping mechanism of the front top cylinder and rear dump truck.

(4) The working principle and mechanism diagram of the fully airtight cover device. (5) Instructions for use of the fully airtight cover device.

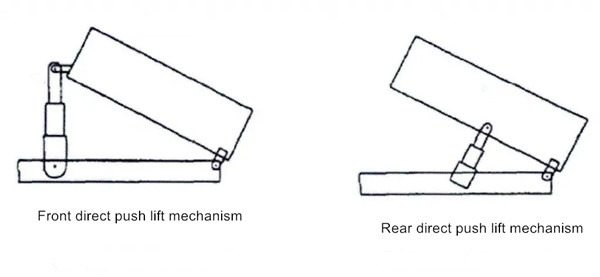

HOWO Hydraulic dumping mechanism
