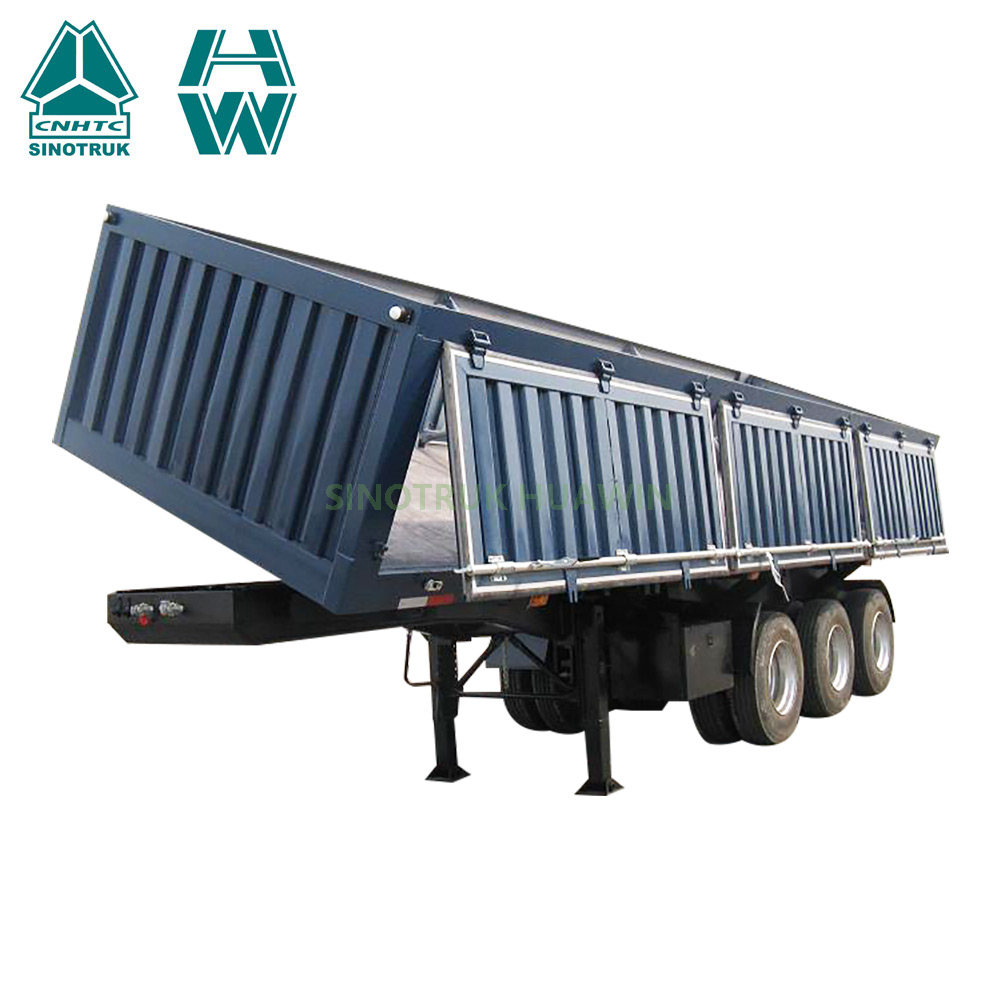

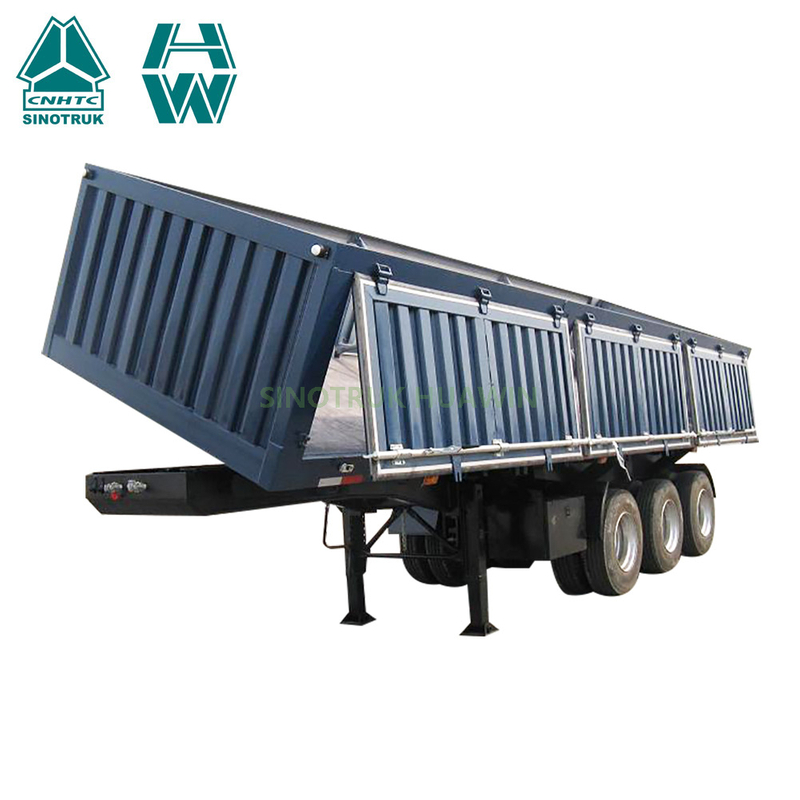

| Sinotruk 3 Axles Side Tipper Semi Trailer for sale | |
| DIMENSIONS | |
| Tare Weight | 9000-12000kgs |
| Payload | 35000-45000kgs |
| Overall Length | 7800-13000mm |
| Overall Width | 2420-2480mm |
| DUMPER BODY | |
| Volume | 25 -45m3 |
| Side Wall | 6mm thickness |
| Front Wall and floor | 8mm thickness |
| SPECIFICATION | |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Double Middle Flange 8mm and 8mm ; Bottom Flange 16mm,width 140mm. |
Axle | 2-3 axles-optional upon customer's requirement |
| BPW/ FUWA/HJ/L1 Brand | |
| Hydraulic System | 4-5 set of HYVA cylinder |
| Suspension | German design mechanical suspension |
| Leaf Spring | 13-piece leaf spring. 11x100 |
| King Pin | JOST brand 2” Bolt-in King Pin |
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear |
| Wheel Rim | 9.0R22.5 wheel rim, 13 pieces |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
