SINOTRUK 3 Lines & 6 Axles Lowbed Semi Trailer

Sinotruk 3 Lines & 6 Axles lowbed semi trailer for heavy duty & special transports. Removable gooseneck and length-optimised loading platform and the low loading height can meet your needs.
  • SGZ
  • Sinotruk

                3 Lines & 6 Axles Lowbed Semi Trailer


Overall  Length



Overall  Width




Work deck length:


Work deck   Height:

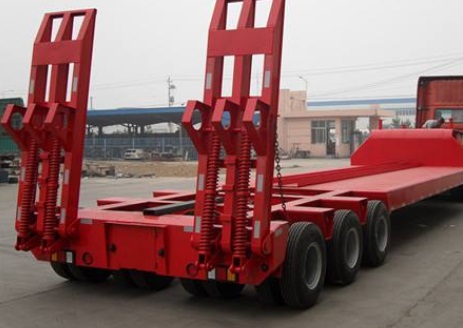

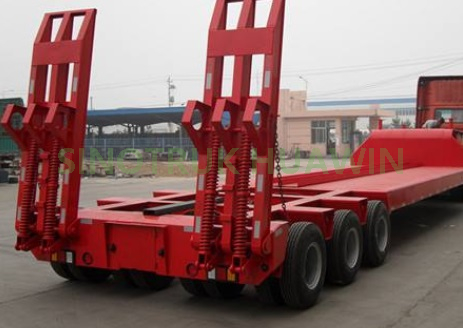

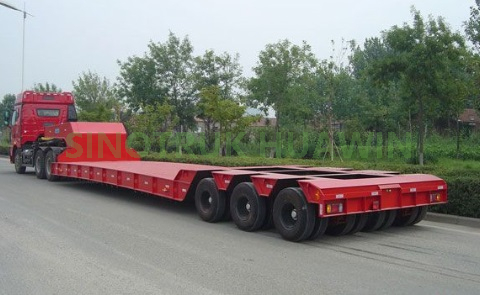

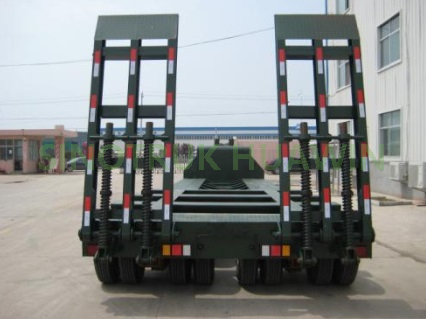

Photo for   reference. Final products can be made according to exact requirements

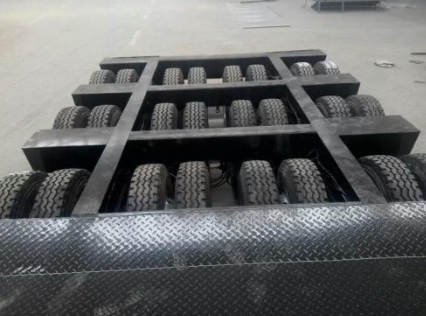

I Beam& Chassis

Heavy duty and extra   durability designed I beam; Opting for high tensile steel Q345B, welded by   automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height   500mm, Bottom Flange 20mm,width 140mm.


3 lines & 6 axles


Heavy duty mechanical   suspension


5mm checker plate

King Pin

JOST brand 2” Bolt-in   King Pin

Landing Gear

JOST brand Two-speed,   manual operating, heavy duty landing gear


8.25R20 tire, in total   25 pieces, including one spare tire


Mechanical ramp with   spring

Spare Tire

One set of spare tire   including a carrier

Braking System

WABCO RE 4 relay valve; T30/30+T30   Spring brake chamber; 40L air tanks


Complete Chassis sand blasting to clean rust, 1 coat of   anticorrosive prime, 2 coats of final paint


One standard tool box
