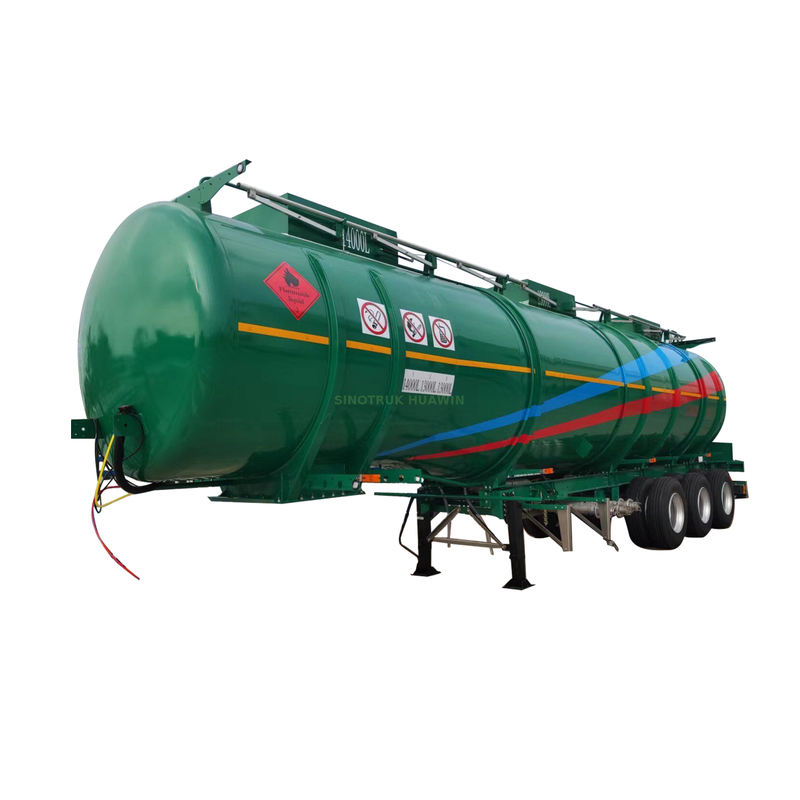

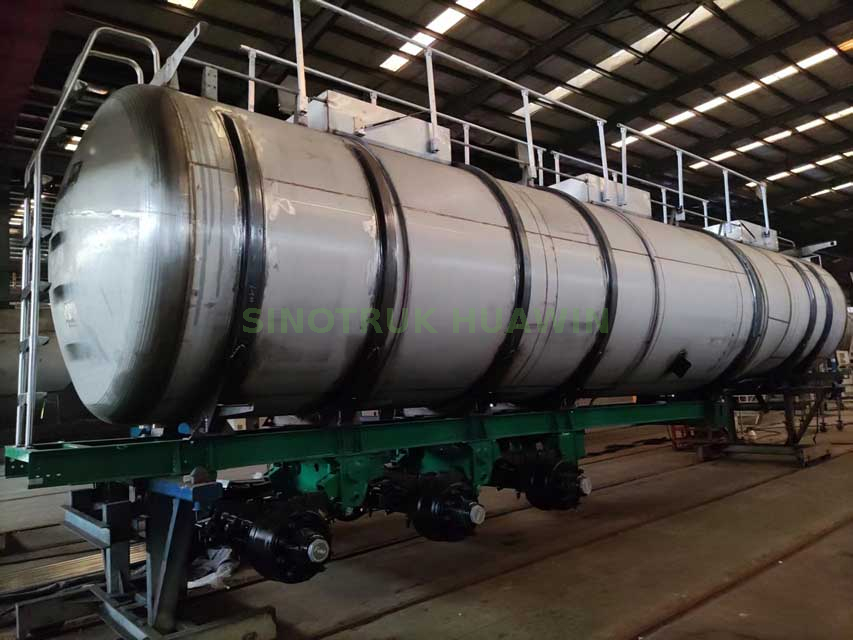

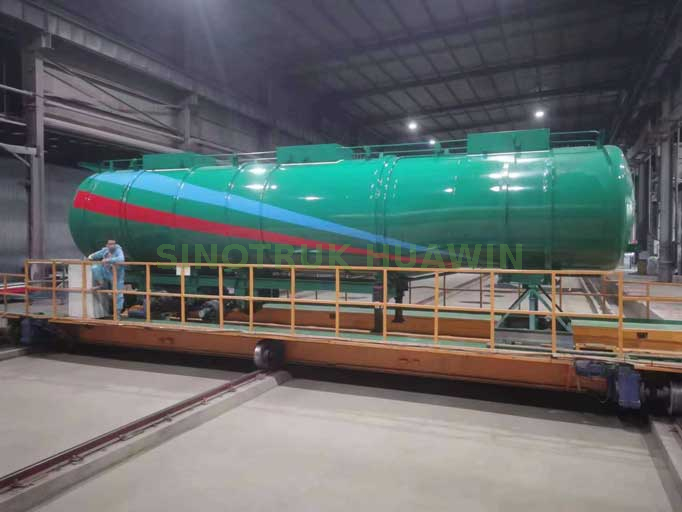

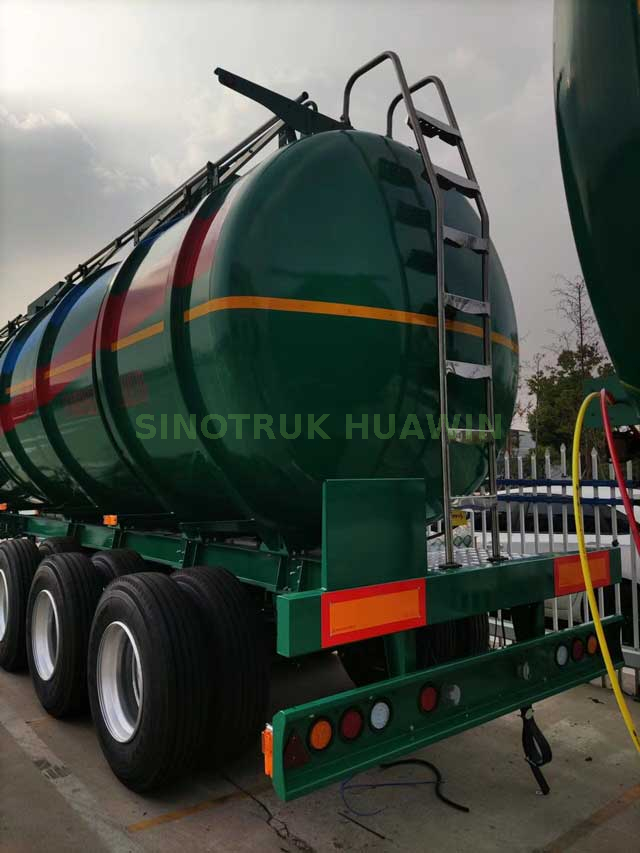

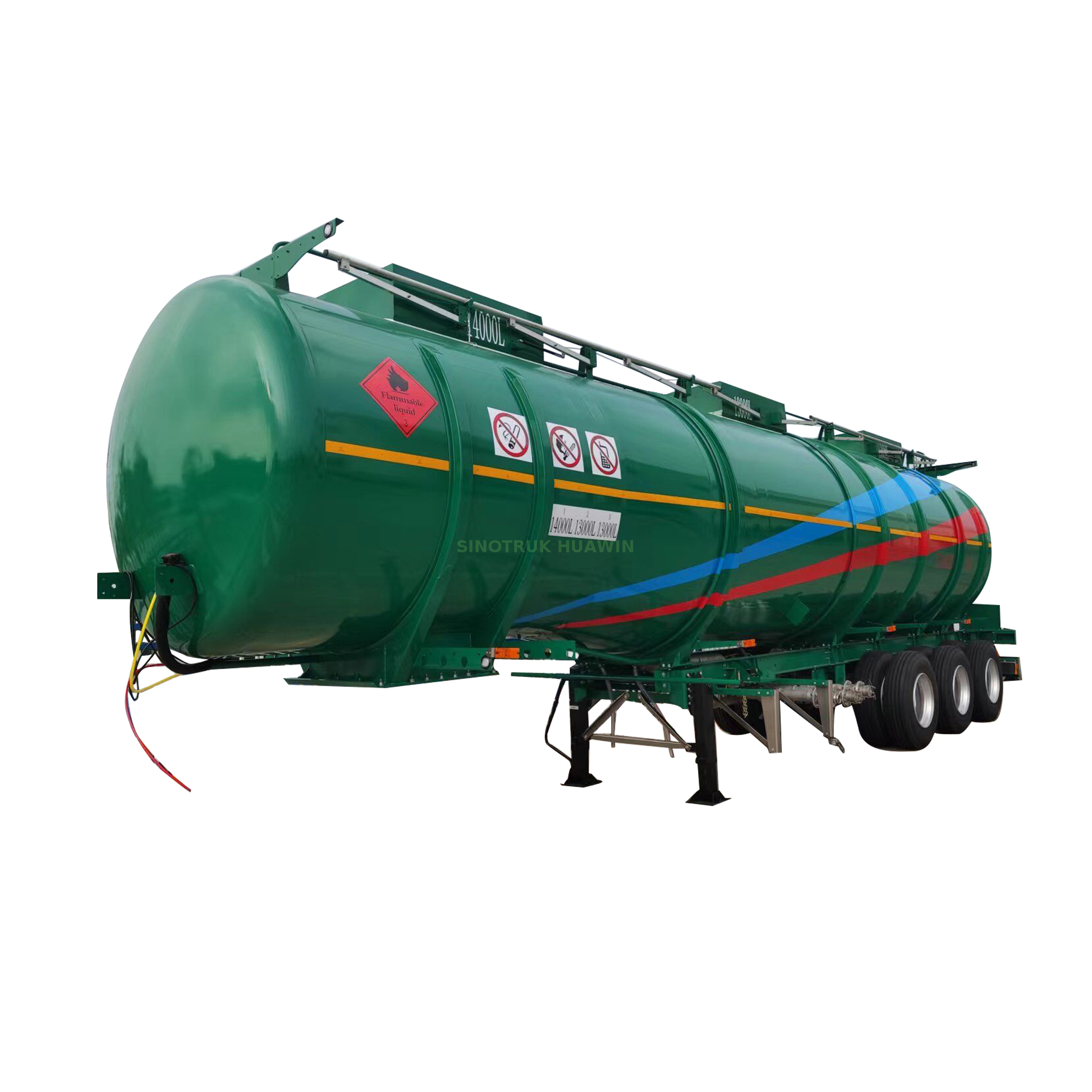

SINOTRUK 3-axle Stainless Tanker Semi-trailer (40CBM)
Main Dimensions | |||
Overall Length | 11200mm |
| |
Overall Height | 2800mm | ||
Tare Weight | 11000KGS | ||

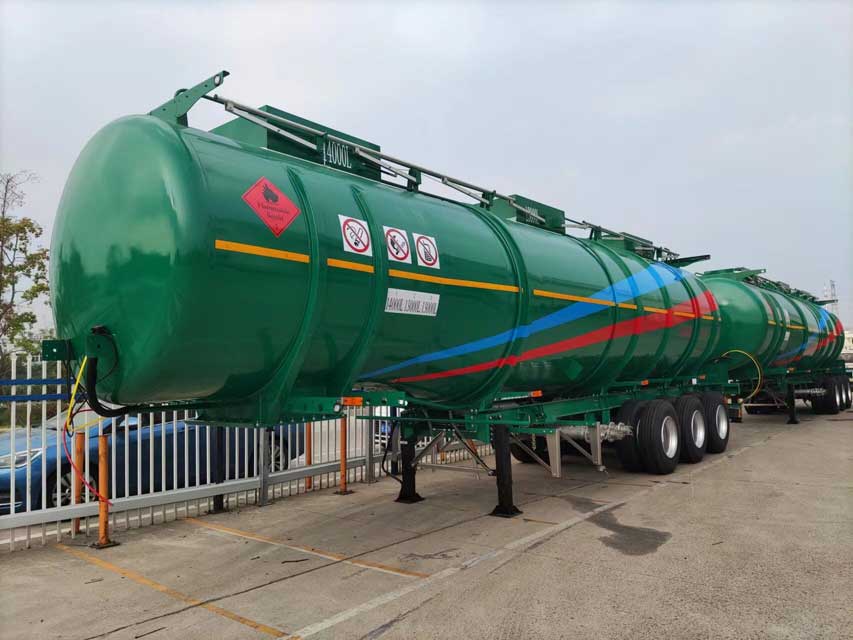

Photo only for reference, final product can be made according to exact requirements | |||
Tank Body | |||
Shape | Mono block Cylinder | ||
Total Volume（m3） | 40 CBM | ||
Tanker Body Material | 5mm-6mm stainless steel / 304 or 316L stainless | ||
End plate | 6mm stainless sheet/304 or 316L stainless | ||
Manhole cover | Aluminum alloy API manhole cover, ∮500mm, 2 sets with 2 breather valve | ||
Bottom Valve | 2 sets of Aluminum API Pneumatic Bottom Valve | ||
Discharging valve | 2 sets ∮100mm discharging valves | ||
Discharging Pipe | 4”rubber hose, 2 pcs | ||
Chassis | |||
Main Beams | Special design I beam, connected by bolts and nuts with tanker body, removable from tanker body for separate transportation; | ||
Axle | 3 axles | ||
BPW/ FUWA/HJ/L1 Brand 13 ton | |||
Suspension | German design heavy duty mechanical suspension | ||
Leaf Spring | 13-pcs | ||
King Pin | JOST brand 2” bolt-in king pin | ||
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | ||
Wheel rim | 9.0- 22.5 wheel rim, 13 pieces | ||
Tire | 12R22.5 tubeless tire with one spare tire, 13 pieces | ||
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box | ||
