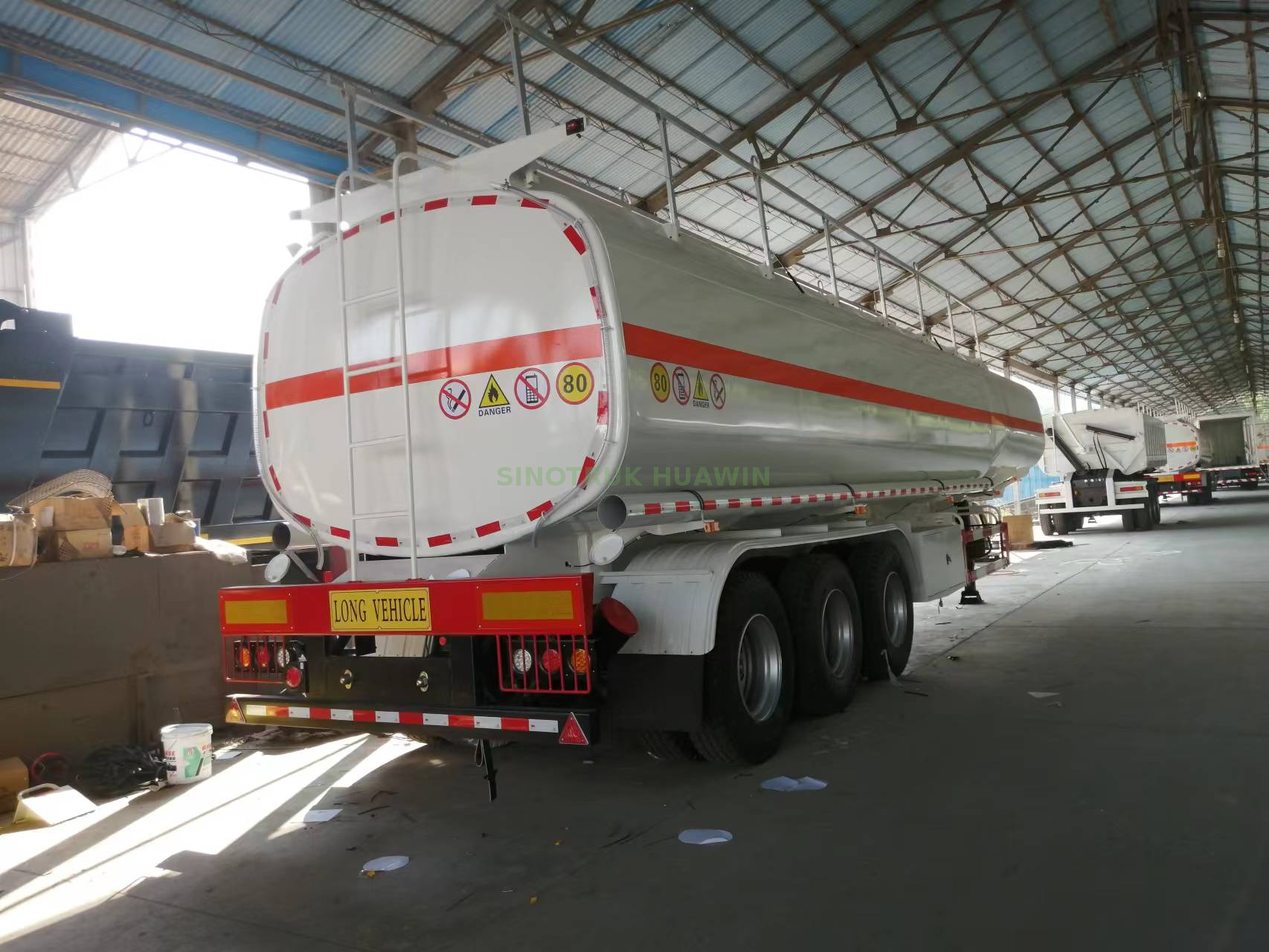

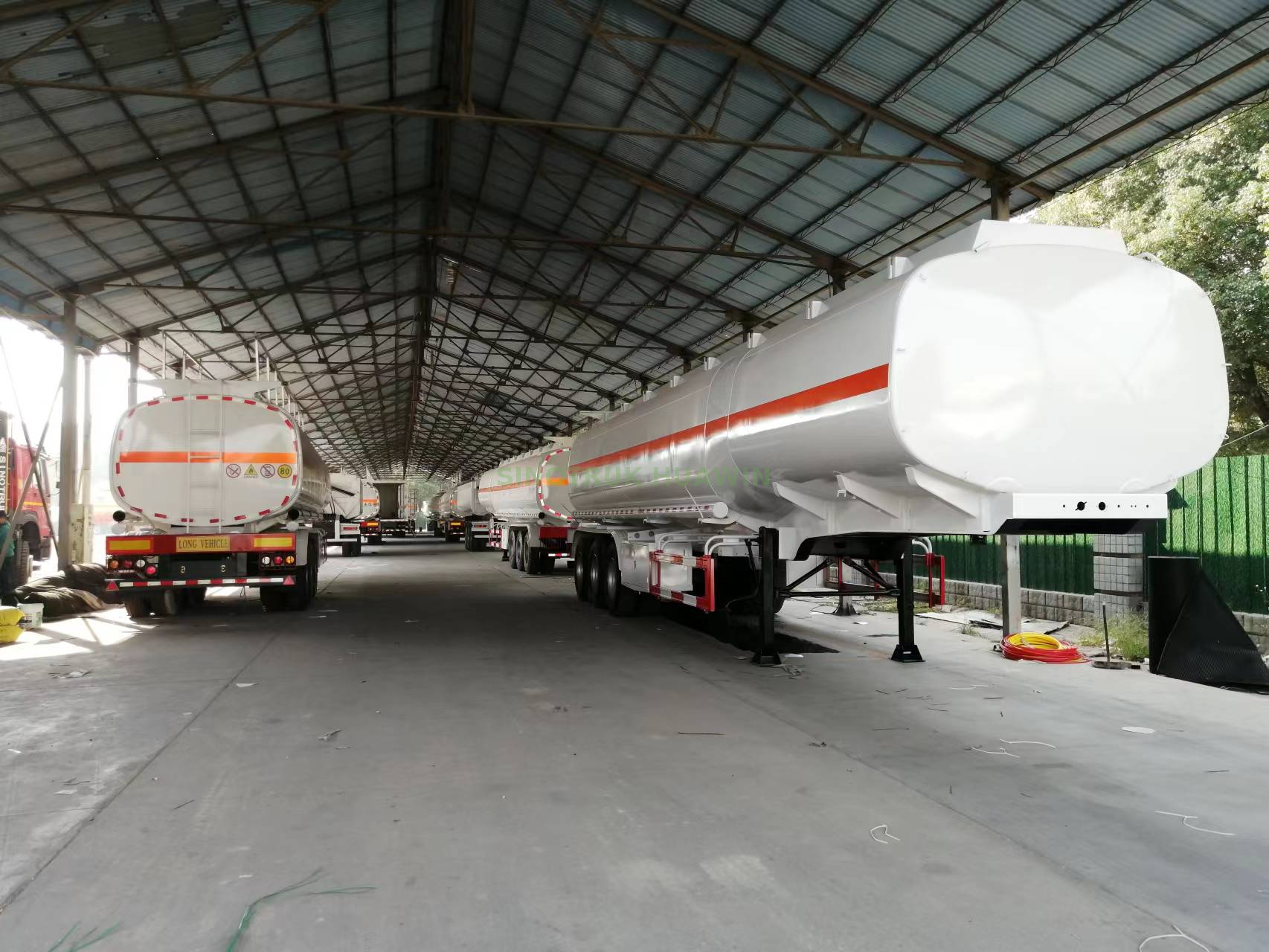

SINOTRUK 3 axle oil tanker semi trailer (45CBM)
Main Dimensions | |||
Overall Length | 12850mm |
| |
Overall Height | 3330mm | ||
Tare Weight | 11850KGS | ||
Loading Capacity | 45m3 | ||

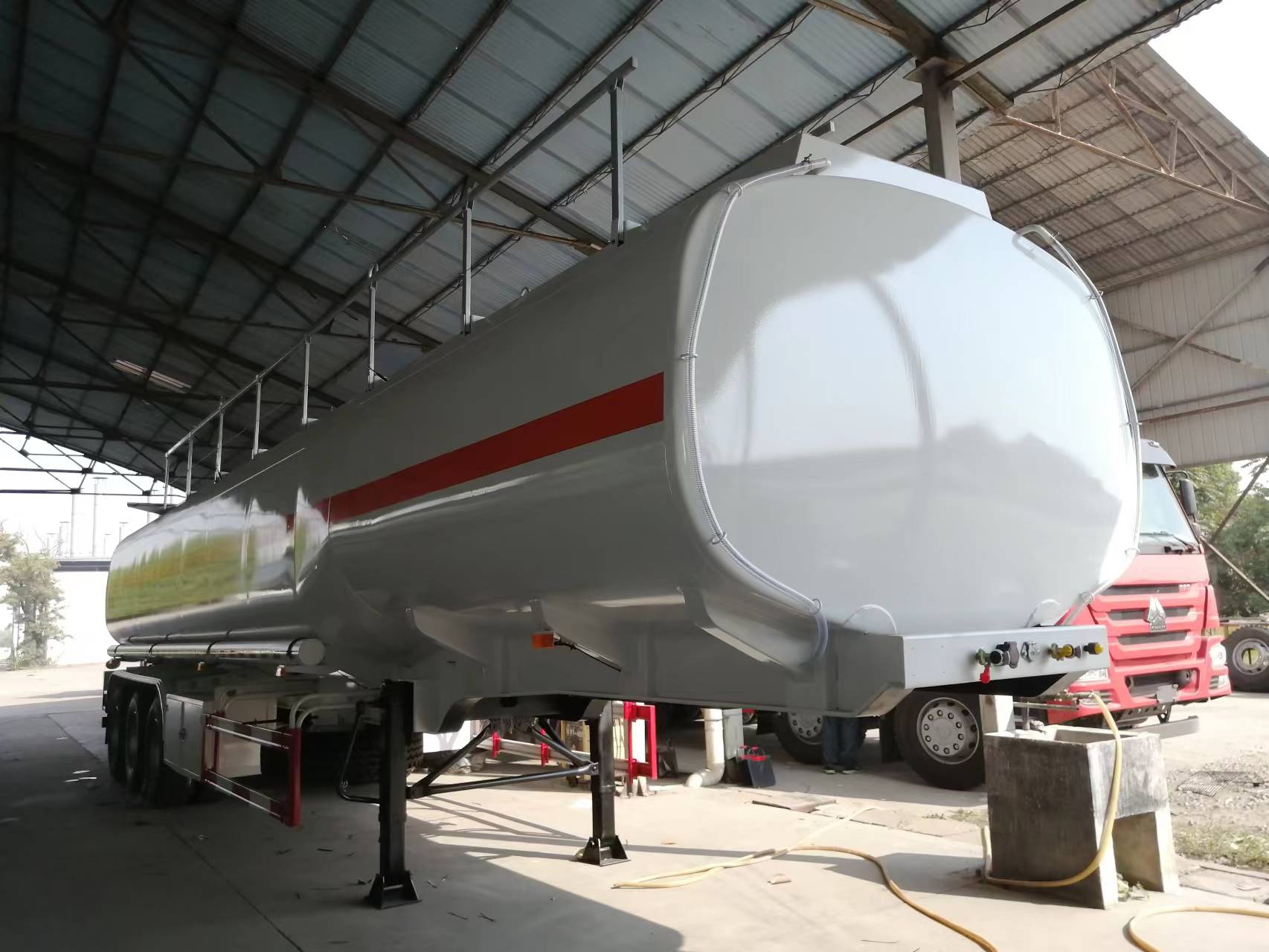

Photo only for reference, final product can be made according to exact requirements | |||
Tank Body | |||
Total Volume（m3） | 45CBM | ||
Compartment | 5 compartments | ||
Tanker Body Material | 5mm steel / Q235 high tensile strength steel | ||
End plate | 6mm steel sheet/Q235 high tensile strength steel | ||
Manhole cover | 5pcs, Aluminum alloy API manhole cover, | ||
Bottom Valve | 5pcs, Aluminum API pneumatic control Bottom Valve | ||
Discharging valve | 5pcs, 3 inches discharging valves | ||
Discharging Pipe | 4”rubber hose, 2 pcs X 6m | ||
Chassis | |||
Main Beams | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes | ||
Axle | 3 axles | ||
FUWA Brand 13 ton | |||
Landing Gear | JOST brand C200 24T, heavy duty landing gear | ||
King Pin | JOST brand 3.5” bolt-in king pin | ||
Suspension | German design heavy duty mechanical suspension with leaf spring | ||
Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. | ||
Wheel rim | 9.0-22.5 wheel rim, 13 pieces | ||
Tire | 315/80R22.5-13 tubeless ire with one spare tire, 13 pieces | ||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | ||
Accessories | One standard tool box, aluminum hand rill on the top | ||
