Sinotruk

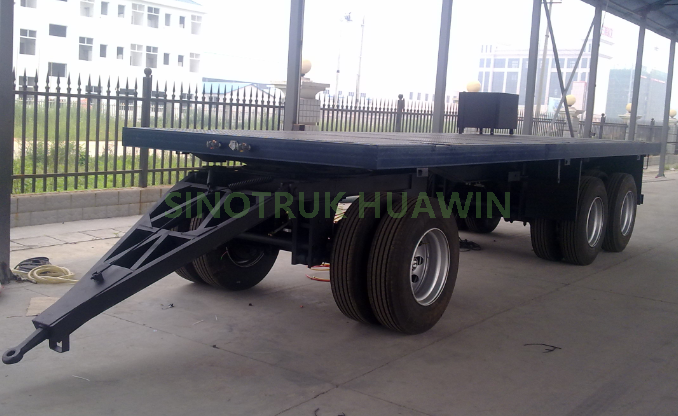

SINOTRUK 30FT 3 Axles Flatbed Trailer
SPECIFICATIONS | |
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
Axle | 3 axles |
BPW Germany Brand, 13 ton | |
Suspension | Heavy duty mechanical suspension |
Floor | 3mm checker plate |
Leaf Spring | 13 piece Leaf spring |
Towing ring | 2” |
Wheel Rim | 9.0-22.5 wheel rim 13 pieces |
Tire | 12R22.5 tire with one spare tire. 13 pieces |
Twist Lock | 4 nos. of ISO twist lock for 30ft container |
Spare Tire | One set of spare tire including a carrier |
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
SINOTRUK 30FT 3 Axles Flatbed Trailer
SPECIFICATIONS | |
I Beam & Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm. |
Axle | 3 axles |
BPW Germany Brand, 13 ton | |
Suspension | Heavy duty mechanical suspension |
Floor | 3mm checker plate |
Leaf Spring | 13 piece Leaf spring |
Towing ring | 2” |
Wheel Rim | 9.0-22.5 wheel rim 13 pieces |
Tire | 12R22.5 tire with one spare tire. 13 pieces |
Twist Lock | 4 nos. of ISO twist lock for 30ft container |
Spare Tire | One set of spare tire including a carrier |
Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Accessories | One standard tool box |
Remarks:
1. The performance parameters in the table are theoretical reference data under the condition of driving on the good road surface, the actual data varies from actual working conditions and drivers’ driving habits.
2. For sake of product improvement and technical promotion, the vehicle parameters are subject to change without prior notice.
